ASRock Z790 PG-ITX/TB4 Motherboard Review

Testing – Storage, USB, & Power

To test M.2 and USB speeds we make use of CrystalDiskMark hard drive benchmarking tool. For our M.2 drive we are using the Lexar NM800 Pro.

asrock z790 pg itx tb4 nvme

For USB testing we have the Lexar SL660 BLAZE, which is a USB 3.2 gen 2×2 drive. We used the USB 3.2 Gen 2×2 header on the board.

asrock z790 pg itx tb4 usb3

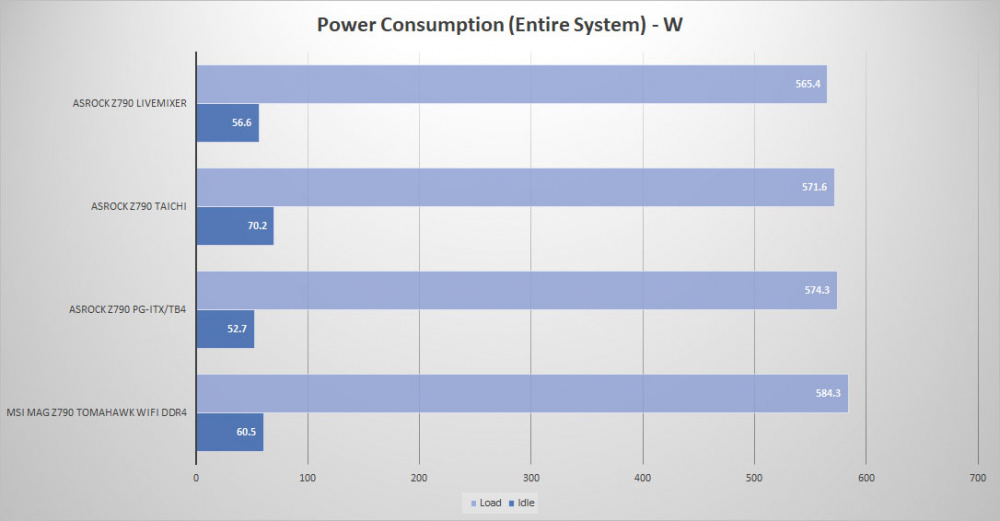

Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 10 desktop and the load test is taken while running AIDA64’s system stability test with GPU’s enabled. Remember these values are for the entire system.

asrock z790 pgitx tb4 power
