BIOSTAR Z590GTA Motherboard Review

Testing – SATA, USB, & Power

To test SATA, M.2, and USB speeds we make use of CrystalDiskMark hard drive benchmarking tool. First up is our SATA drive which is the Samsung 870 EVO.

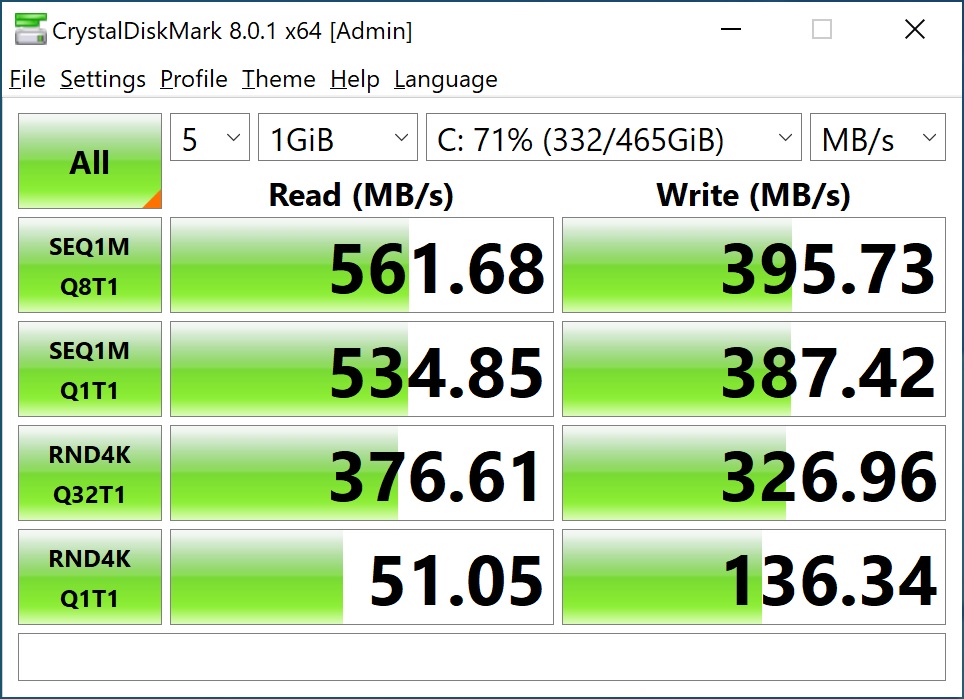

biostar z590 gta ssd

For M.2 testing we will using the PCI-Express 4.0 (top) slot. We use the Samsung 980 Pro drive.

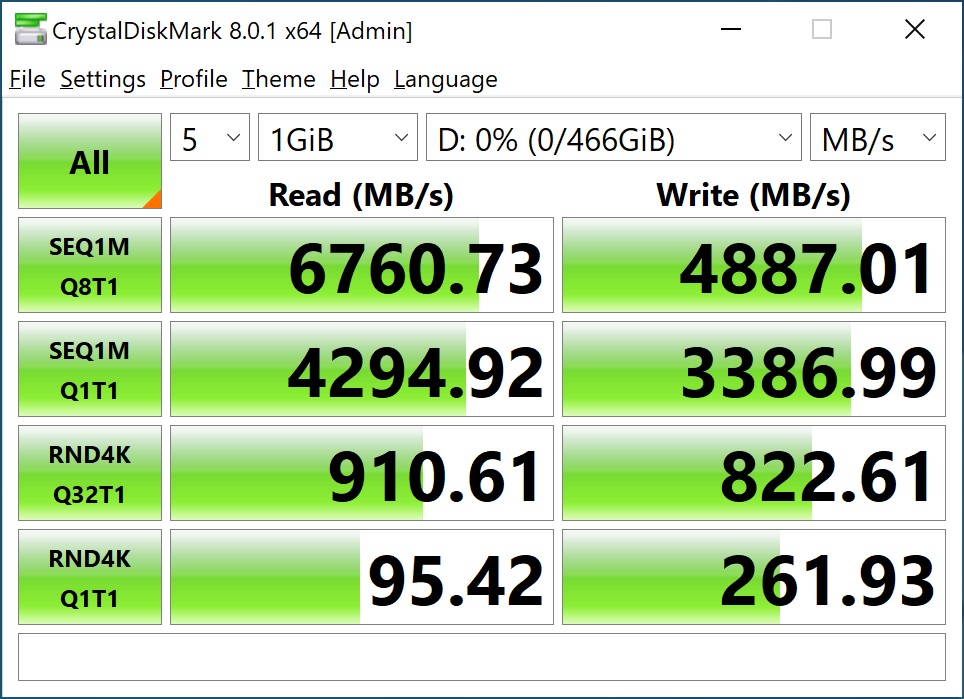

biostar z590 gta nvme

For USB testing we have the ORICO M.2 Solid State Drive Enclosure, which is USB 3.2 gen 2 (1000 MB/s). We used the Type-C connection on the board.

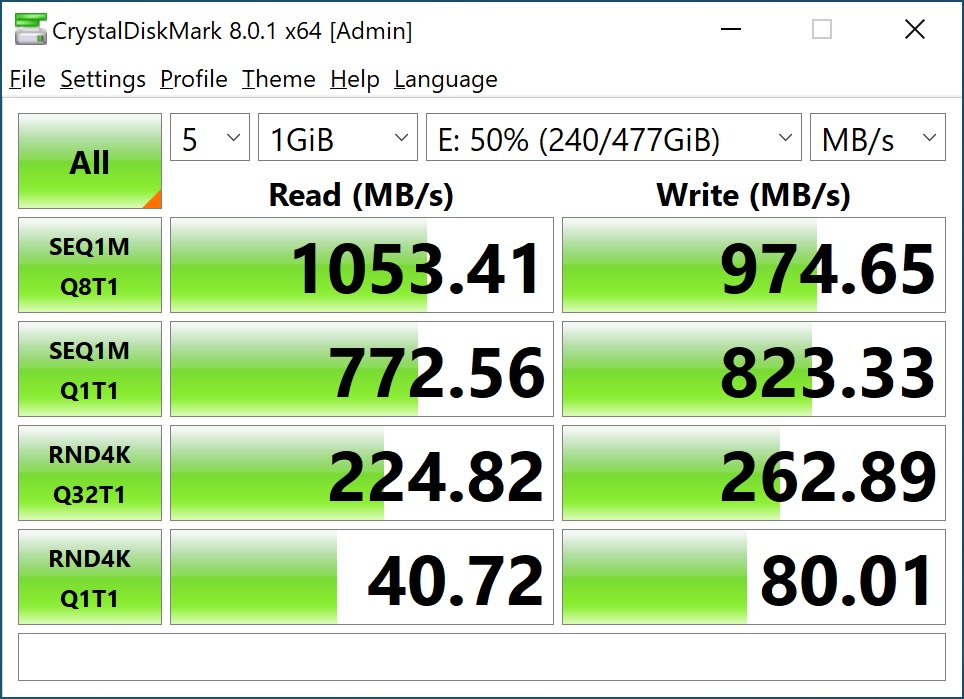

biostar z590 gta usb

Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 10 desktop and the load test is taken while running AIDA64’s system stability test with GPU’s enabled. Remember these values are for the entire system.

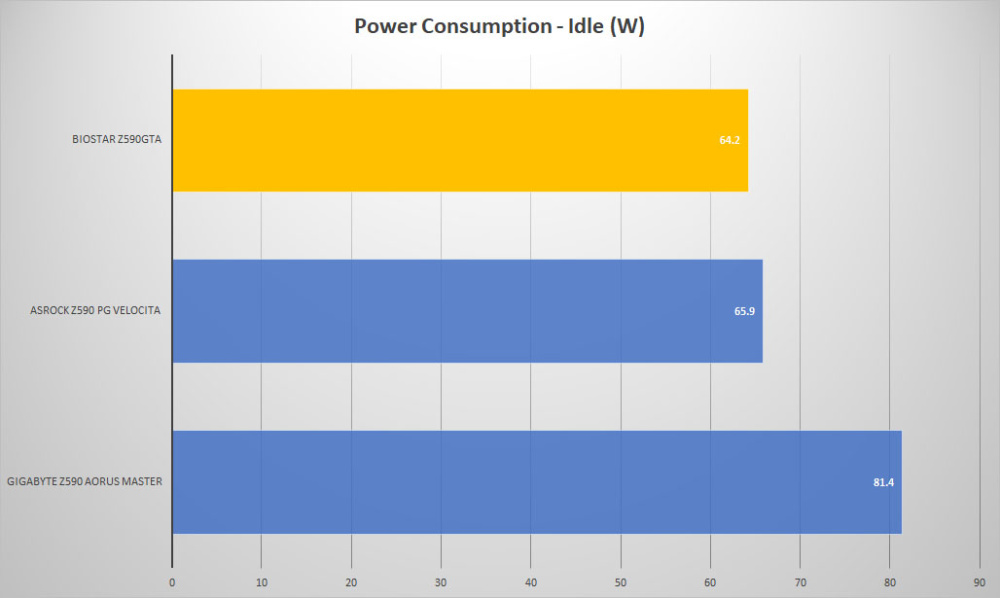

biostar z590gta power idle

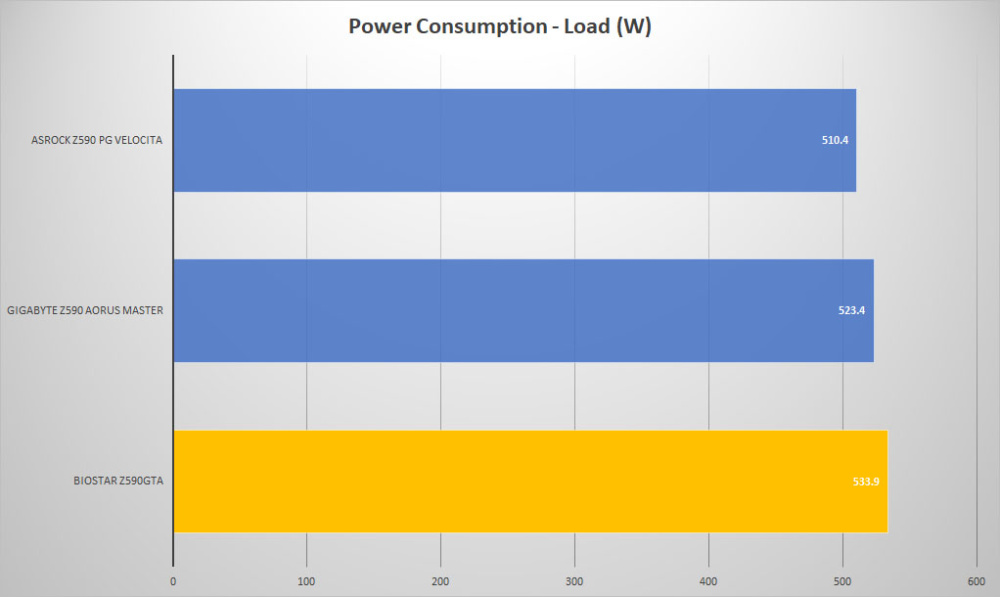

biostar z590gta power load
