Case Mod Friday: The RecoilMachine

Project Name: The RecoilMachine

5a7fa66c_IMG_3103f

About this mod / project:
Having been inspired by a few other wall mounted PCs, I decided to build my own. I used my existing hardware, but separated each component out and mounted them on a Perspex/Plexiglass plate. Each plate is backlit with LED’s and mounted on a piece of framed and vinyl-clad hardboard. 2 months, around 20 individual shipments of components from three different continents, and countless hours of hard work later, ‘The RecoilMachine’ is ready and hanging on my wall.

Photos:

4d3df3cc_IMG_3121f 5a7fa66c_IMG_3103f cd0a873e_IMG_3122f cf350f89_IMG_3100f e64e0405_IMG_3109f eccd6ad0_IMG_3098f

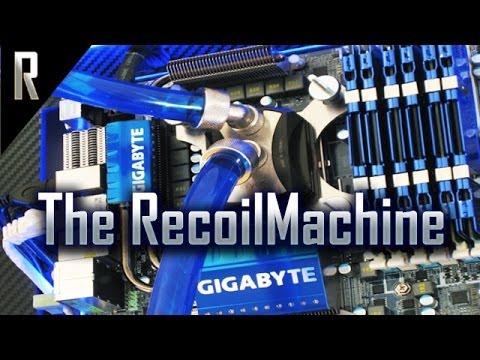

Video:

Hardware
– Gigabyte EX58-UDP5 (Rev 1.0)
– Intel Core i7 920, 2.66 GHz
– Asus GTX 590 1.5GB
– Samsung 250GB SSD 840 EVO SSD
– Western Digital 1TB Caviar Black Hard Drive
– Seagate 1TB Hard drive

Cooling
– Aquacomputer Cuplex Kryos Delrin CPU water block
– Alphacool Laing D5 Vario Pump
– Monsoon Series Two Dual 5.25in Reservoir
– Alphacool NexXxoS NVXP NV 590 Series GPU water block
– Phobya G-Silent 12 1200rpm Fans, Black Silent Edition
– Black Ice GTS-Lite 360 Radiator
– Masterkleer Tubing PVC 19/13mm
– 19/13mm Compression Fitting 45° Rotary G1/4
– 19/13mm Compression Fitting 90° Rotary G1/4

Custom Mods
– Scratch-made wall-mopunt
– Each component is on its own custom plate
– Each plate is backlit with LEDs
– Custom watercooling loop

Build Log: Overclock.net

Builder: gabrielbolea
