Cooler Master MasterLiquid 360 Atmos Liquid CPU Cooler Review

MasterLiquid 360 Atmos MasterLiquid 360 Atmos

Here at ThinkComputers we are no strangers to Cooler Master and their products, especially when it comes to their all-in-one liquid coolers. So here we are again with a new AIO from Cooler Master, the MasterLiquid 360 Atmos. No, there aren’t any surround sound speakers found on this cooler, but there are some pretty cool features included with the 360 Atmos, like an included lighting controller, SickleFlow Edge fans, and an updated pump housing design that steps up the aesthetics game quite nicely. With a few other changes here and there, the Cooler Master MasterLiquid 360 Atmos is poised to be the next generation in liquid cooling, so follow along as we take a closer look!

Special thanks to Cooler Master for providing the MasterLiquid 360 Atmos review sample!

Specifications of the Cooler Master MasterLiquid 360 Atmos

Product Number
MLX-D36M-A25PZ-R1
Exterior Color
Black
CPU Socket
LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4
Radiator Material
Aluminum
Radiator Dimensions
394 X 119.6 X 27.2MM / 15.5 X 4.7 X 1.1 inches
Pump Dimensions
84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch
Pump MTTF
210,000 Hours
Pump Noise Level
< 12 dBA (Max)
Power Connector
4-Pin
Pump Rated Voltage
12 VDC
Pump Power Consumption
3.84 W
Fan Dimensions (L x W x H)
120 X 120 X 25 MM / 4.7 X 4.7 X 1 inches
Fan Quantity
3 PCS
Fan LED Type
ARGB
Fan Speed
690-2500 RPM ± 10%
Fan Airflow
70.7 CFM (Max)
Fan Noise Level
27.2 dBA
Fan Pressure
3.61 mmH₂O (Max)
Fan Bearing Type
Loop Dynamic Bearing
Fan Life Expectancy
>160,000 Hours
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12VDC
Fan Rated Current
0.2A
Fan Safety Current
0.3A
Warranty
5 years
Series
MasterLiquid Lite
Cooler Type
Liquid Cooler
Radiator Size
360mm

Packaging of the Cooler Master MasterLiquid 360 Atmos

Cooler Master is presenting this new cooler in a newly designed box layout, with the 360 Atmos housed in a rectangular cardboard box with a sleeve around it that features a product image and naming information on the top/front. This design gives potential buyers a good idea of what is to be expected visually from the cooler, and also highlights a few of the cooler’s features like ARGB lighting on the fans and pump housing.

MasterLiquid 360 Atmos

The back of the box provides specification information, as well as a small list of features. Unfortunately the tiny font size and color make this information hard to read, which kind of negates the point of having this information on the back anyways.

MasterLiquid 360 Atmos

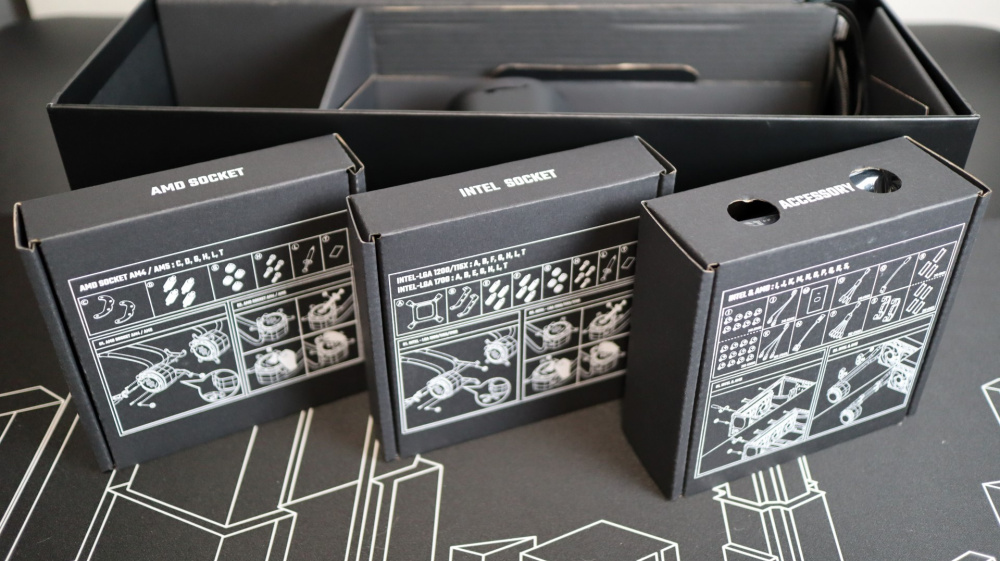

Included with the MasterLiquid 360 Atmos is a variety of mounting hardware for multiple AMD and Intel sockets and mounting types, as well as warranty information and a card with a QR code to download the manual that also serves as the thermal paste spreader. Also included is a Y-splitter for the three included 120mm ARGB fans, as well as a tube of Cooler Master’s Cryofuze thermal paste.

MasterLiquid 360 Atmos

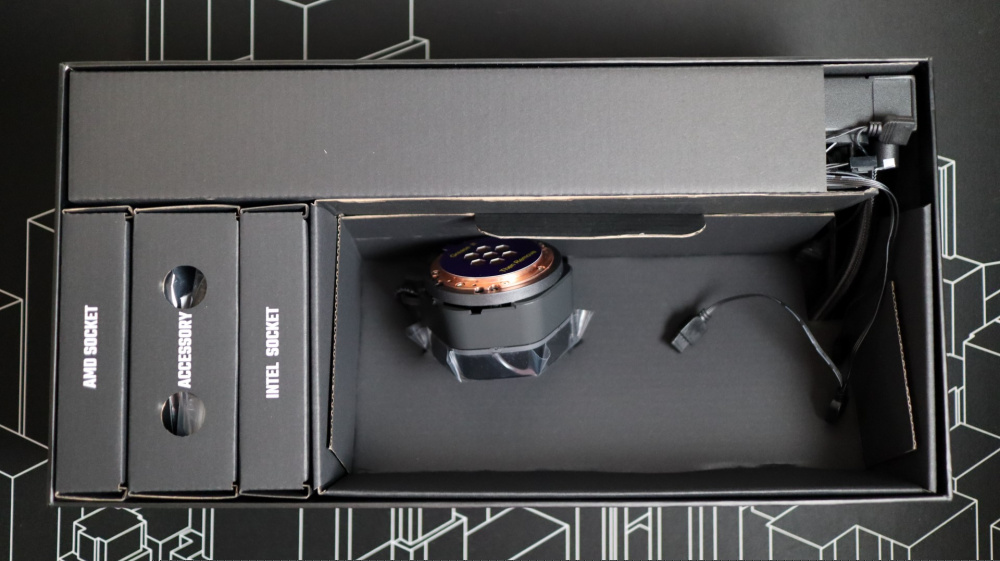

I really liked the new packaging that Cooler Master used with this cooler, but I was pretty disappointed with how unprotected the pump and waterblock were – there wasn’t anything keeping it firmly in place.

MasterLiquid 360 Atmos
