EK Water Blocks, premium computer liquid cooling gear manufacturer from Europe, is releasing an Intel LGA1151 socket based monoblock belonging to the Quantum Line. The EK-Momentum Strix Z390-I is tailor-made for the ROG Strix Z390-I motherboard. The mini-ITX form factor often suffers worse airflow due to less space, and having less space on the motherboard means less VRM components can be built into it.
Having liquid cooling over the VRM area in mini-ITX enclosures is extremely beneficial for the motherboard lifespan and ability to get high overclocks. The addressable, digital RGB LED in the monoblock is compatible with ASUS AURA RGB control, thus offering a full lighting customization experience for every single diode at any given time.
EK-Momentum ROG Strix Z390-I D-RGB

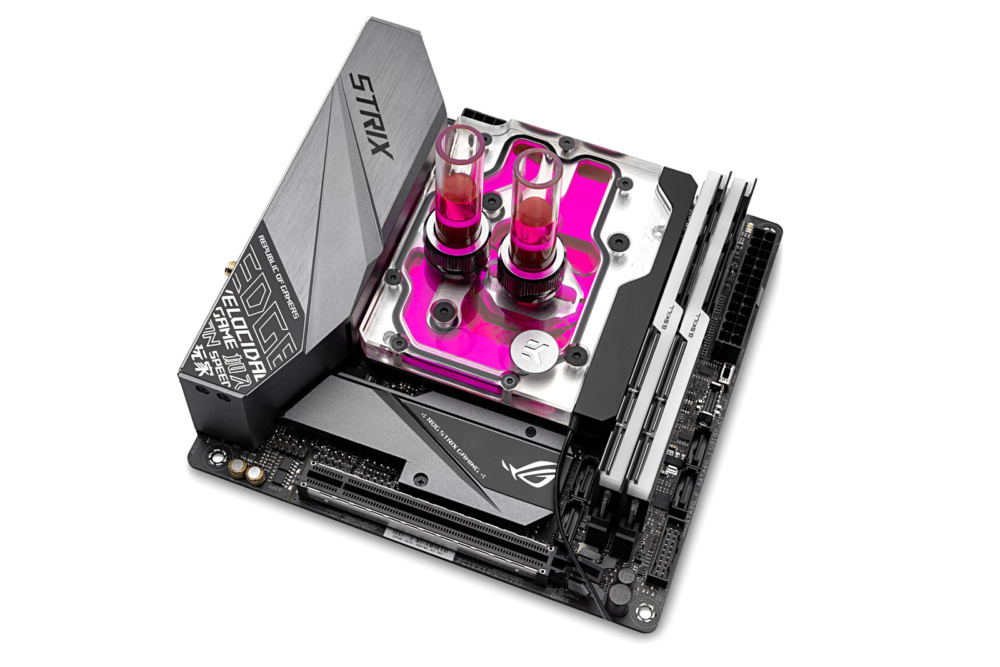

This is a complete all-in-one (CPU and motherboard) liquid cooling solution for motherboards that supports the 8th and 9th generation of Intel Core processors. Motherboards that are compatible with this monoblock are the following: ROG Strix Z390-I.
Designed and engineered in cooperation with ASUS , this monoblock uses the latest generation of EK cooling engine used on the Quantum lineup to ensure the best possible CPU cooling while not reducing flow to other components. This water block directly cools the LGA1151 socket type CPU, as well as the voltage regulation (MOSFET) module. Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, EK-Momentum ROG Strix Z390-I D-RGB features high flow design and it can be easily used with the system using a weaker water pump or lower pump speed settings as well. The Momentum monoblock also comes with sophisticated D-RGB (addressable) lightning which connects to a standard 3-pin 5V D-RGB header.

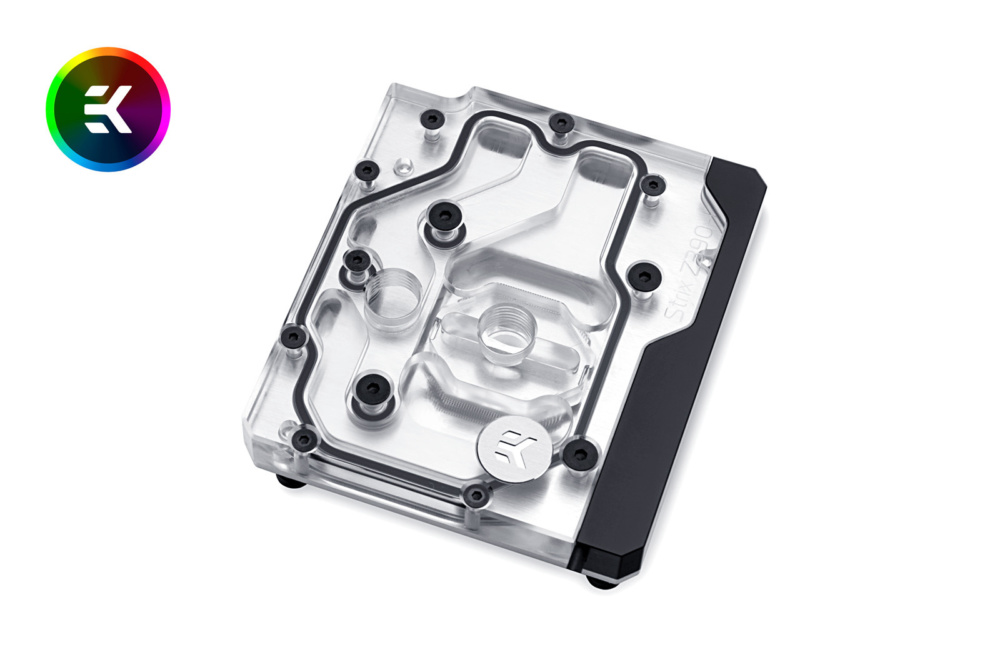

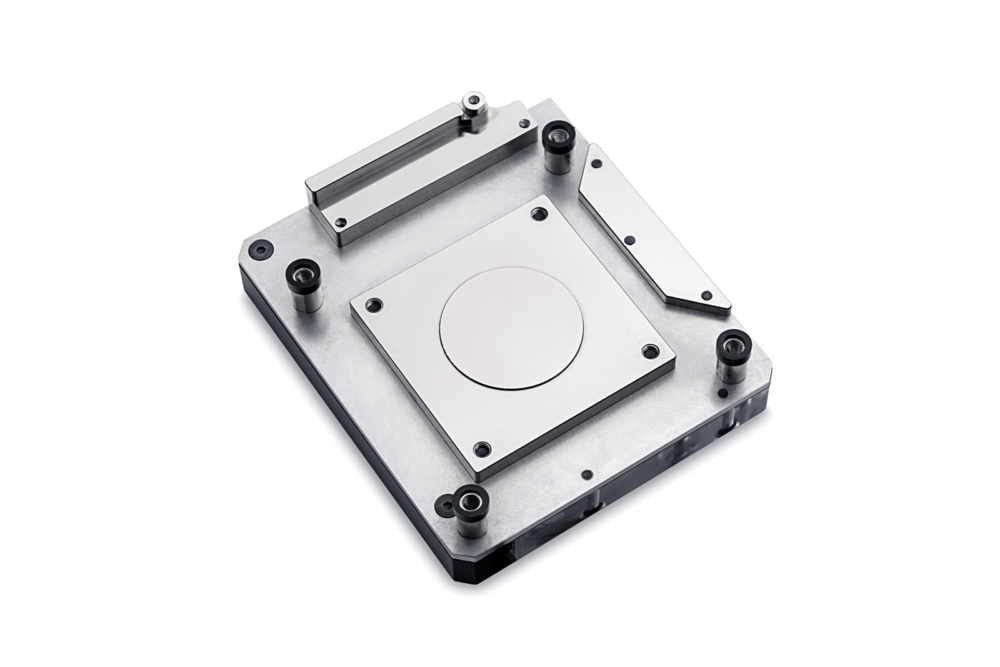

This Z390 monoblock also comes with a special cold plate which ensures that the monoblock has better mechanical contact with the IHS of 8th and 9th gen Intel 1151 socket based processors by avoiding raised corners. The result is better thermal transfer. The base of the monoblock is made of nickel-plated electrolytic copper while the top is made of quality acrylic glass material. The nickel plated brass screw-in standoffs are pre-installed and allow for easy installation.
A Digital (addressable) 3-pin 5V D-RGB LED strip is installed in the monoblock that connects to the motherboard’s 3-pin LED header or it can be connected to any other supported 5V 3-pin LED controller. This product is compatible with ASUS Aura RGB control software. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the RGB header.
Availability and Pricing
EK-Momentum ROG Strix Z390-I D-RGB – Plexi monoblock is made in Slovenia, Europe and is readily available for purchase through the EK Webshop and Partner Reseller Network for €141.90.
