MSI GeForce GTX 780 LIGHTNING Performance and Retail Pictures Exposed

MSI is expected to release their top-tier GeForce GTX 780 Lightning card tomorrow. This will be one of the most powerful GeForce GTX 780 designs out there. While the card launches tomorrow CoolPC has a preview up that shows the performance of the card and quite a lot of photos as well!

What you see above is a video unboxing and overview of the card!

MSI GeForce GTX 780 LIGHTNING

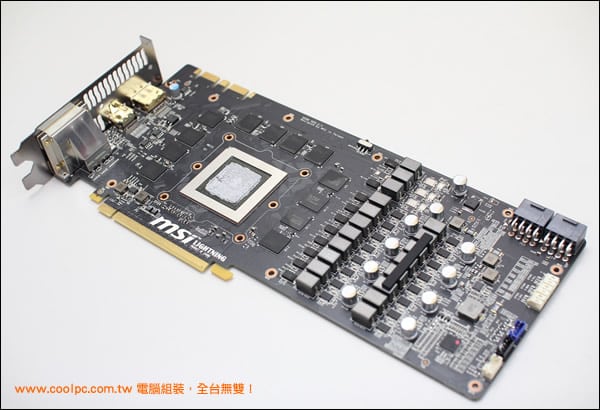

The card will make use of the GK110-300-A2 GPU which has 2304 Cuda cores, 192 TMUs and 48 ROPs. The card has overclocked speeds of 980 MHz stock and 1033 MHz boost with the memory running at 6 GHz effective. The PWM on the card is a 16+3+1 phase VRM along with the DrMOS 4 MOSFET design.

MSI GeForce GTX 780 LIGHTNING

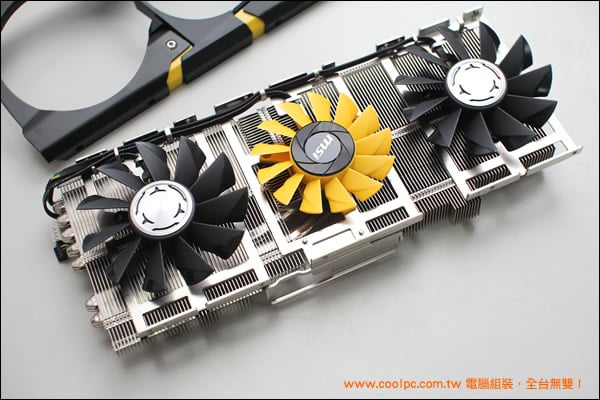

The TriFrozr cooling solution is first made up of three fans. Two of which are black and one that is yellow. There is a black shroud with yellow lightning accents. Beneath that is a massive aluminum fin array. From the photos it looks like there are seven heatpipes. The cooler is designed so the center yellow fan dissipates heat off the PWM and the other two fans cool the GPU and memory chips.

MSI GeForce GTX 780 LIGHTNING

MSI GeForce GTX 780 LIGHTNING Specifications

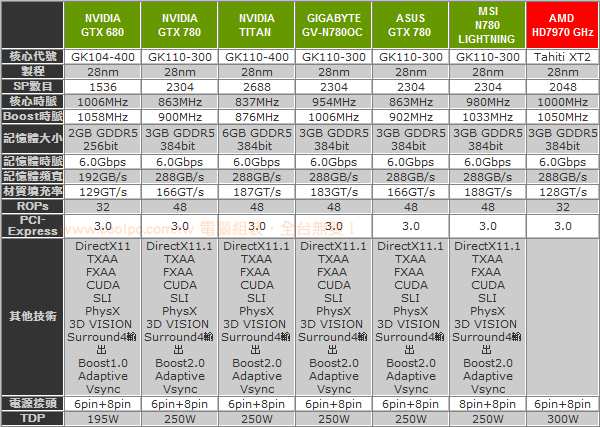

MSI-GeForce-GTX-780-Lightning_Specs

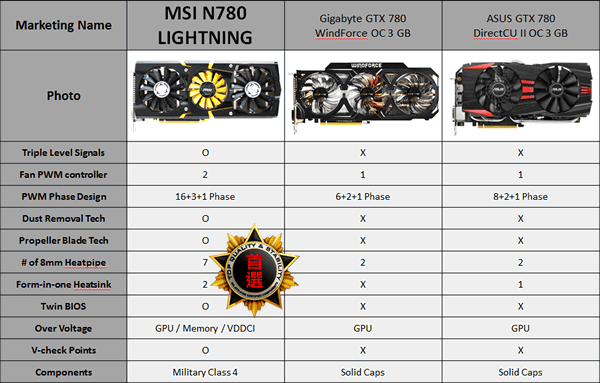

MSI-GeForce-GTX-780-Lightning_Competitors

MSI GeForce GTX 780 LIGHTNING Performance

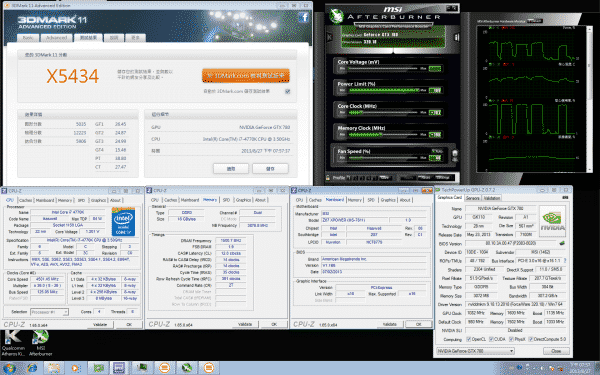

780-Lightning-3DMark-11-Extreme

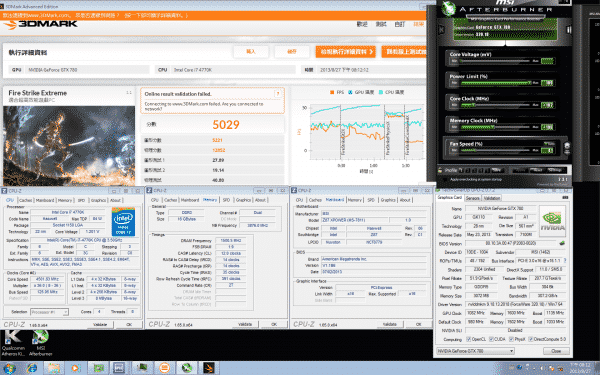

780-Lightning-3Dmark-FireStrike-Extreme

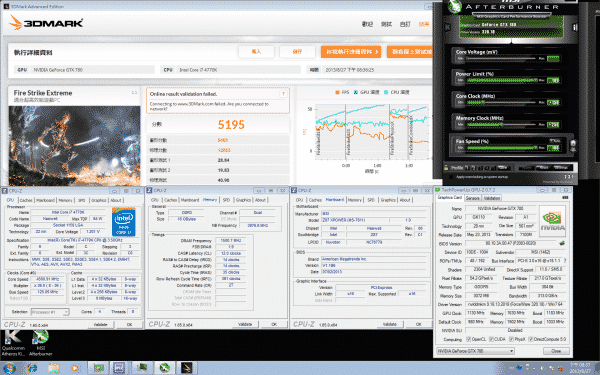

780-Lightning-3Dmark-FireStrike-Extreme-1130-MHz

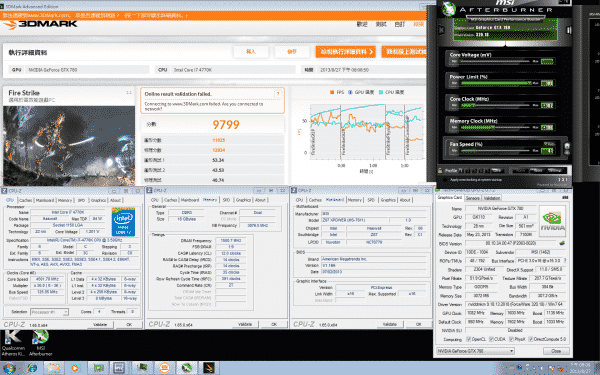

780-Lightning-3Dmark-FireStrike-Performance

MSI-GeForce-GTX-780-Lightning_Performance

MSI GeForce GTX 780 LIGHTNING PCB Photos

coolpc_msi_gtx780-37 coolpc_msi_gtx780-38 coolpc_msi_gtx780-39 coolpc_msi_gtx780-40 coolpc_msi_gtx780-41 coolpc_msi_gtx780-42 coolpc_msi_gtx780-43 coolpc_msi_gtx780-44 coolpc_msi_gtx780-45 coolpc_msi_gtx780-46 coolpc_msi_gtx780-47

MSI GeForce GTX 780 LIGHTNING Retail Photos

coolpc_msi_gtx780-02 coolpc_msi_gtx780-03 coolpc_msi_gtx780-04 coolpc_msi_gtx780-05 coolpc_msi_gtx780-06 coolpc_msi_gtx780-07 coolpc_msi_gtx780-10 coolpc_msi_gtx780-11 coolpc_msi_gtx780-12 coolpc_msi_gtx780-14 coolpc_msi_gtx780-15 coolpc_msi_gtx780-16 coolpc_msi_gtx780-17 coolpc_msi_gtx780-18 coolpc_msi_gtx780-19 coolpc_msi_gtx780-21 coolpc_msi_gtx780-22 coolpc_msi_gtx780-23 coolpc_msi_gtx780-24 coolpc_msi_gtx780-25

Images courtesy of CoolPC.
