MSI MAG Pano 100L PZ Case Overview

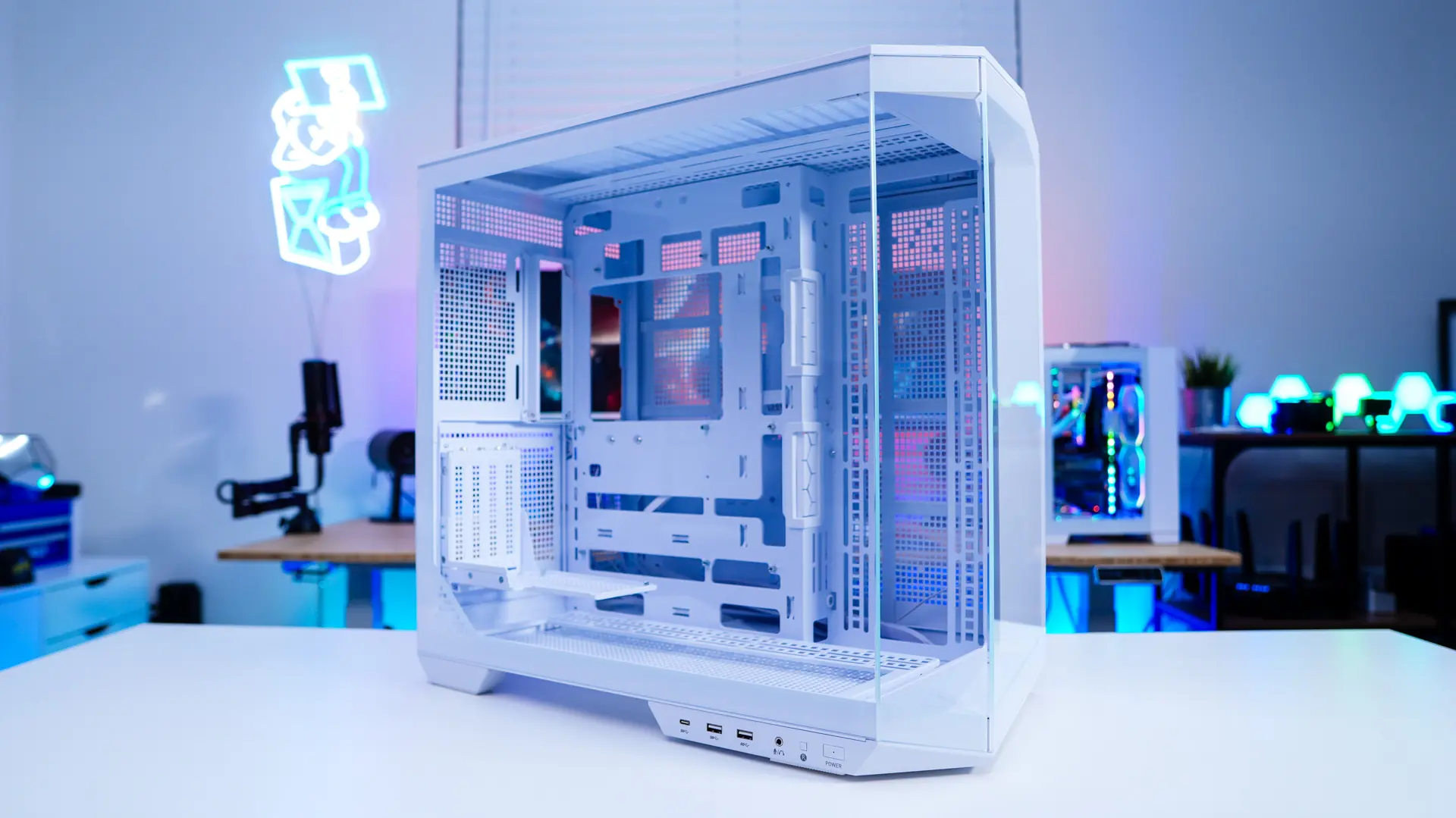

We received the white version of the MAG Pano 100L PZ Case. Currently it is available in both white and black versions. As far as size goes I would say this is a larger than normal mid-tower with official dimensions of 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches.

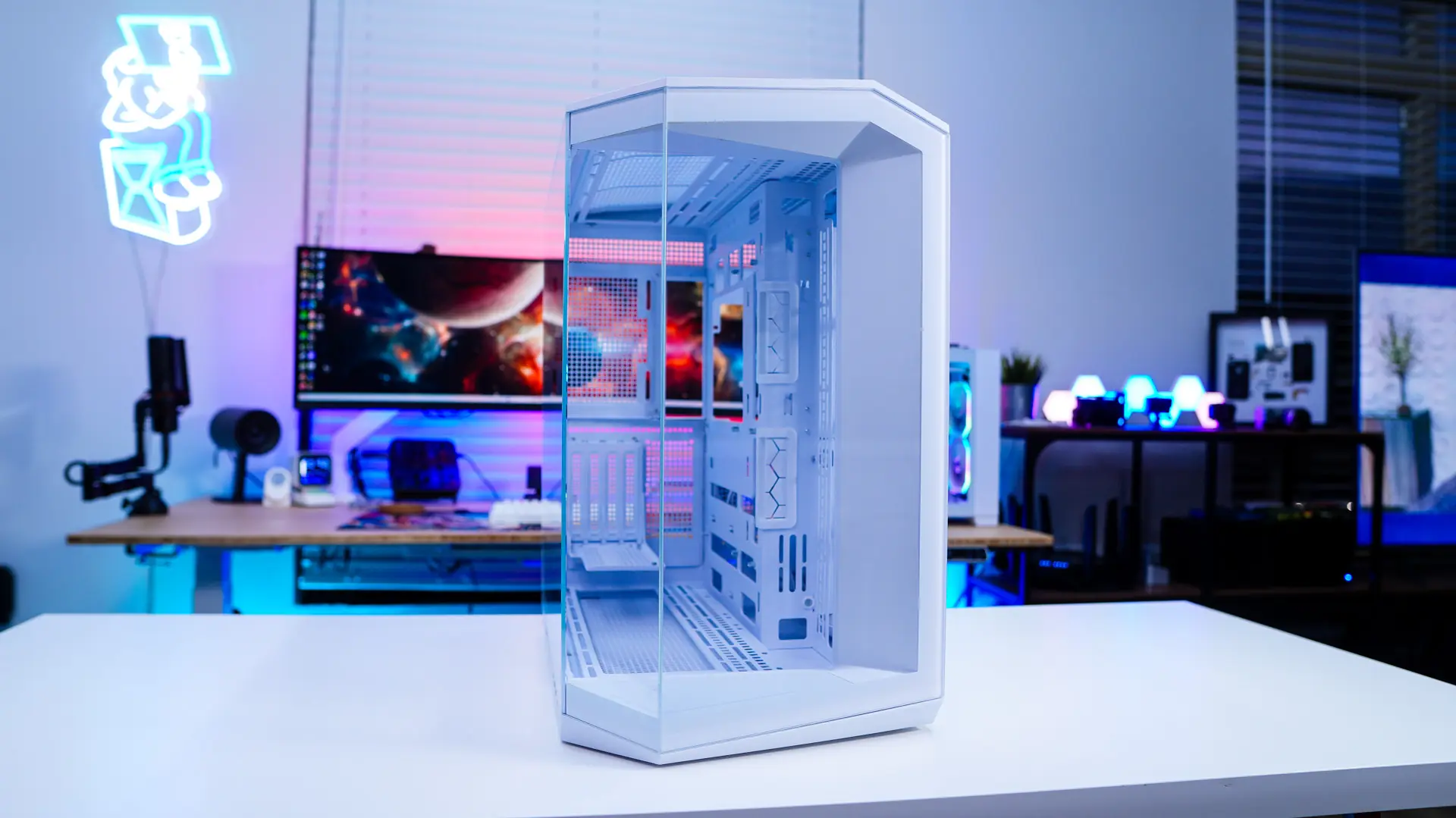

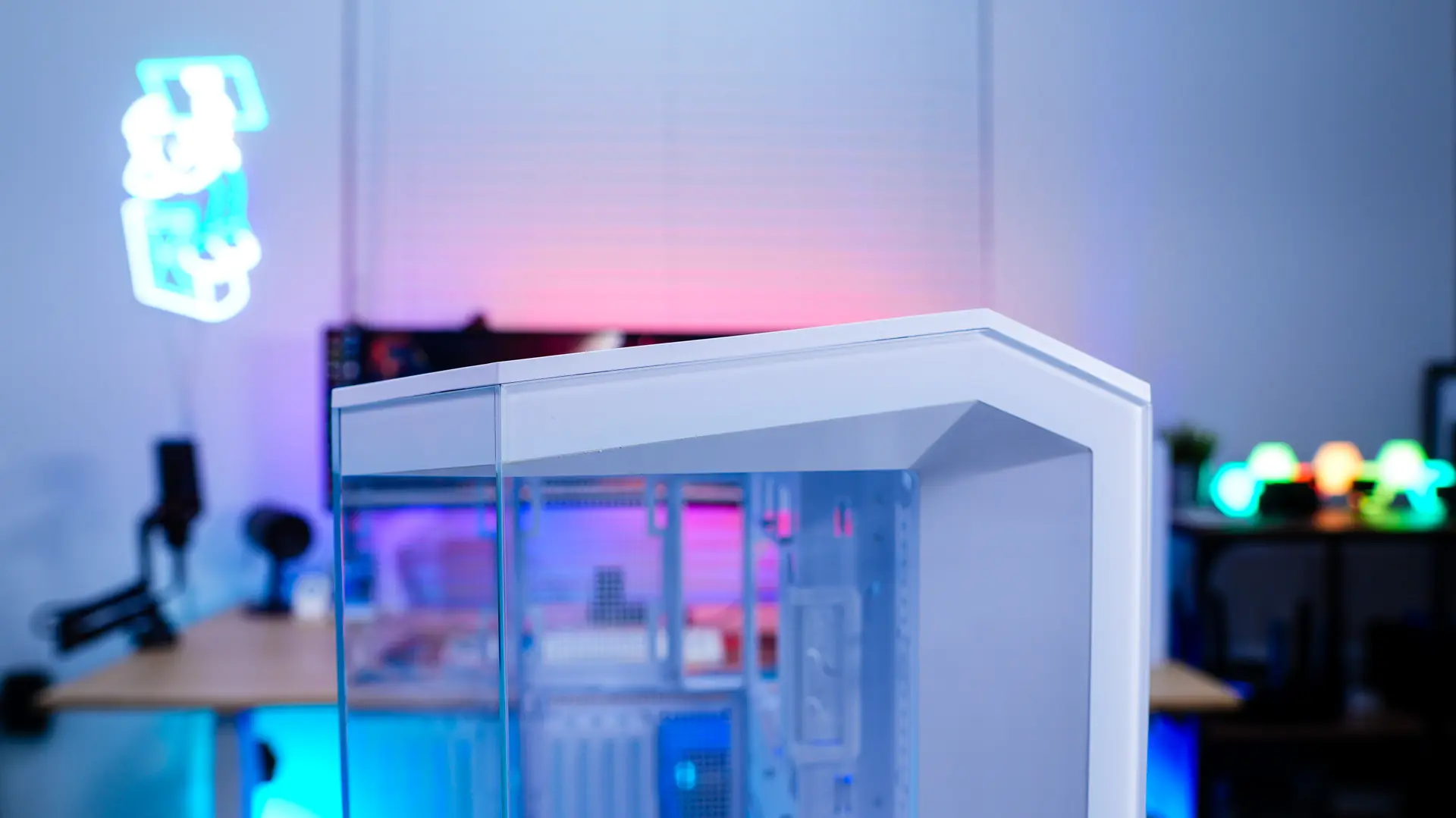

Starting at the front of the case we have a glass panel which allows you to see into your system from the front. Unlike other fish tank-style cases we’ve seen MSI has changed things up a little bit. The front panel is actually angled, so we have two glass panels on the front. The angle is not as dramatic as what we’ve seen from something like the HYTE Y60 / Y70, but it is nice to see not just a flat panel.

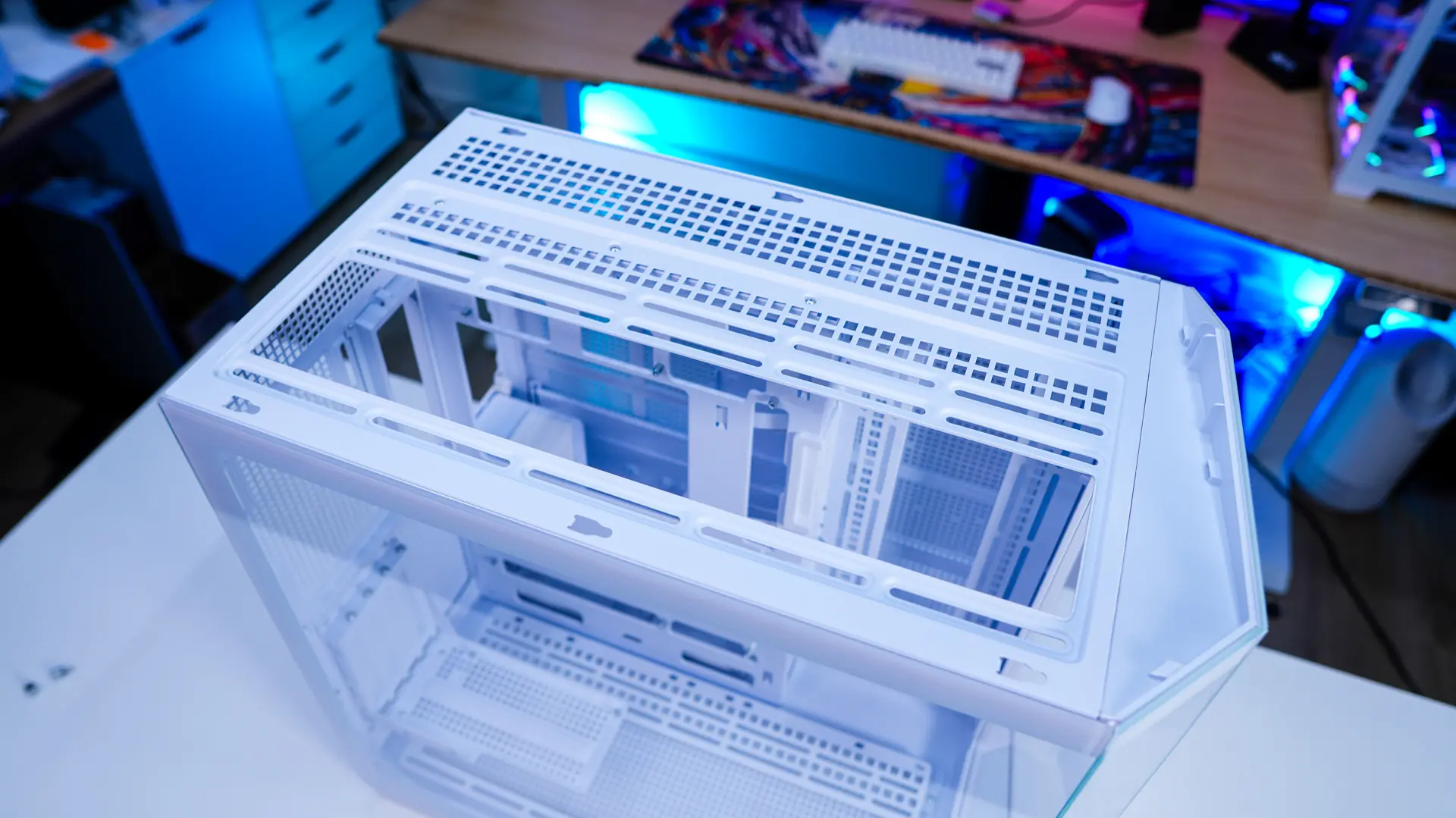

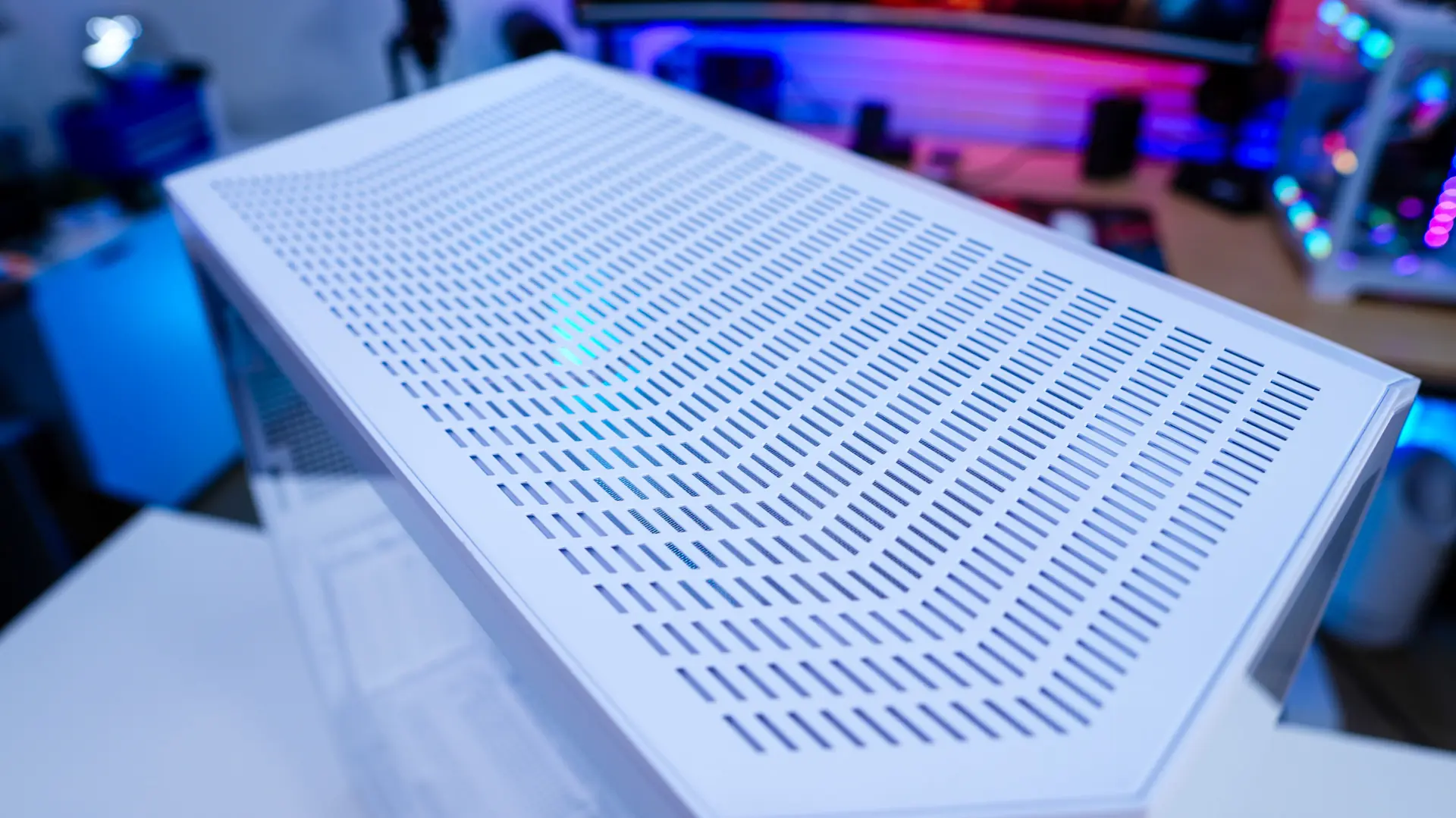

Moving up to the top of the case the entire top panel has slits in it for ventilation. Removing two thumbscrews on the back of the top panel you can easily remove it. With it removed we find a cooling bracket that supports three 120 / 140mm fans or radiators up to 360mm.

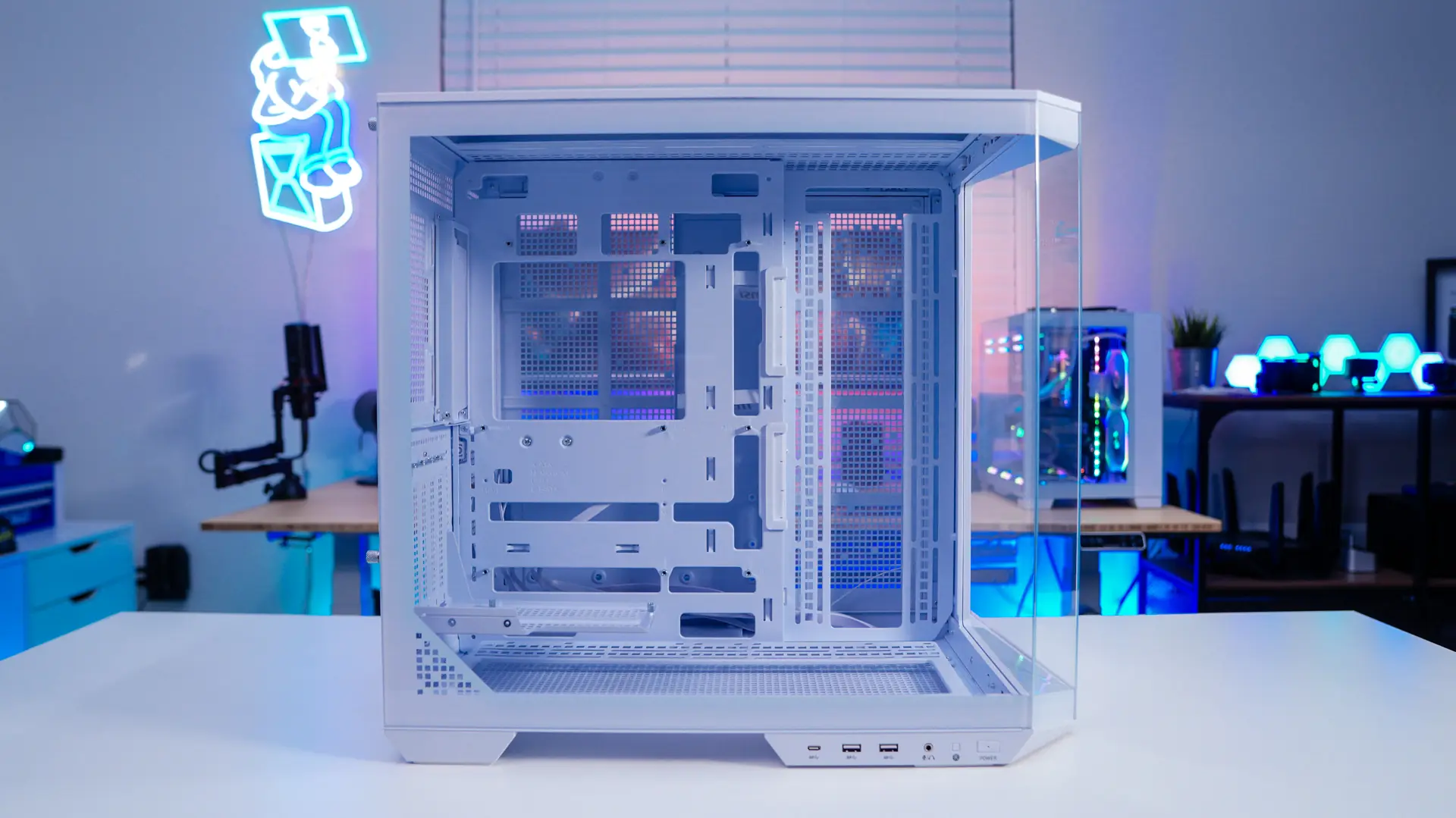

The main side panel of the case is of course a glass panel. It does have a design in the corner that does match the ventilation holes on the case itself.

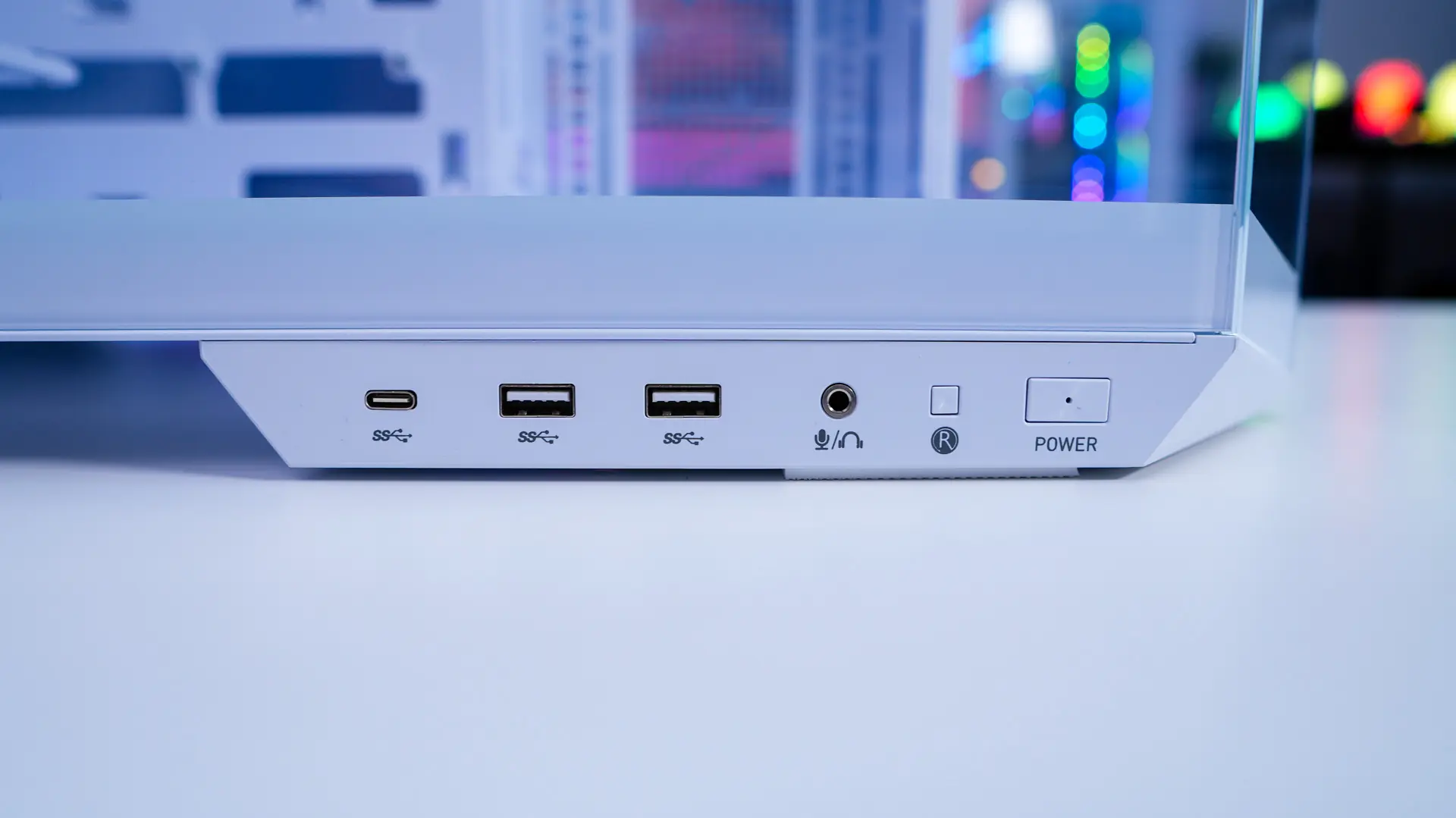

On the side of the case towards the bottom you’ll find your power and reset buttons as well as a few connections. These connections include a combination headphone / microphone jack, two USB 2.0 Type-A ports, and a single USB 3.2 gen 2 Type-C port.

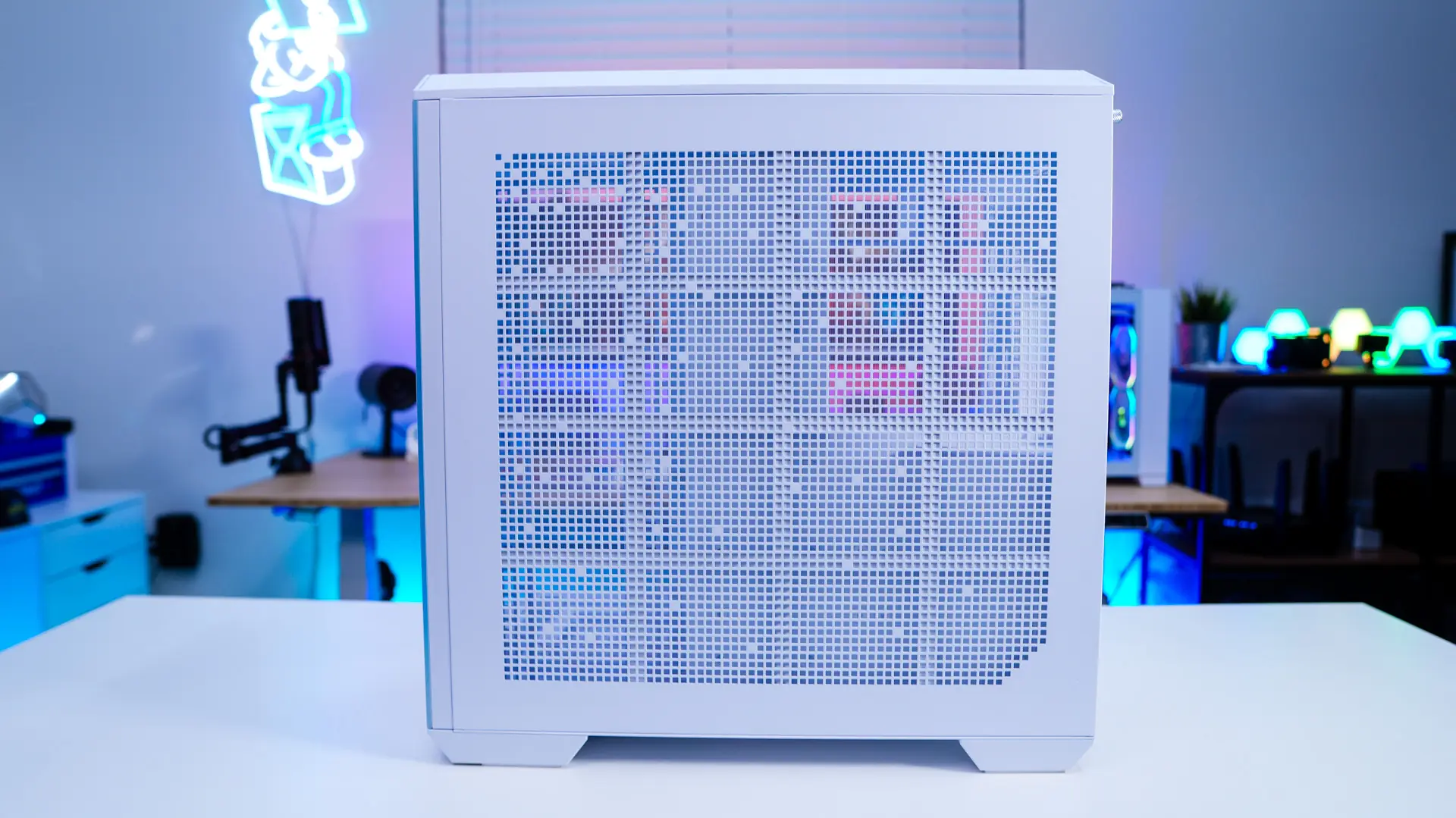

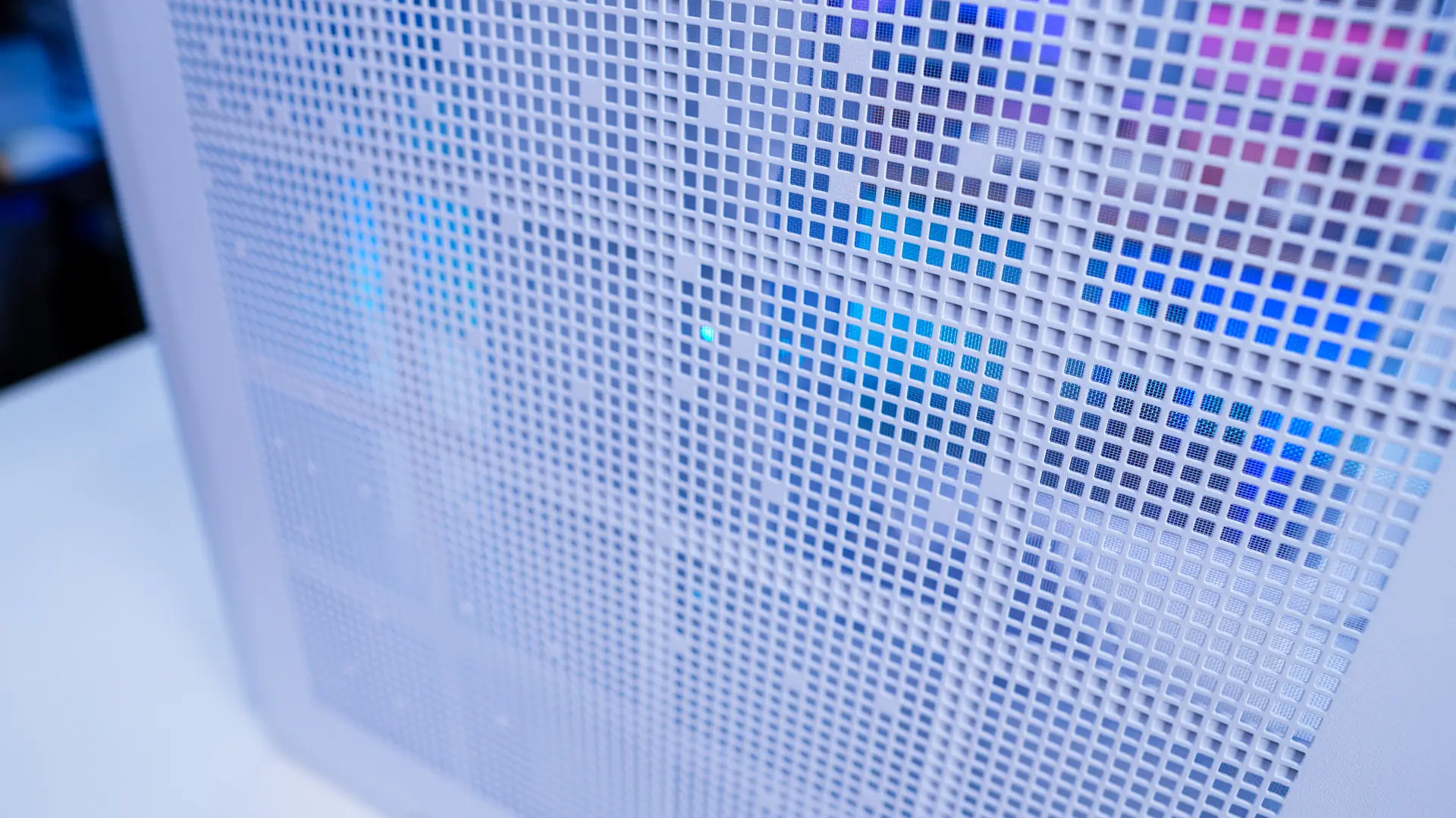

The opposite side panel is a steel panel, but it is pretty much all ventilated with that same square design that we saw in the corner of the glass panel.

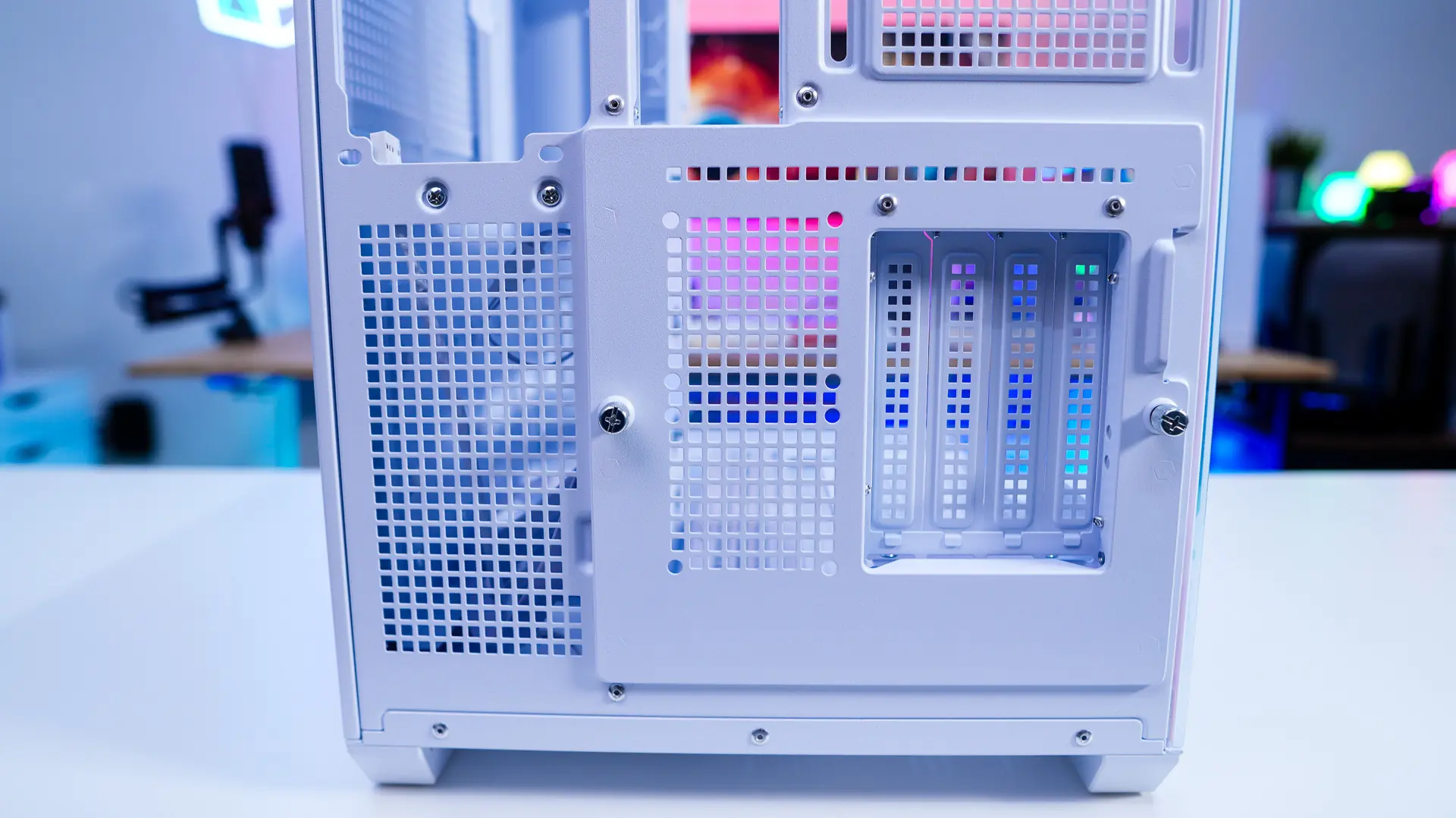

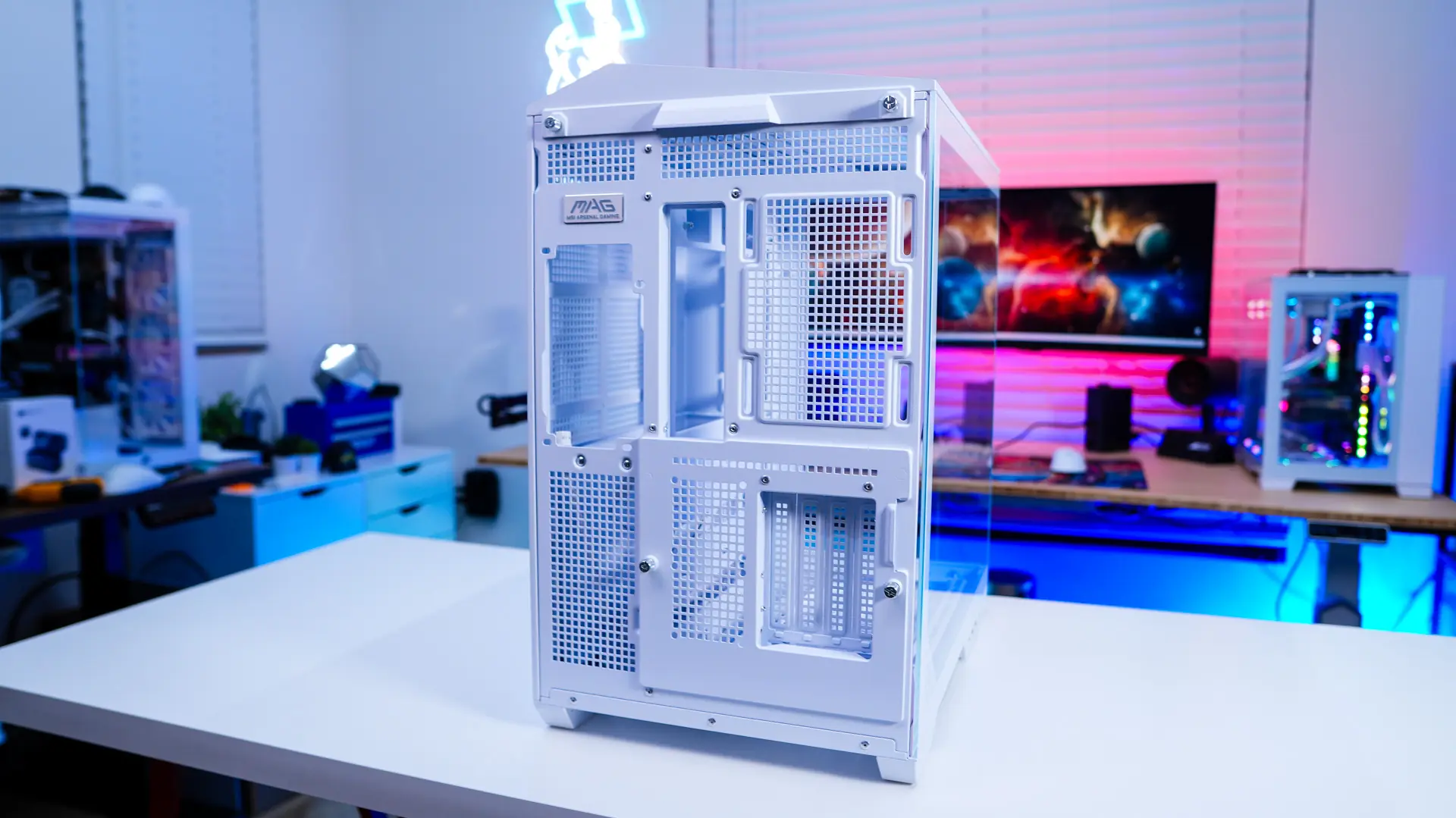

The back of the case has quite a lot of ventilation on it as well. From the back we can see that this is a dual chamber case with the left side of the case for our power supply and storage with the right side for our motherboard. The case does come configured with a vertical GPU mount, but you will have to provide your own riser cable. If you don’t want to use the vertical GPU mount configuration you can easily remove it and install the normal one that comes with the case.
