MSI Radeon RX 5600 XT Gaming X Graphics Card Review

Power Consumption

To test power consumption we will be using a Kill-A-Watt meter. This will measure the entire system power draw at any given moment. We first run an idle test on the Windows 10 desktop at 1 hour of inactivity.

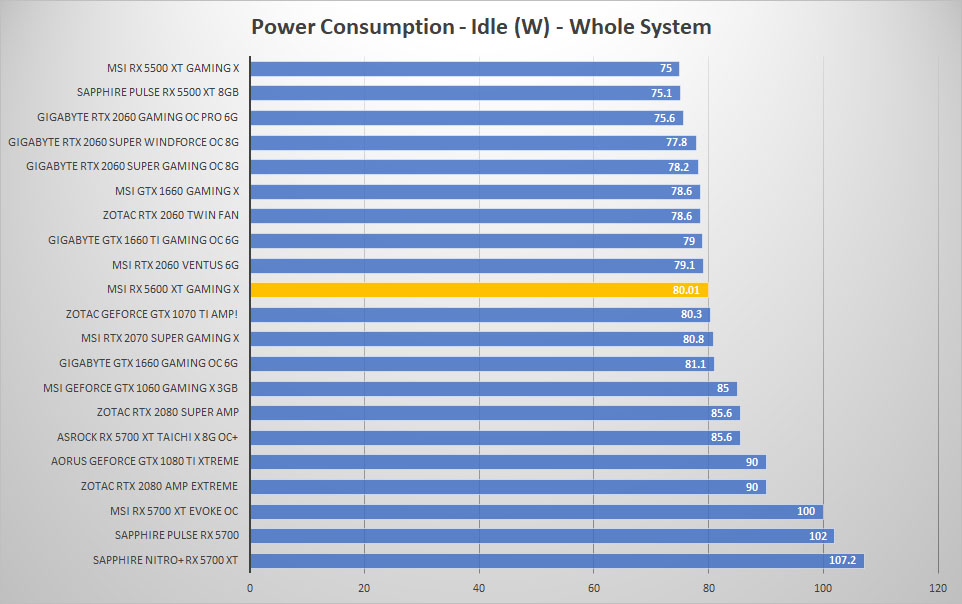

msi rx5600xt power idle

Then we run the AIDA64 system stability test with only the GPU selected, which puts 100% load on the GPU.

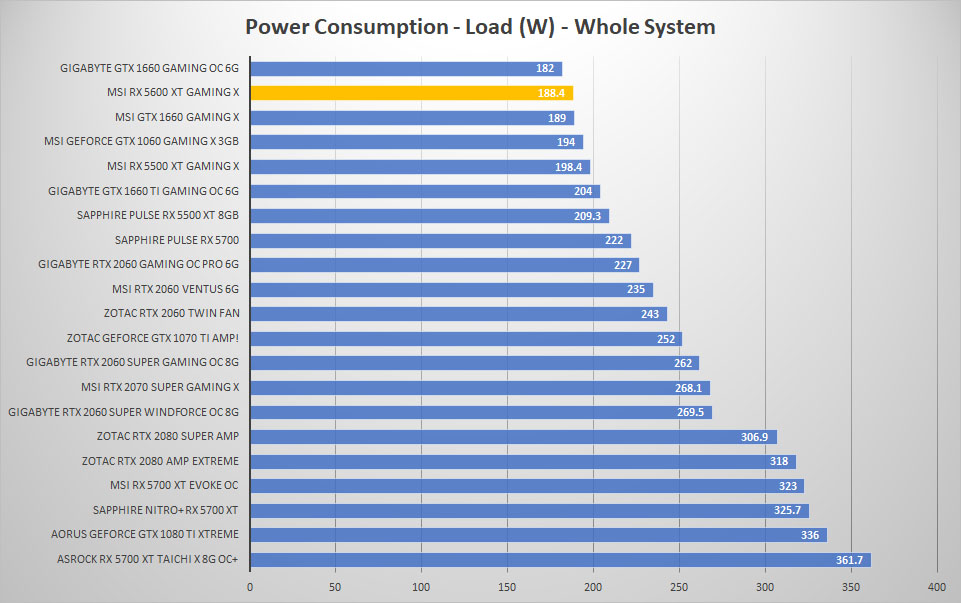

msi rx5600xt power load

Temperatures

For our temperature testing we run two different tests. The first is idle with our system sitting on the Windows Desktop.

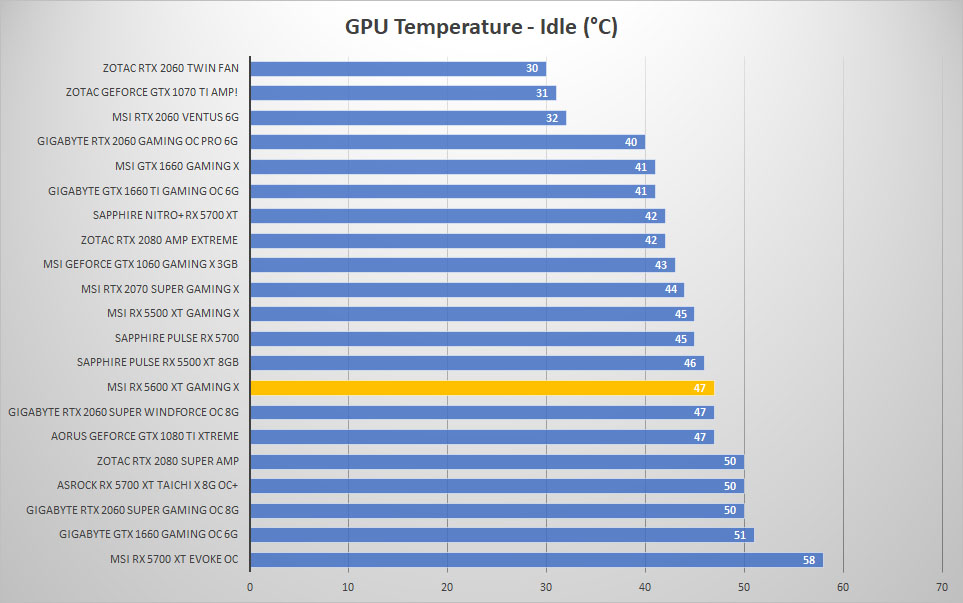

msi rx5600xt temp idle

The second is running the AIDA64 system stability test with only the GPU selected.

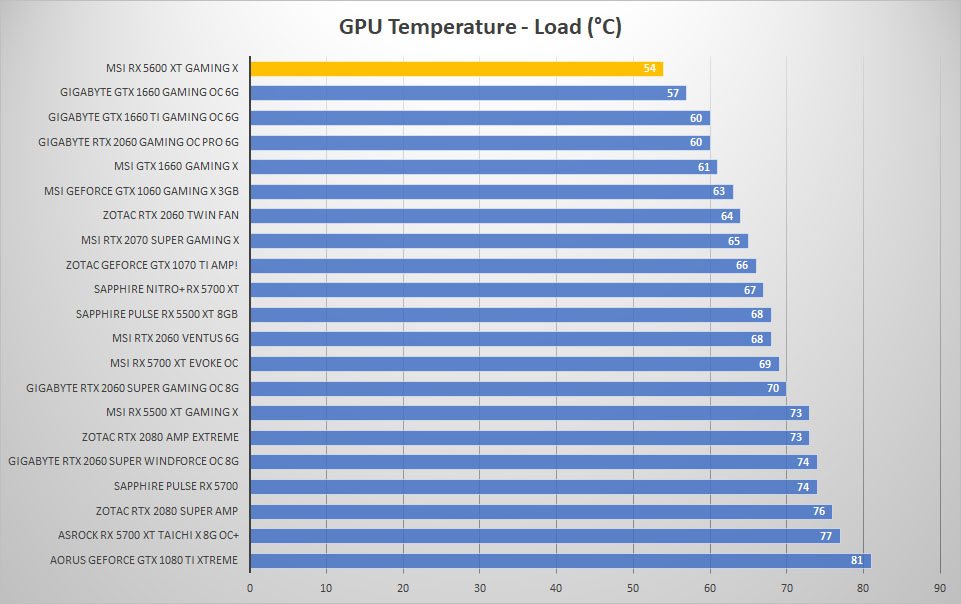

msi rx5600xt temp load

Noise Levels

We have added in noise level testing to our test suite. We use a Risepro sound level meter, which is placed on our test bench at the same place. We record the highest noise level during both idle and load.

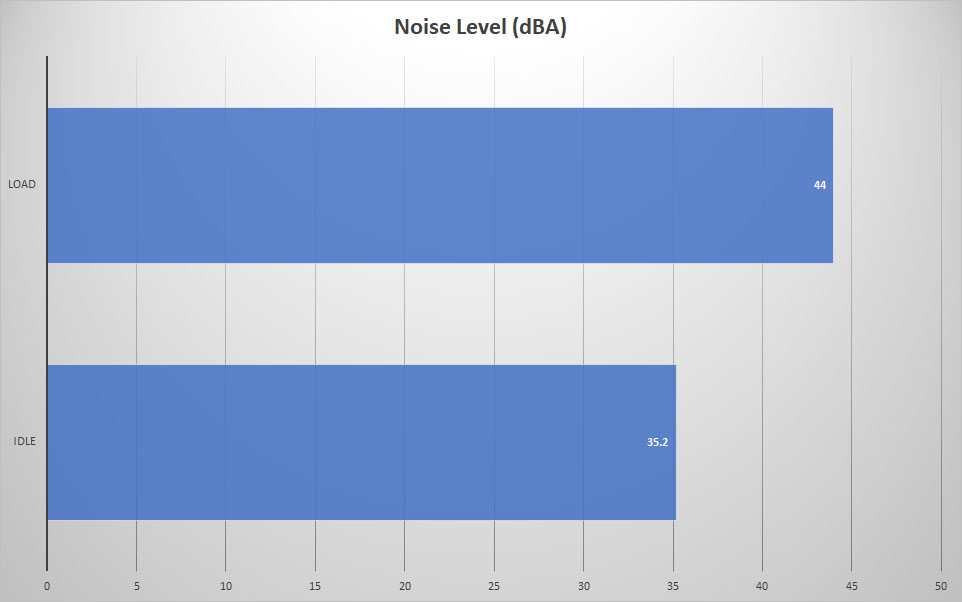

msi rx5600xt noise level

As you can see there is not a massive change in noise level, and I have to say the Twin Frozr 7 cooling solution on the card is very quiet.
