Corsair iCUE LINK 3500X RGB Case Overview

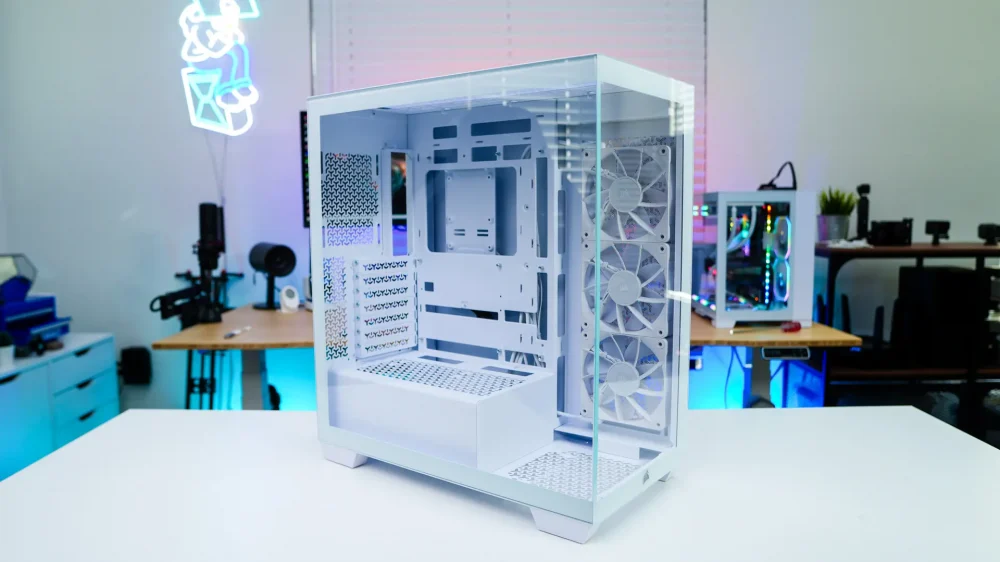

We received the white version of the case, but you can also get it in black. The official dimensions of the case are 506mm x 460mm x 240mm (HxLxW). With these dimensions I would say this case is around the size of your standard mid-tower so you shouldn’t have any issue with getting this case to fit on your desk.

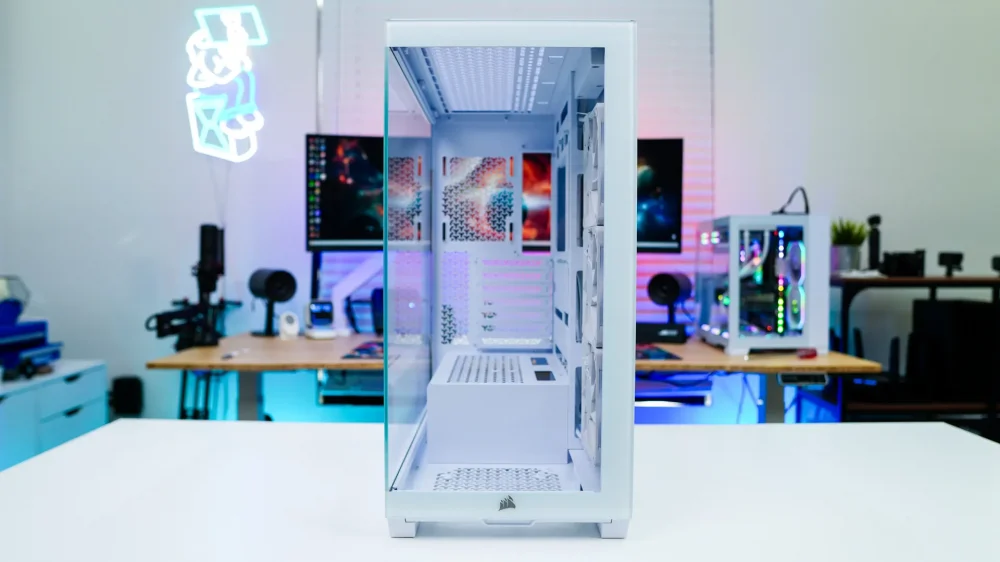

Starting at the front of the case we have that clear, see-to-the-back glass panel. The one thing you notice is that we do not have a pillar so you have unobstructed views into the case.

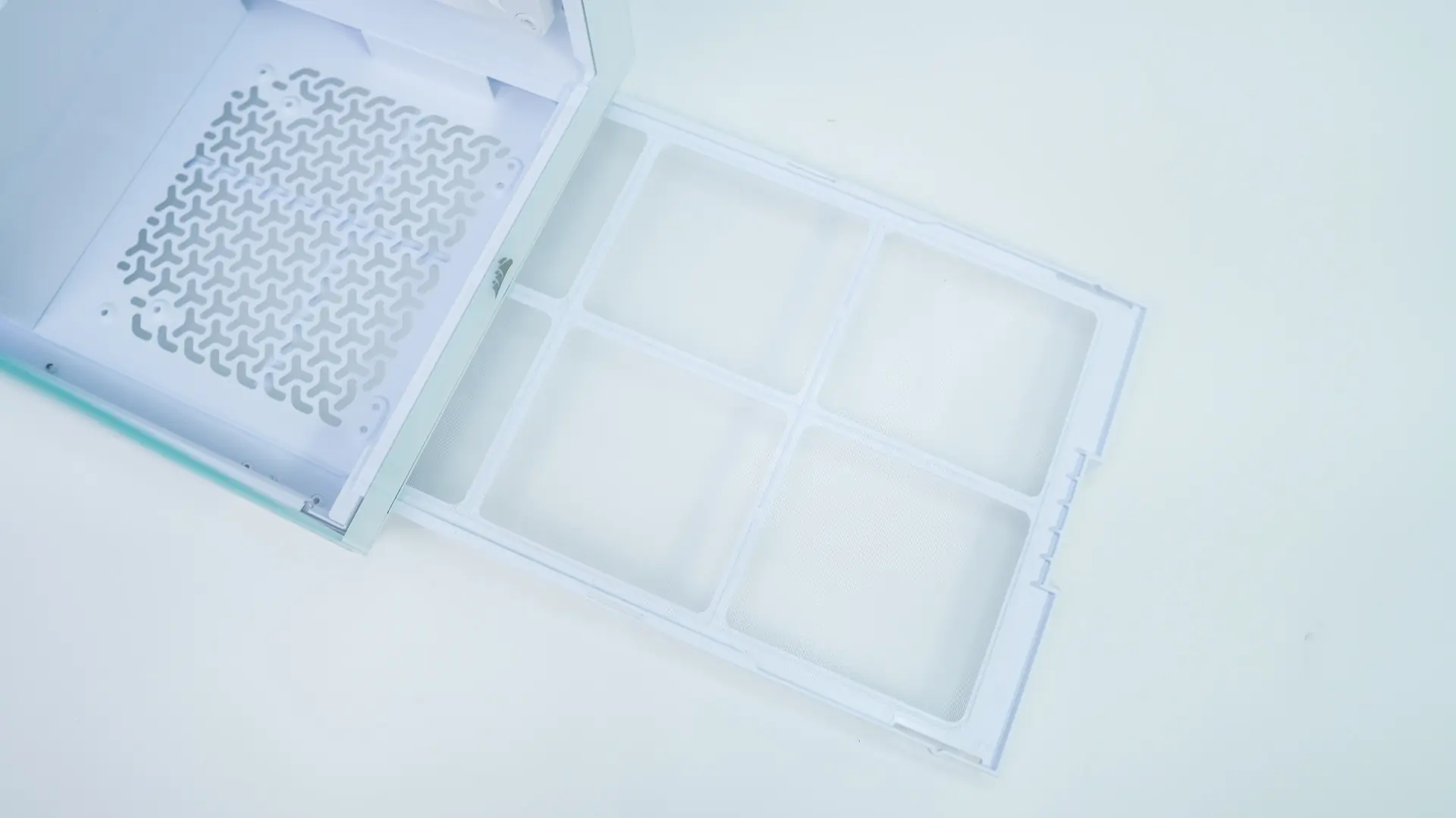

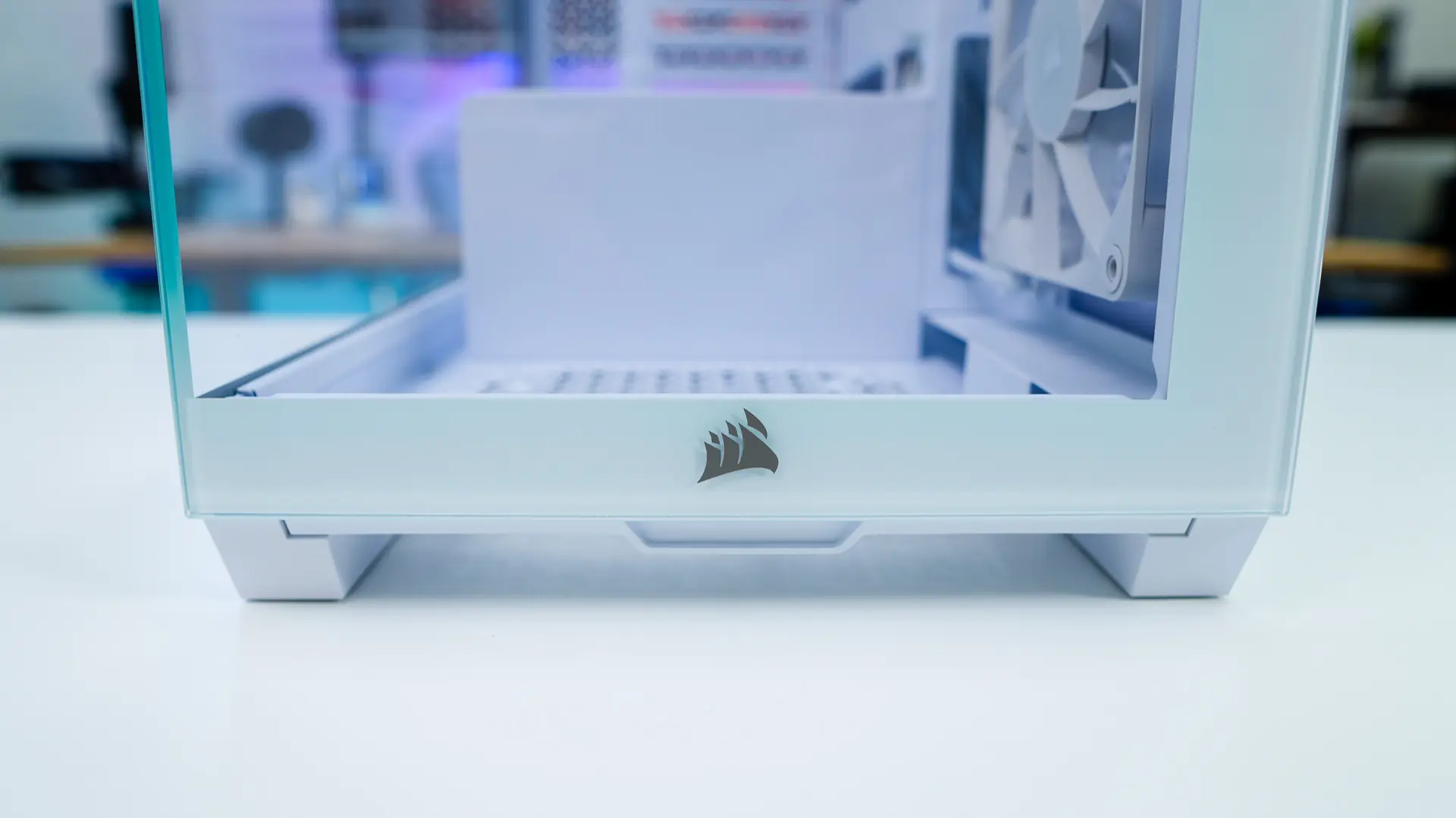

Towards the bottom of the case there is a small Corsair logo. Right under it you’ll find your pull-out filter, which extends the entire length of the case.

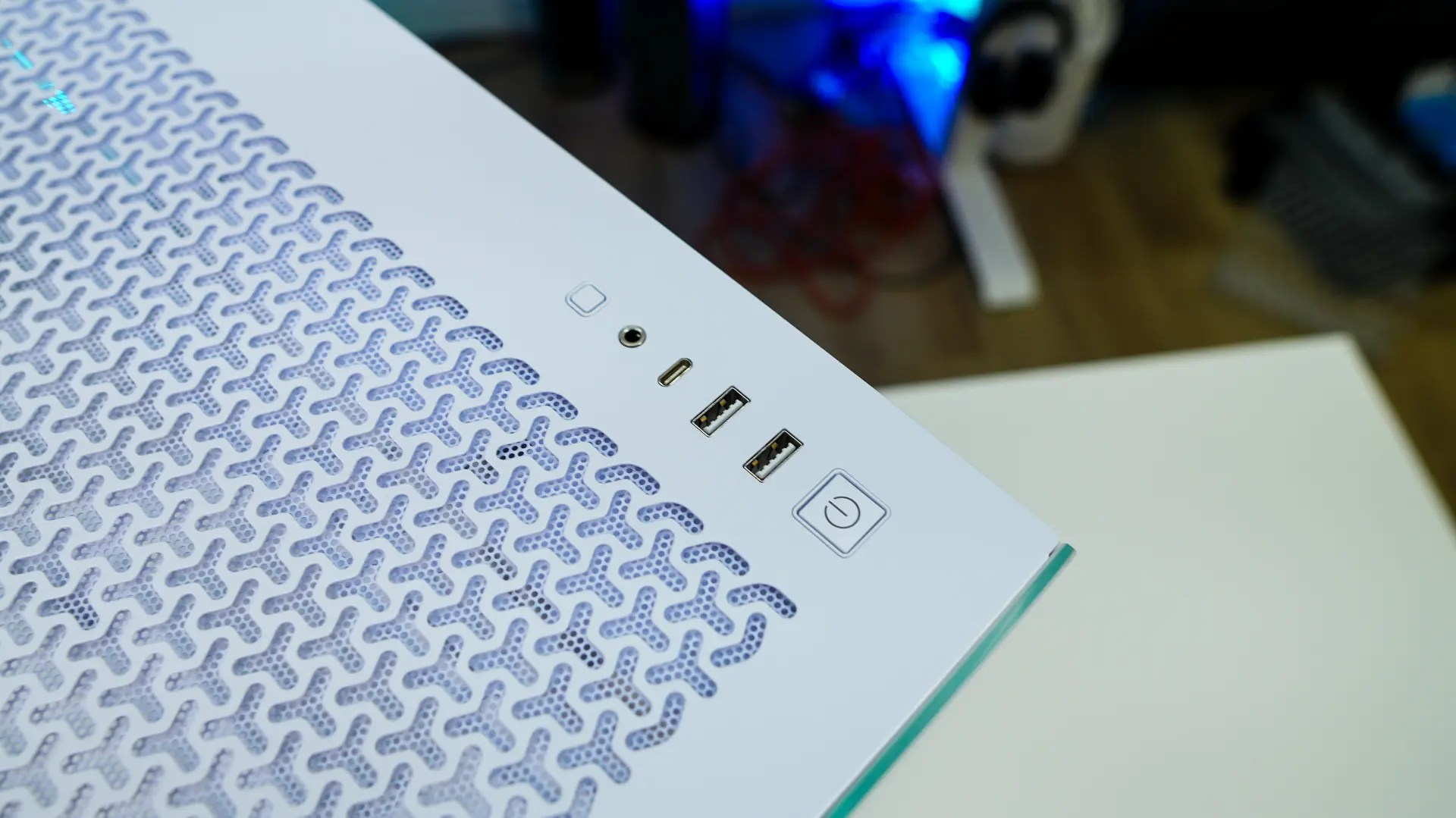

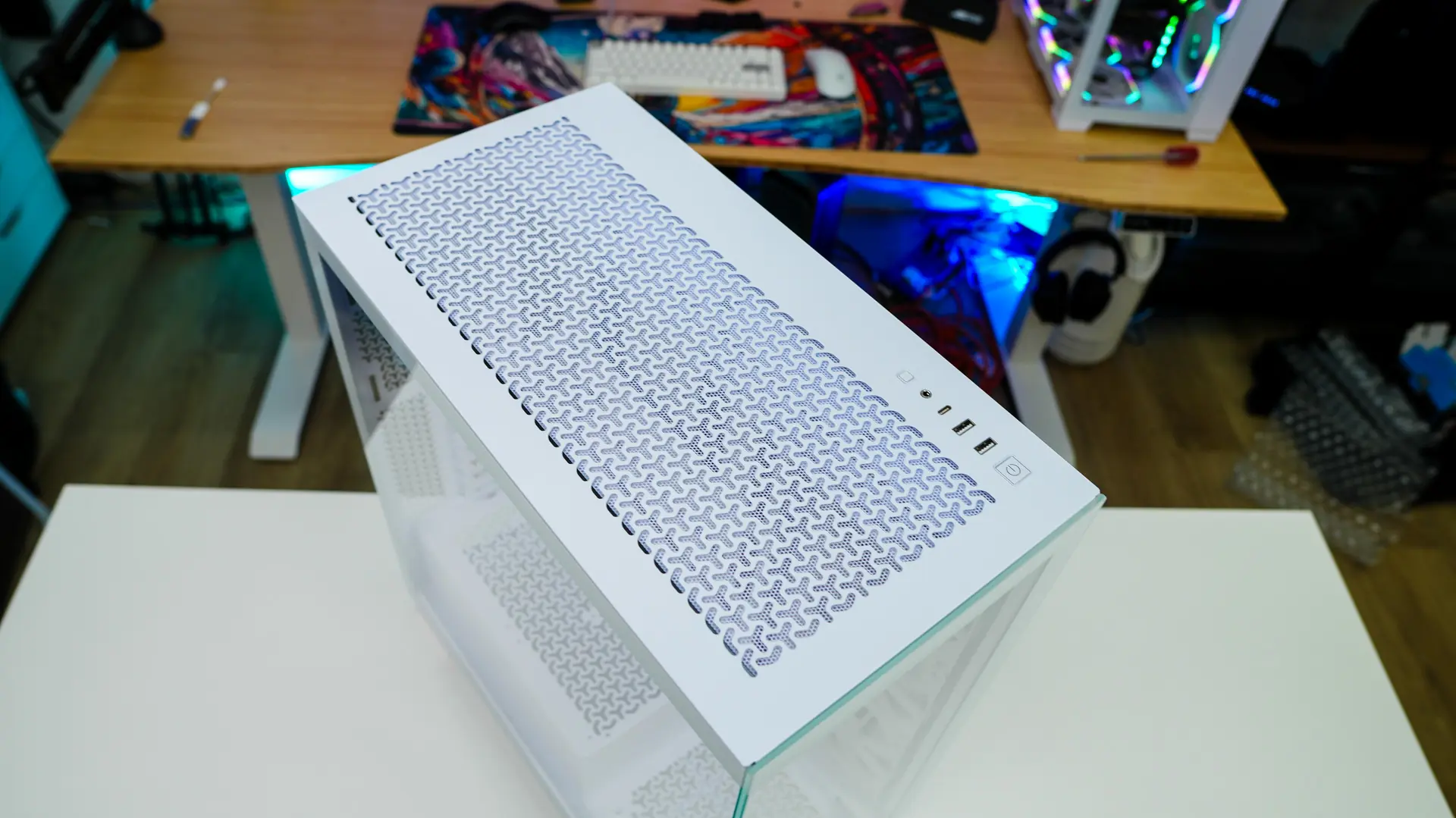

Moving up to the top of the case most of it is ventilated. On the far right hand side we find some connections and buttons. These include a large power button, two USB 3.2 gen 1 Type-A ports, a USB 3.2 gen 2 Type-C port, combo headphone / microphone jack, and a smaller reset button.

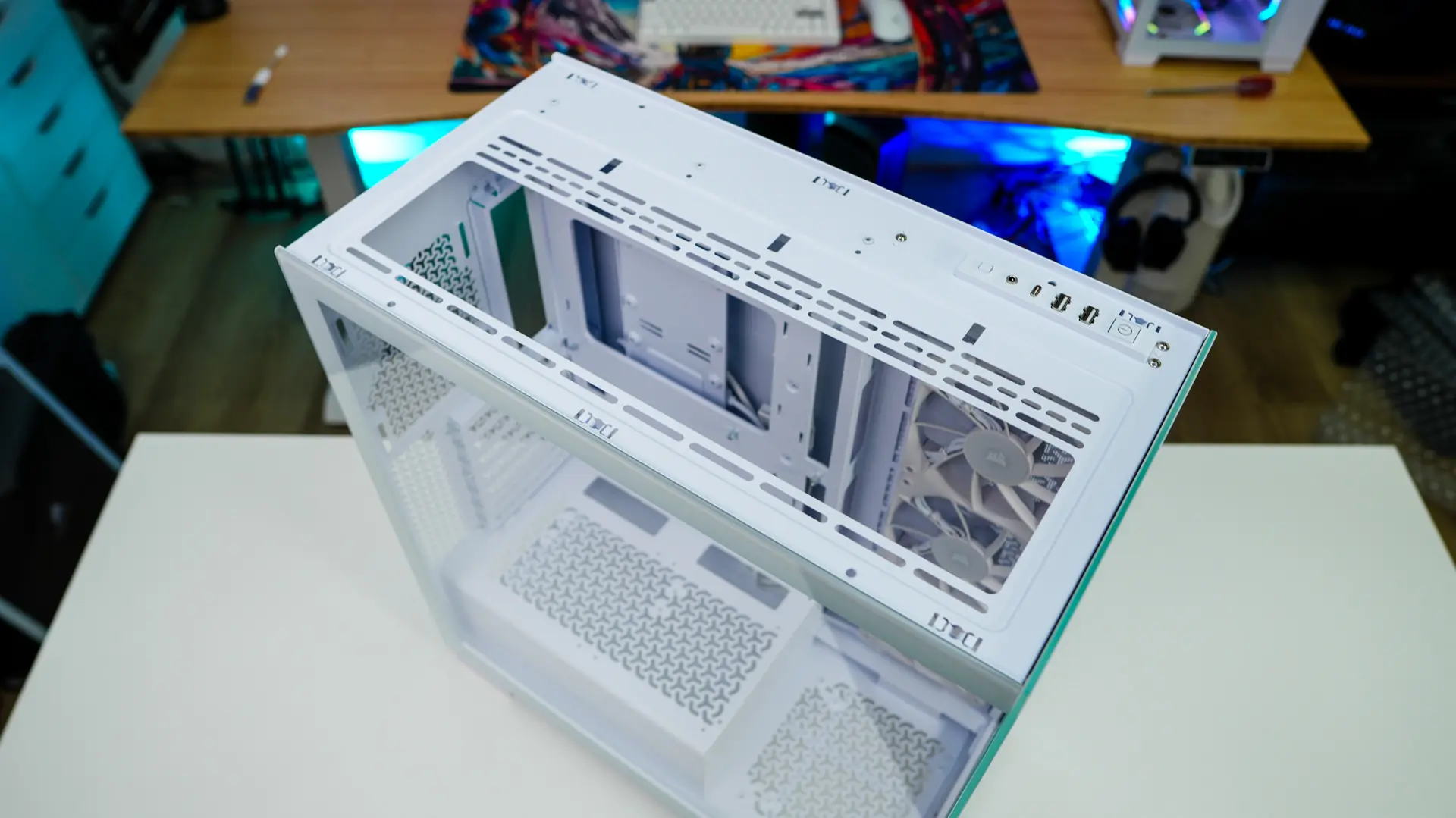

The top panel of the case simply pulls off when you lift up on it. Once removed we can see the top panel does have a removable magnetic filter. With the top of the case removed we can see a cooling mount. This mount will support three 120mm or two 140mm fans as well as radiators up to 360mm.

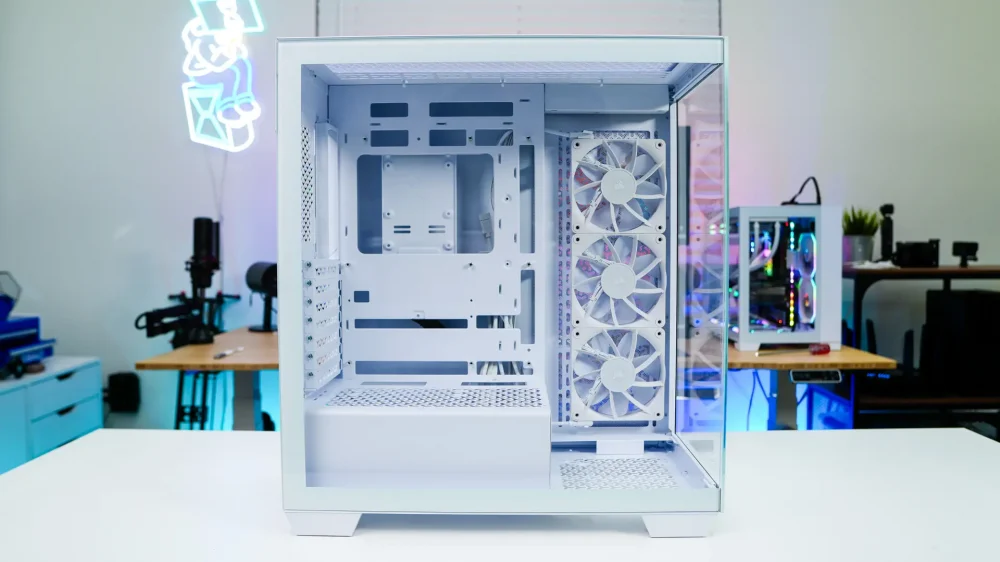

Of course the side of the case has another glass panel. Looking at the case from the side you can really see what that pillarless design gives you as you have nothing blocking the view of your hardware in this case.

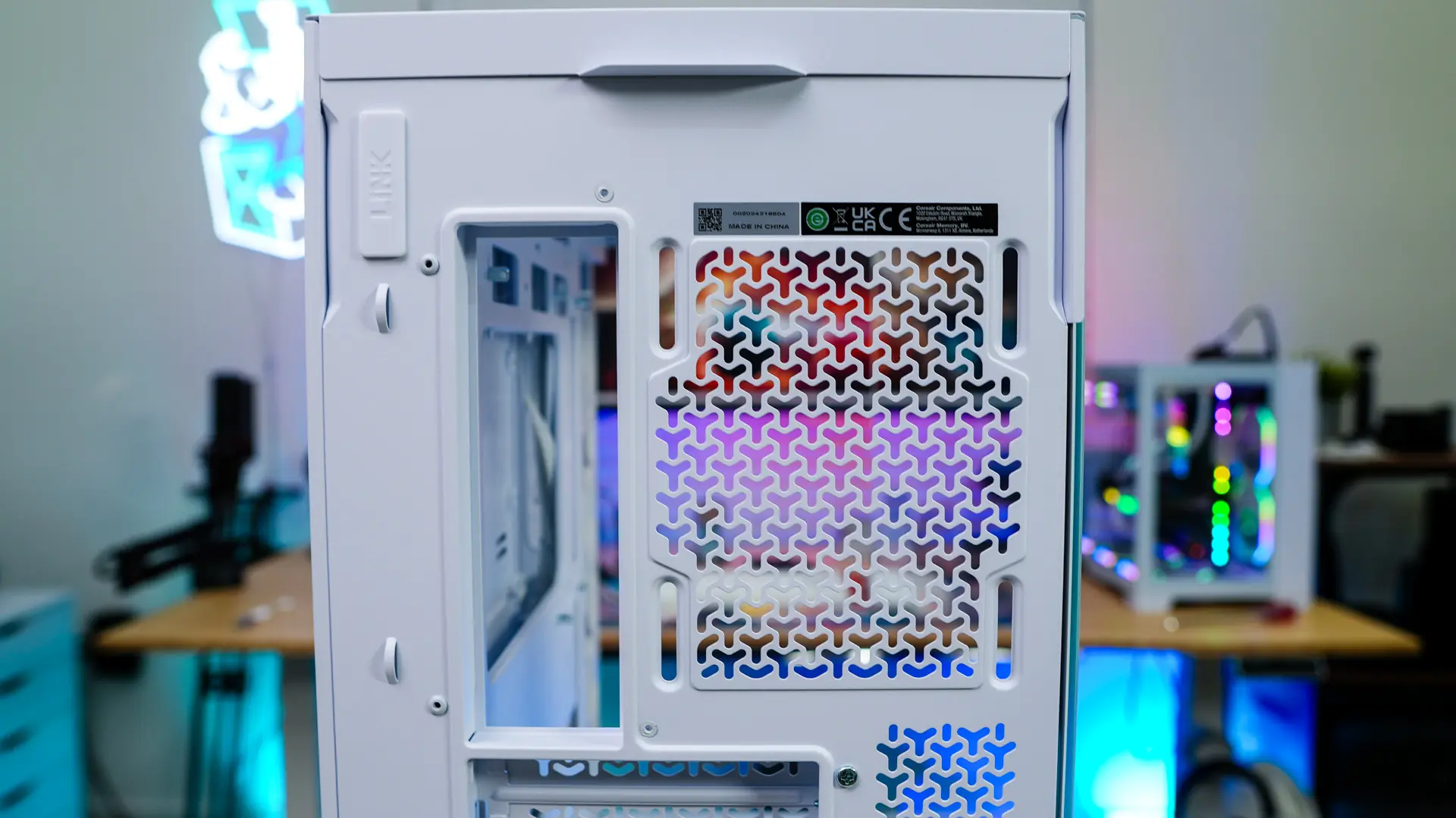

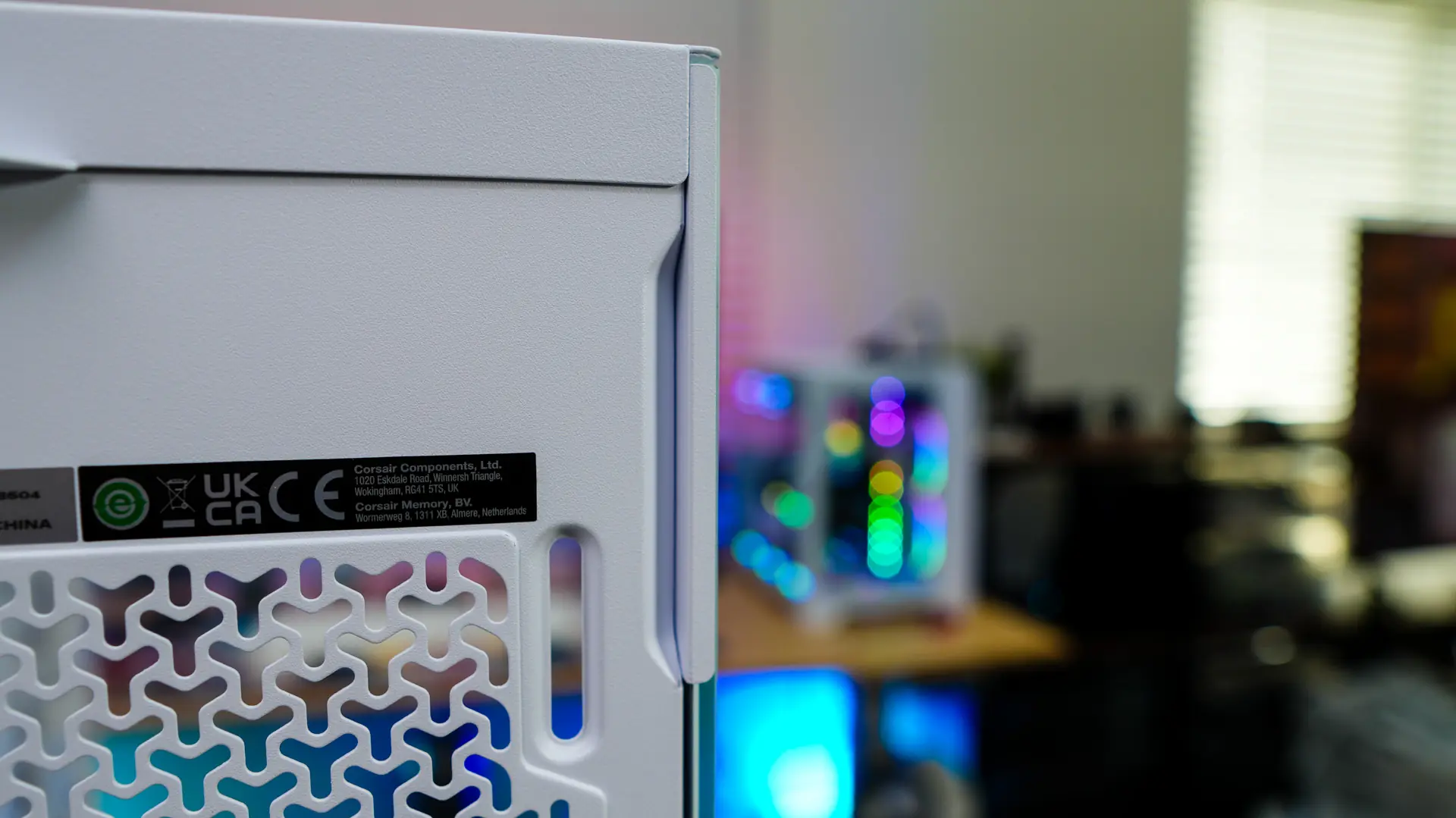

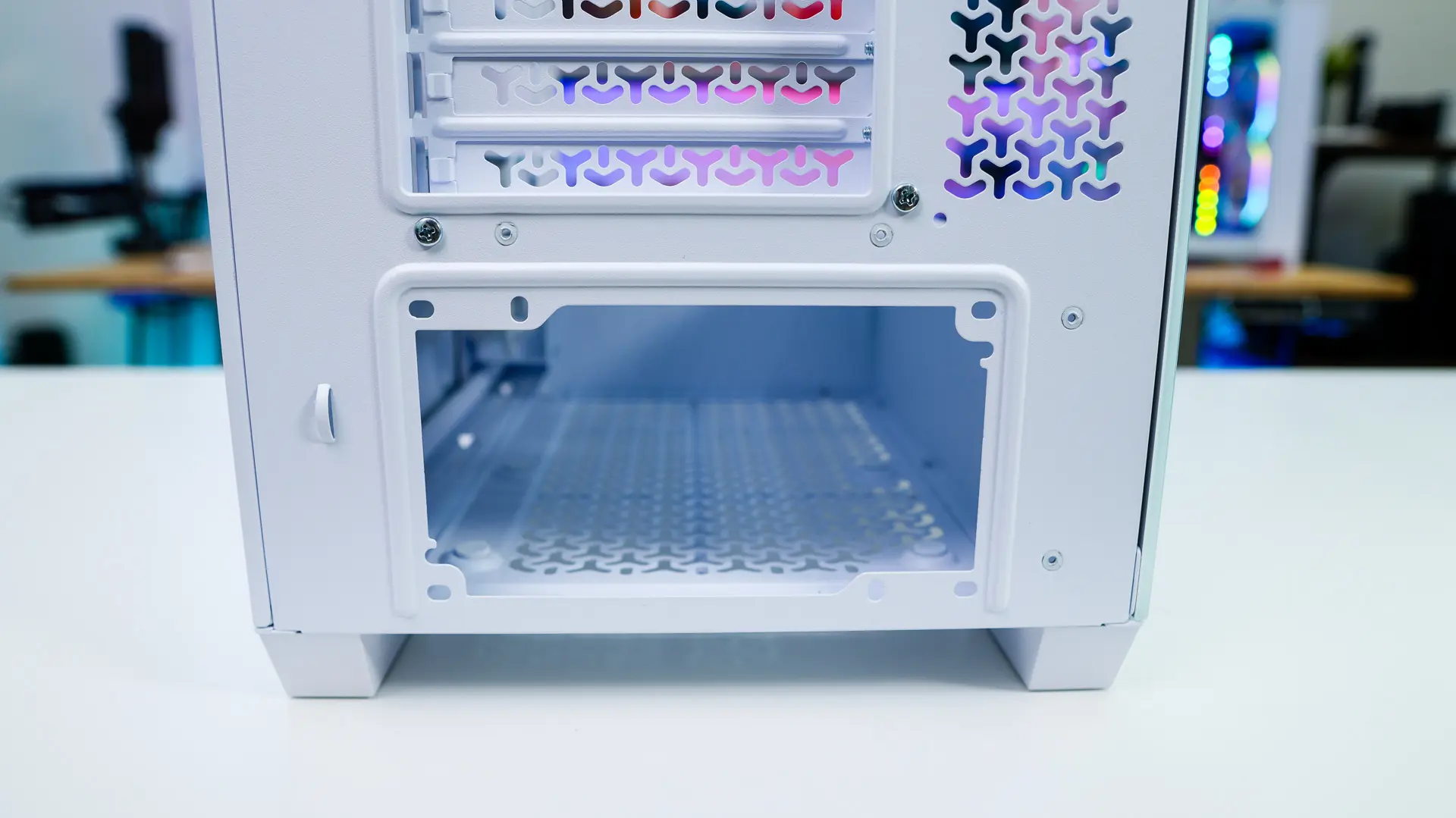

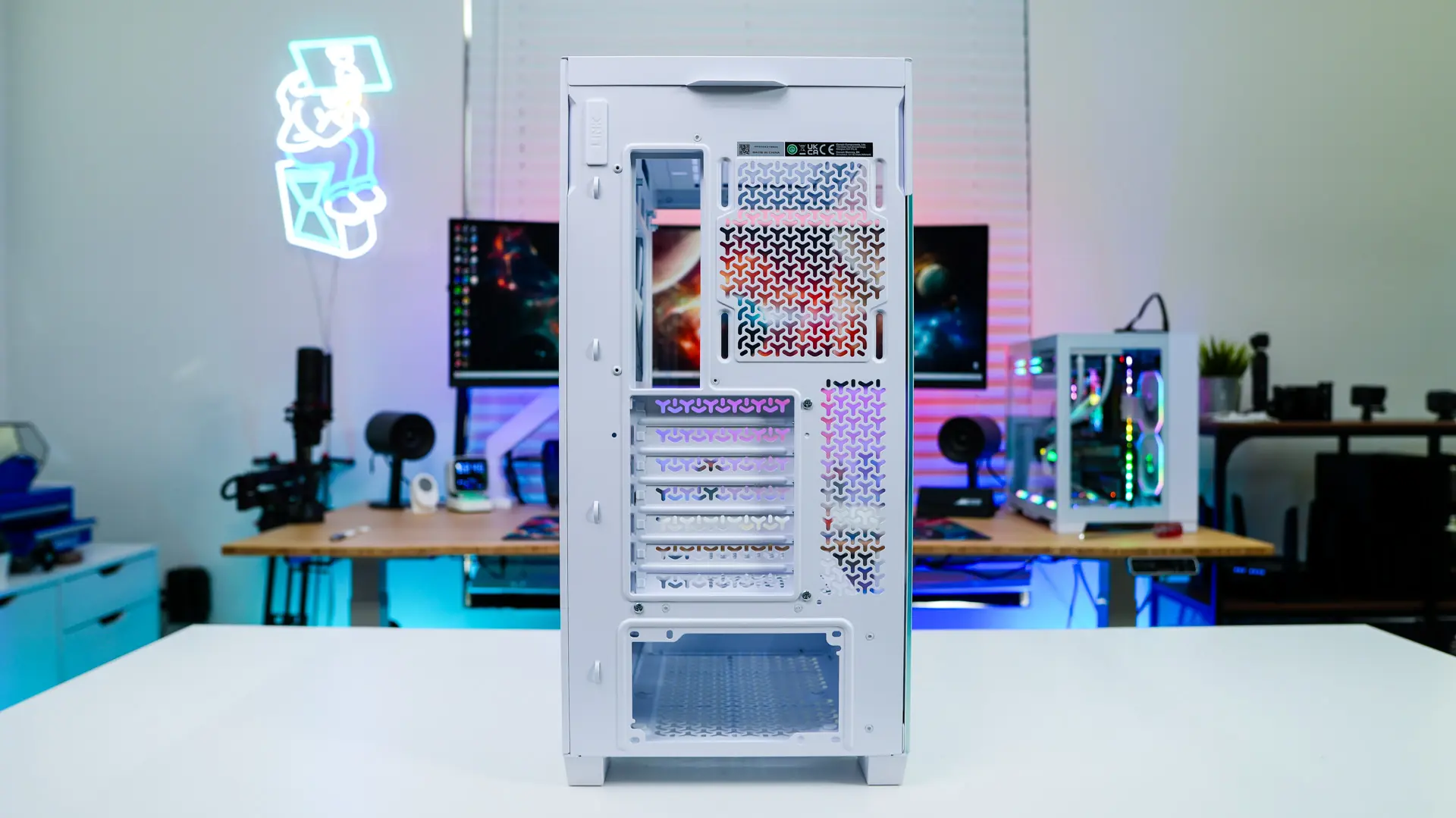

Coming to the back of the case we have a pretty standard design. Towards the top we have a rear fan mount that supports a 120mm fan, our motherboard mount, some ventilation, and the power supply mount towards the bottom. Also at the top of the case you’ll notice slight indents for the side panels. You simply pull on these to release the panels. There is also a small cover for what we assume is an iCUE LINK product.

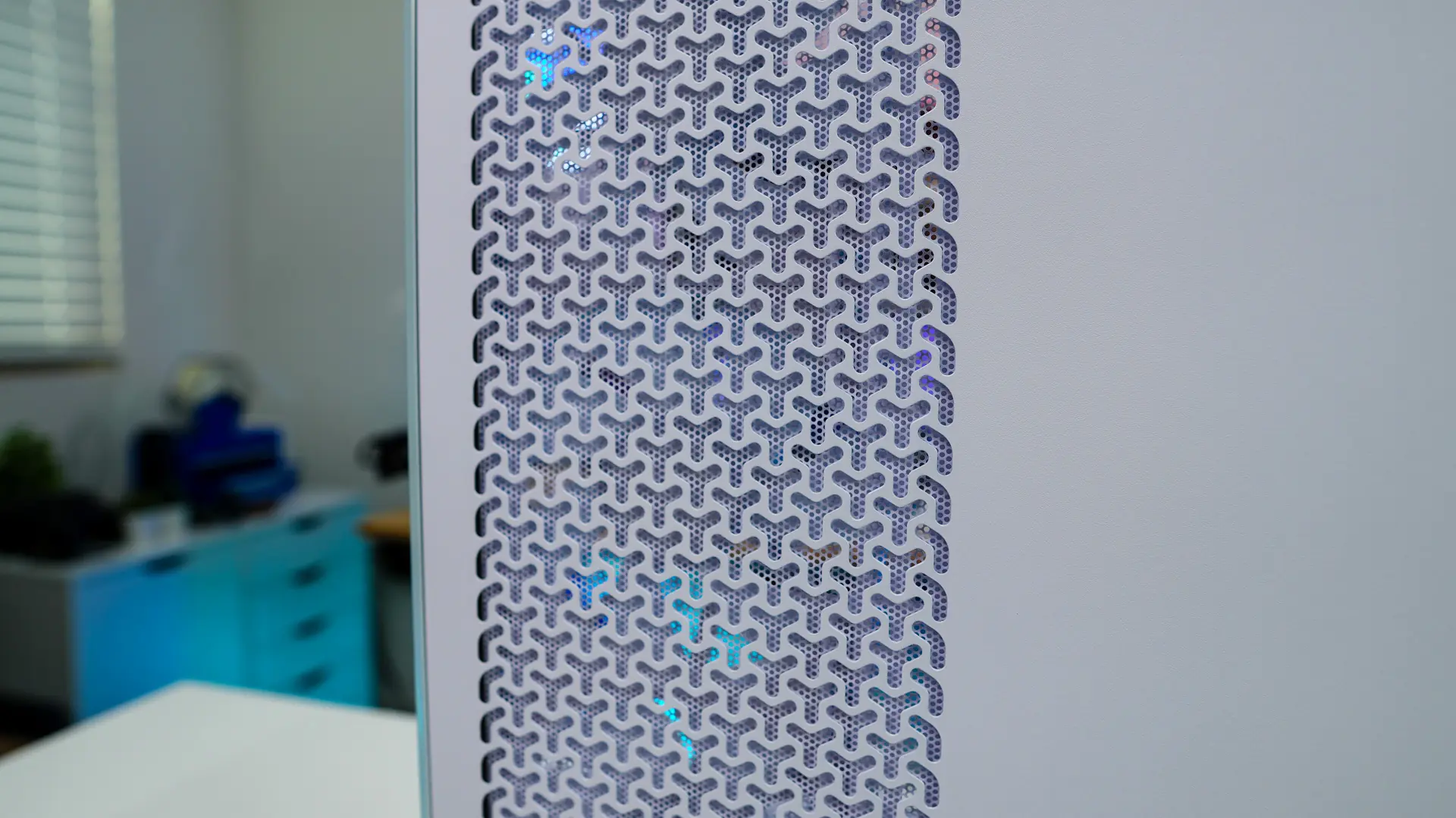

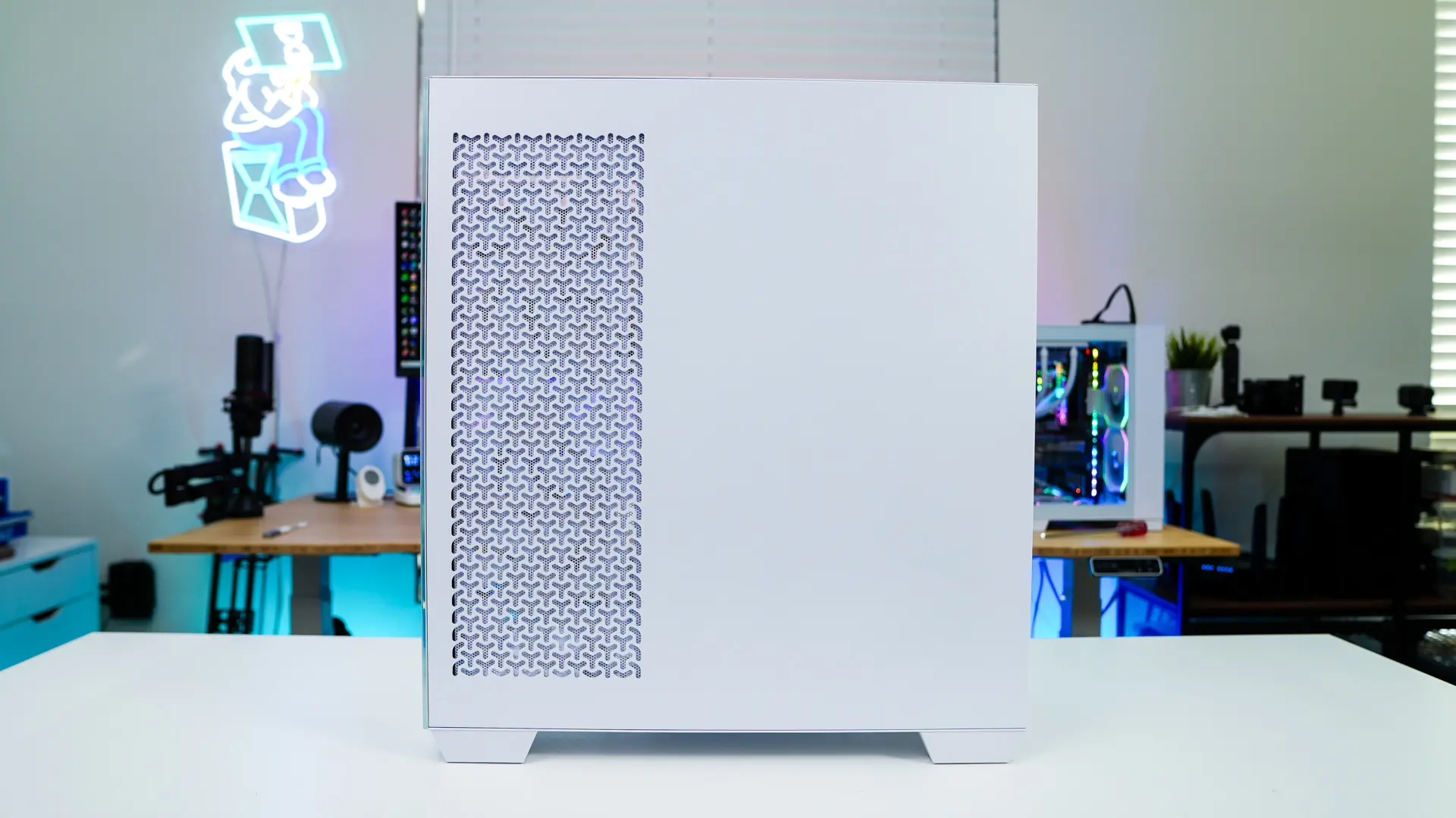

The opposite side panel is a steel panel. Towards the front you’ll find a large ventilated section which covers the side mount. The side mount will be used as your intake since the front panel is all glass.
