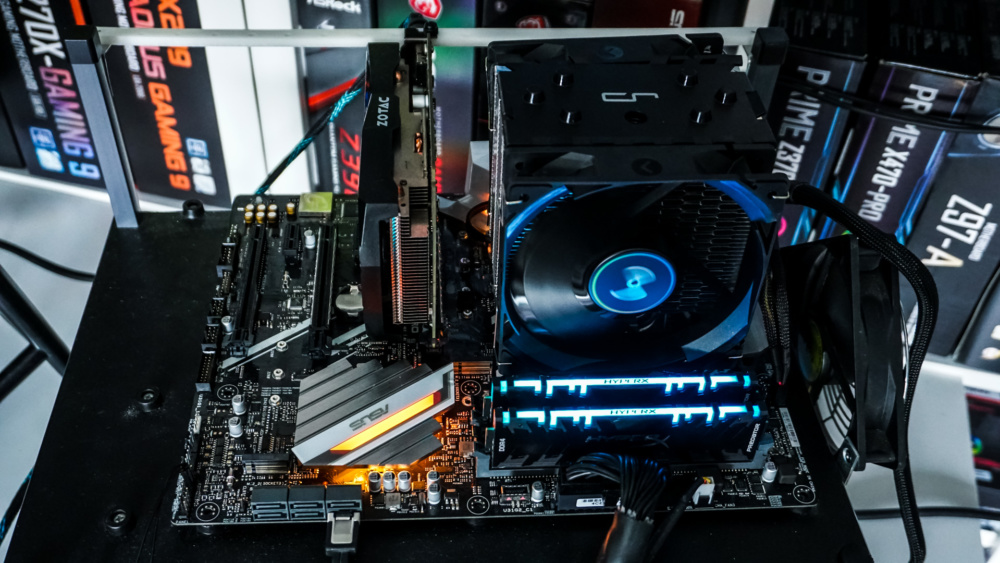

As I mentioned we installed the Cryorig H7 Plus in our Ryzen test system, which is comprised of the following hardware.
CPU: AMD Ryzen 7 2700X
Cooling: Cryorig H7 Plus
Motherboard: ASUS Prime X470-PRO
Graphics Card: Zotac GeForce GTX 1050 Ti OC Edition
Memory: HyperX Predator RGB DDR4-2933 16GB
Storage: Gigabyte UD Pro 512GB
Power: Corsair RM850x
We will be comparing the Cryorig H7 Plus to the following CPU coolers tested on the same hardware.

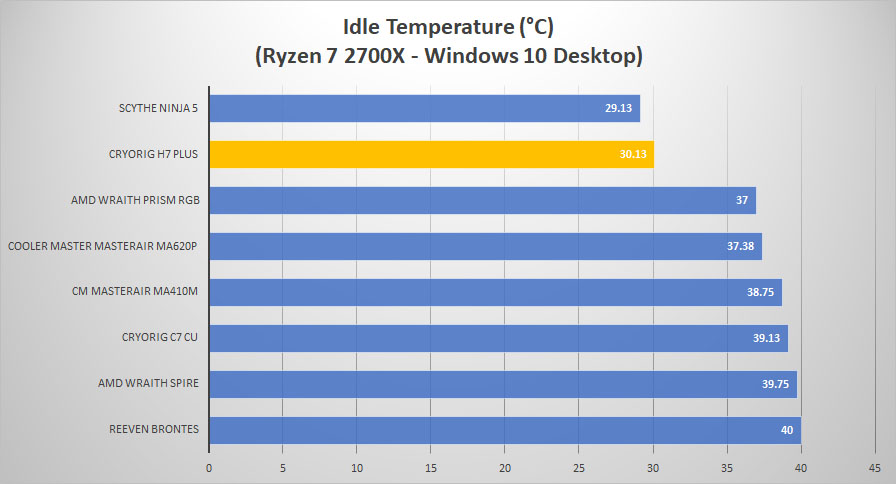

For performance testing we will first test idle temperatures. These are taken on the Windows 10 desktop and hour after the system has been turned on.

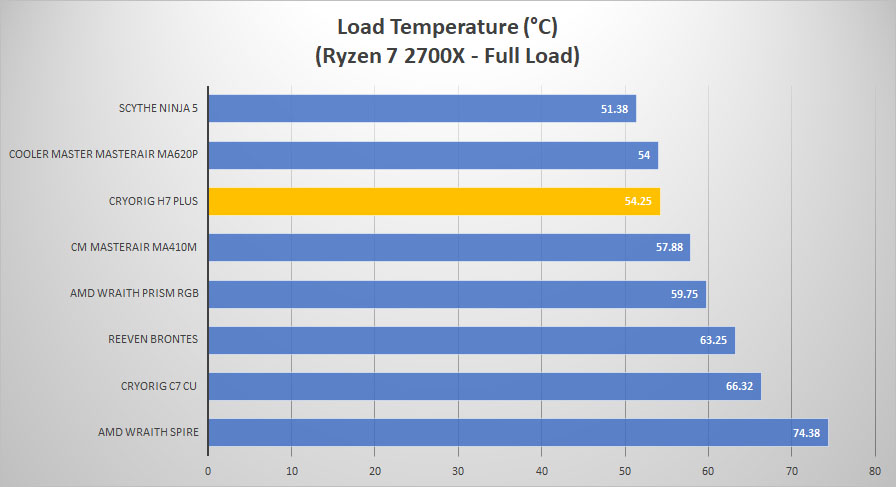

Moving on to load testing we will be running the AIDA64 system stability test with the CPU only checked. This puts a full load on our CPU. We run this test for 1 hour and record the highest temperature throughout the test.
Taking a look at our results you can see that the H7 Plus is towards the top of both idle and load results.
