WD Black SN750 Overview

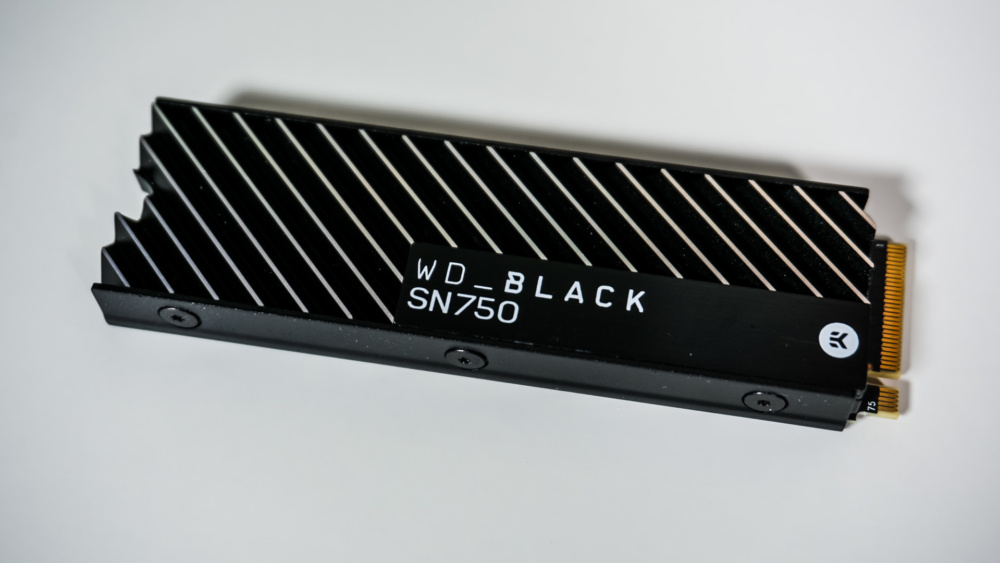

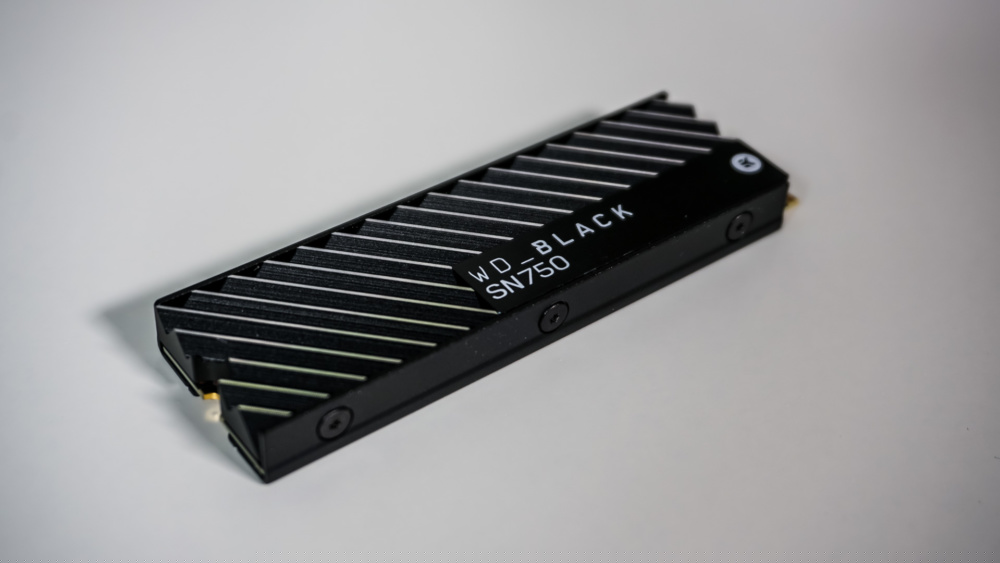

Taking a first look at the WD SN750 drive with the heatsink installed it really catches your eye. The heatsink sits on top of the drive and have a set a ridges on top. Towards the bottom right it says WD_Black SN750 and there is a small EK logo.
With the heatsink installed the drive is a little larger than your typical SSD, but in terms of height as well as width. It is 8.10 mm tall and 24.2 mm wide, this is compared to the 2.38 mm tall and 22 mm wide of the normal drive without the heatsink.

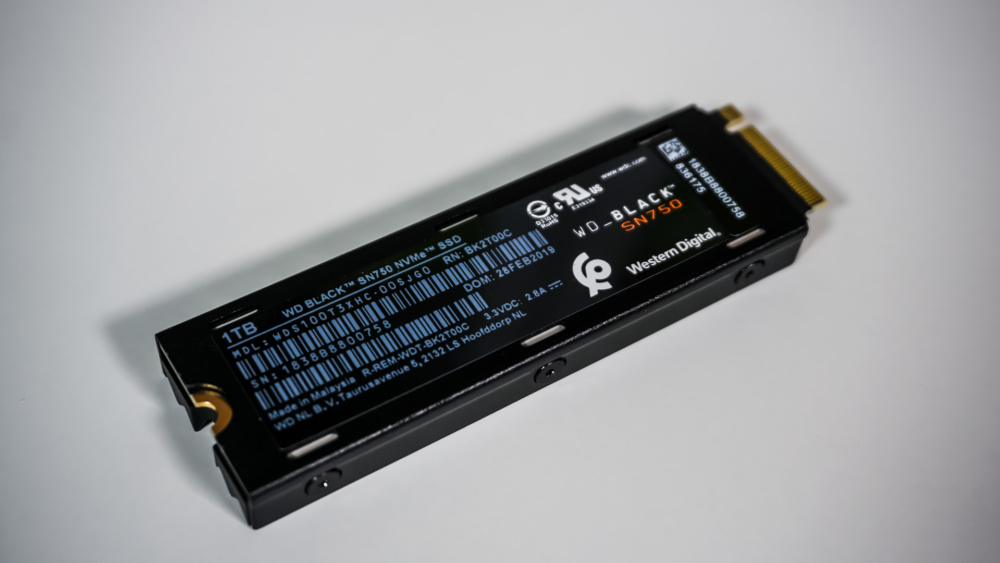

Flipping the drive over all of the information is printed on the back. It gives you the model number, serial number, and more.

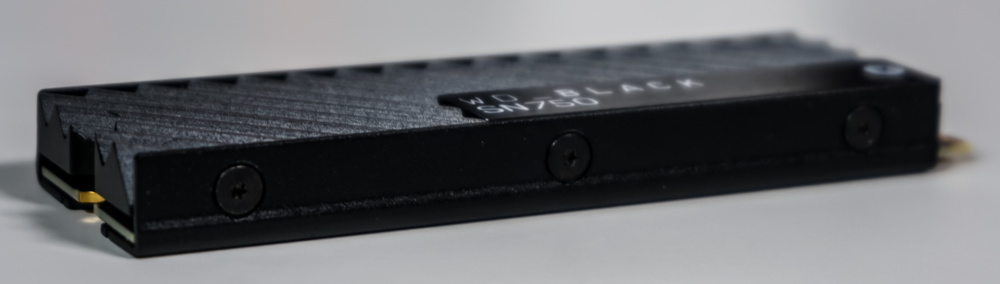

On the side of the drive are four small screws that when removed will allow you to take the heatsink off.
For those wondering what is under the hood of this drive it is designed completely in-house by WD. So you have a Western Digital controller, DRAM cache chip, and two WD 3D NAND chips.
