ASRock Radeon RX 5600 XT Phantom Gaming D3 6G OC Overview

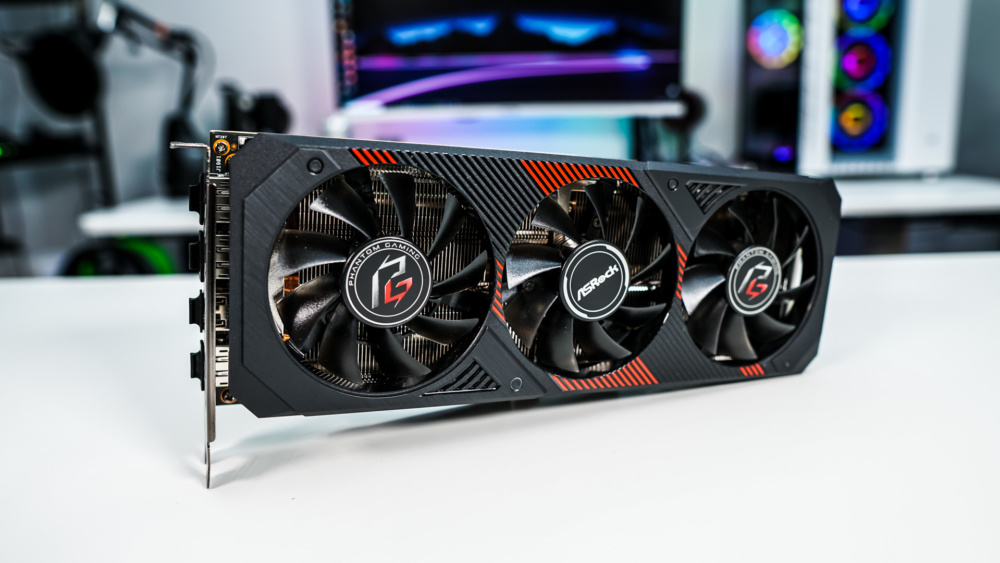

Taking a first look at the ASRock Radeon RX 5600 XT Phantom Gaming D3 6G OC we can definitely tell it is a Phantom Gaming card as the shroud is black with red accents. We also have Phantom Gaming stickers on two of the fans and an ASRock logo on the center fan. Overall the card looks quite good.

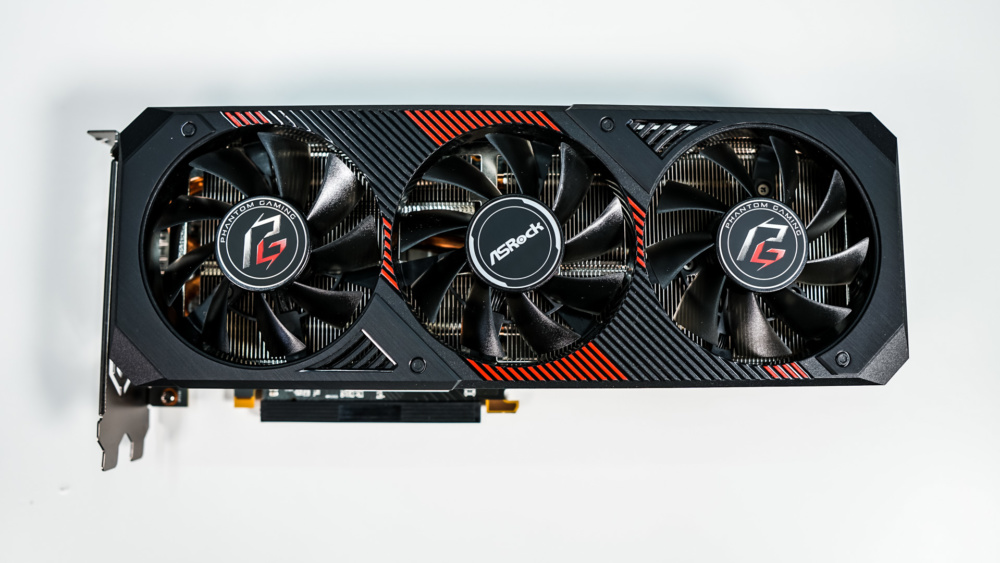

One thing that is interesting about this card is that it has a triple-fan cooling solution. This puts the length of the card at 290.6 mm, definitely one of the larger RX 5600 XT cards out there. The fans on the cooler feature a 0dB mode, so when there is no load on the GPU they will be off and silent.

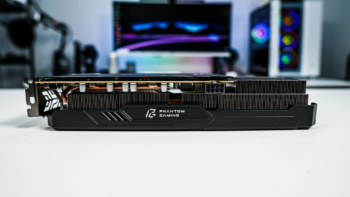

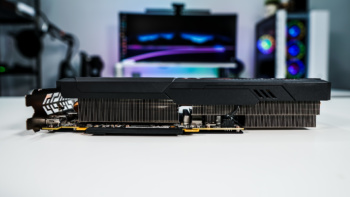

Looking at the card from the side we can see the two large heatsink stacks which sit below the cooling fans. These are connected by copper heatpipes. On the side of the card that will show out of your case we have a Phantom Gaming logo, which will light up when you have your system powered on. Another thing we notice is that the PCB of card does not fully extend the length of the card. Towards the end of the PCB there is an 8-pin PCI-Express power connector.

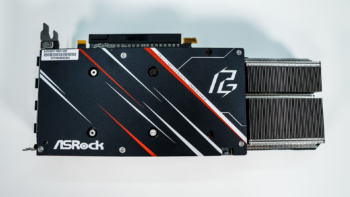

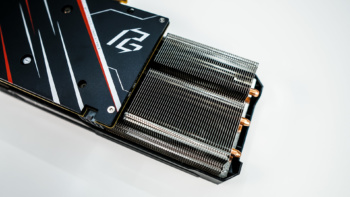

Flipping the card over to the back we have our metal backplate which has the Phantom Gaming “streaks” as well as the Phantom Gaming and ASRock logos. It looks quite good. We can also see the extended heatsink and the heatpipes that go through it.

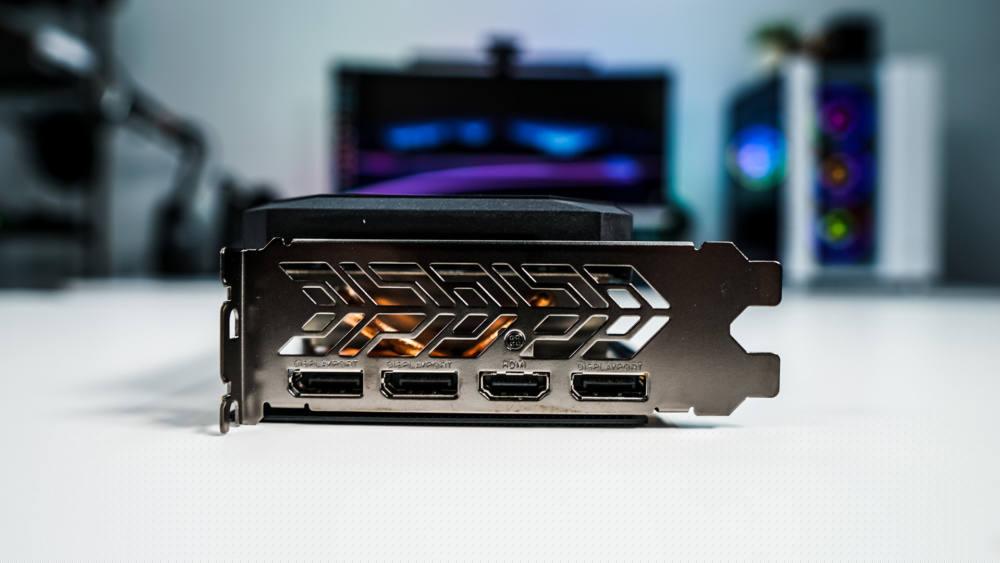

As far as connections go on the card we have the standard three DisplayPort and a single HDMI. While the card is slotted as a 2-slot card with the larger cooler it is actually a 2.7 slot card.
