Gigabyte Z590 Vision G Motherboard Review

Testing – SATA, USB, & Power

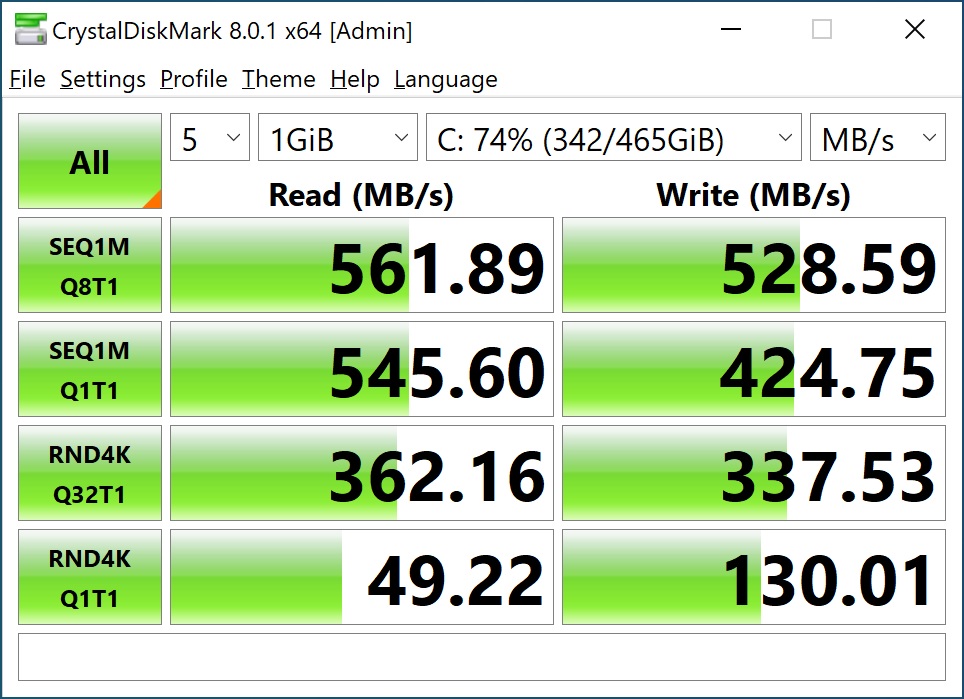

To test SATA, M.2, and USB speeds we make use of CrystalDiskMark hard drive benchmarking tool. First up is our SATA drive which is the Samsung 870 EVO.

z590 vision g ssd

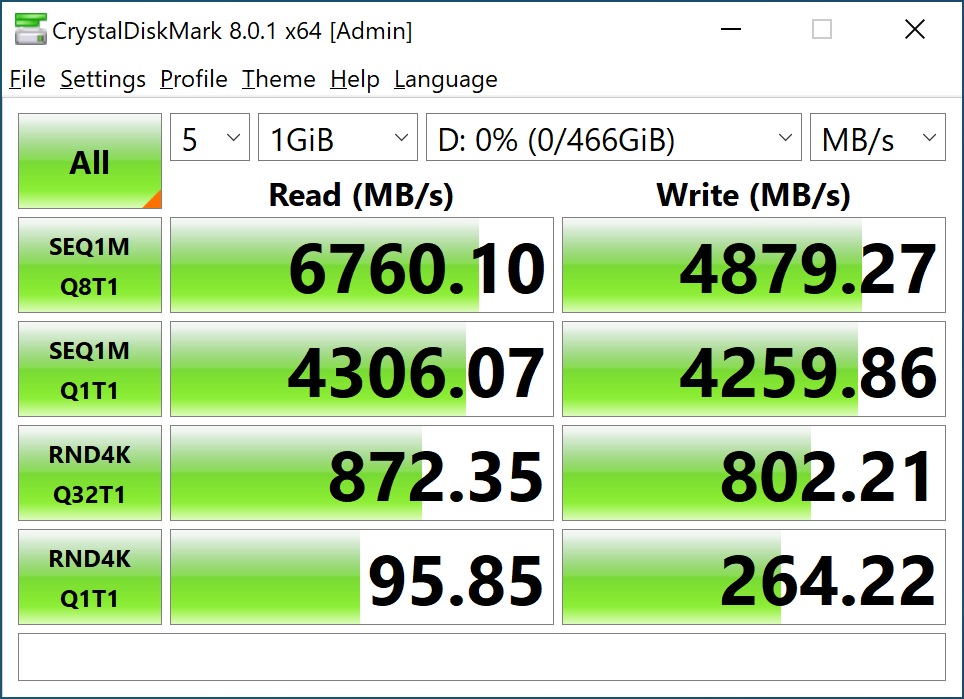

For M.2 testing we will using the PCI-Express 4.0 (top) slot. We use the Samsung 980 Pro drive.

z590 vision g nvme

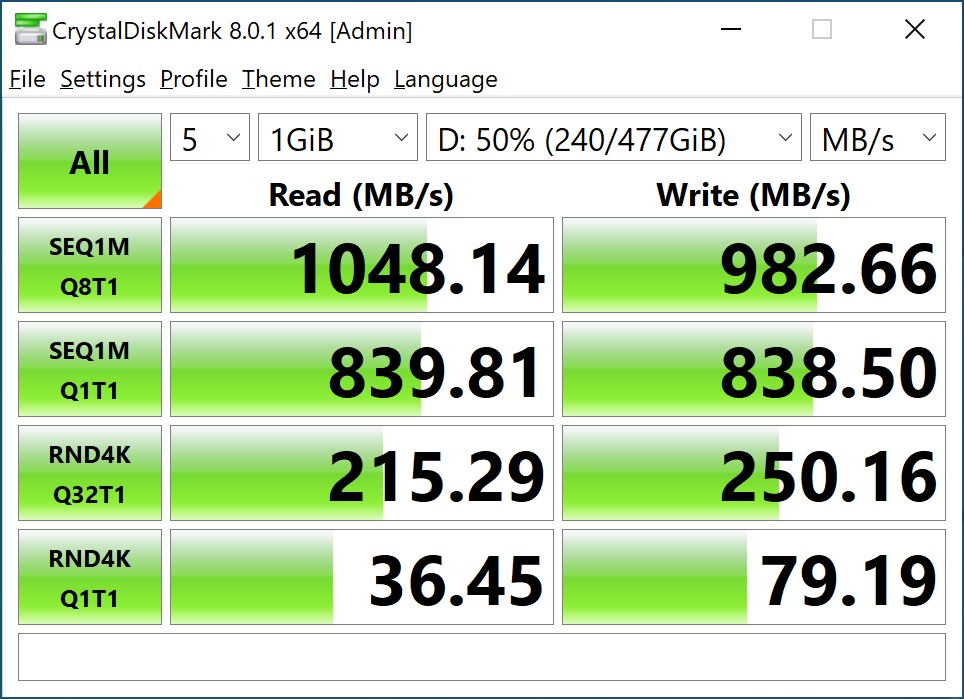

For USB testing we have the ORICO M.2 Solid State Drive Enclosure, which is USB 3.2 gen 2 (1000 MB/s). We used the Type-C connection on the board.

z590 vision g usb

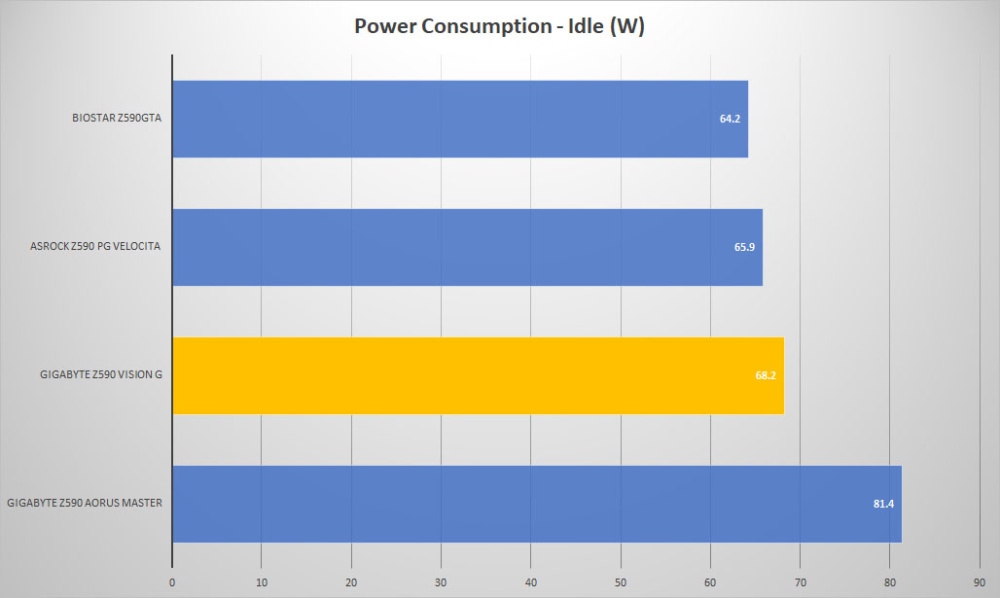

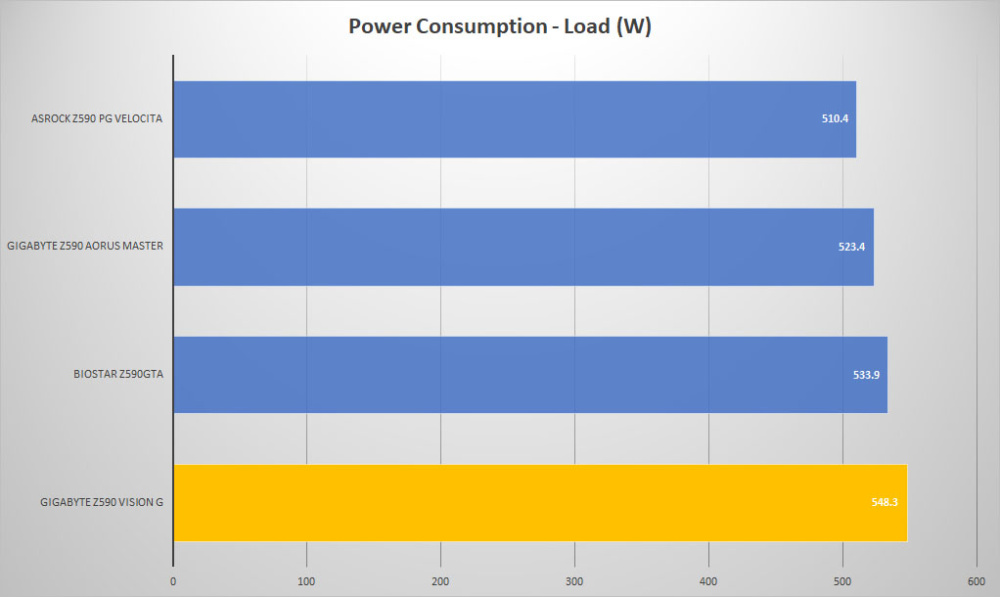

Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 10 desktop and the load test is taken while running AIDA64’s system stability test with GPU’s enabled. Remember these values are for the entire system.

gigabyte z590 vision g power idle

gigabyte z590 vision g power load
