Lighting on the MSI MAG Pano 120R PZ PC Case

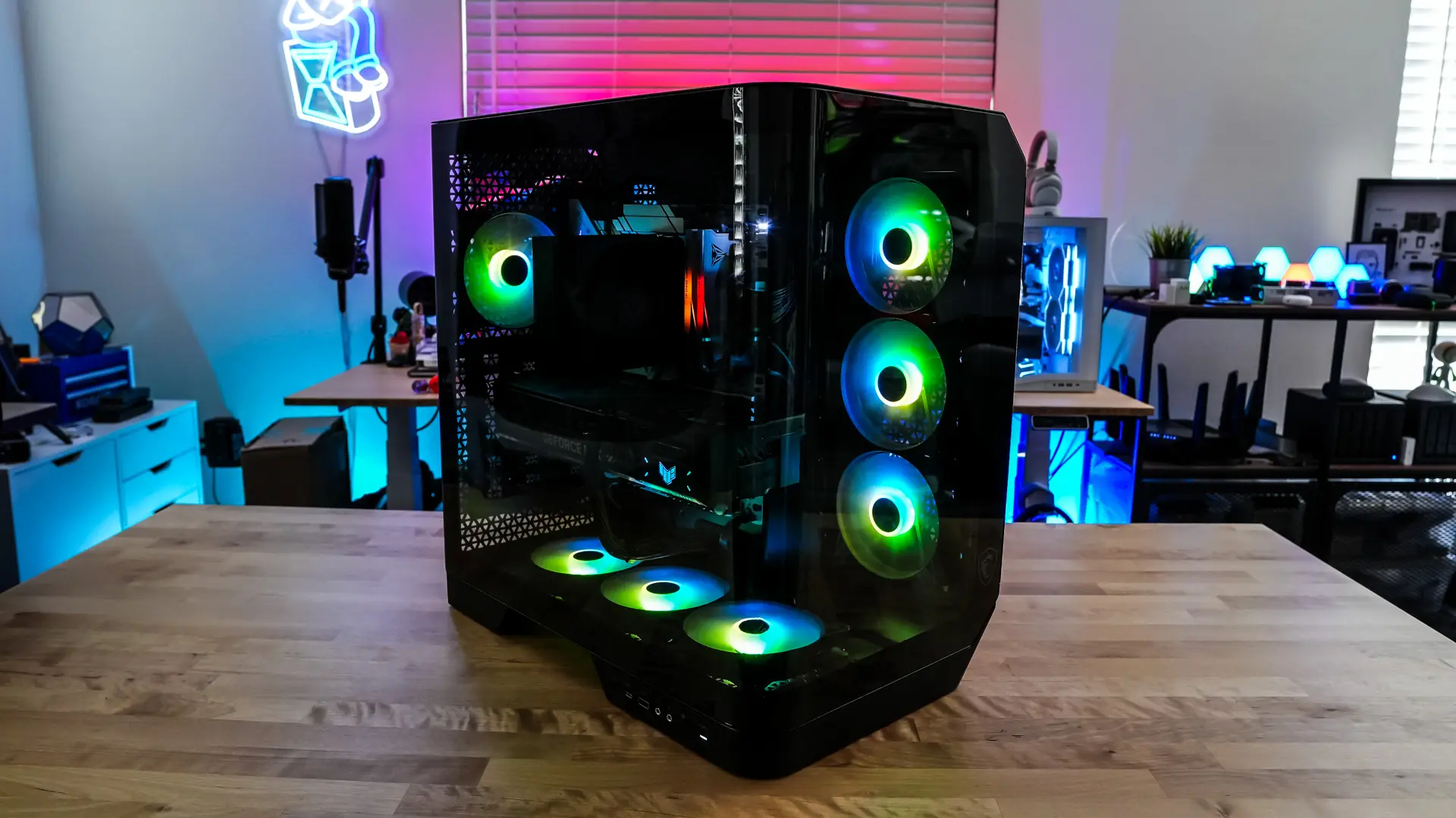

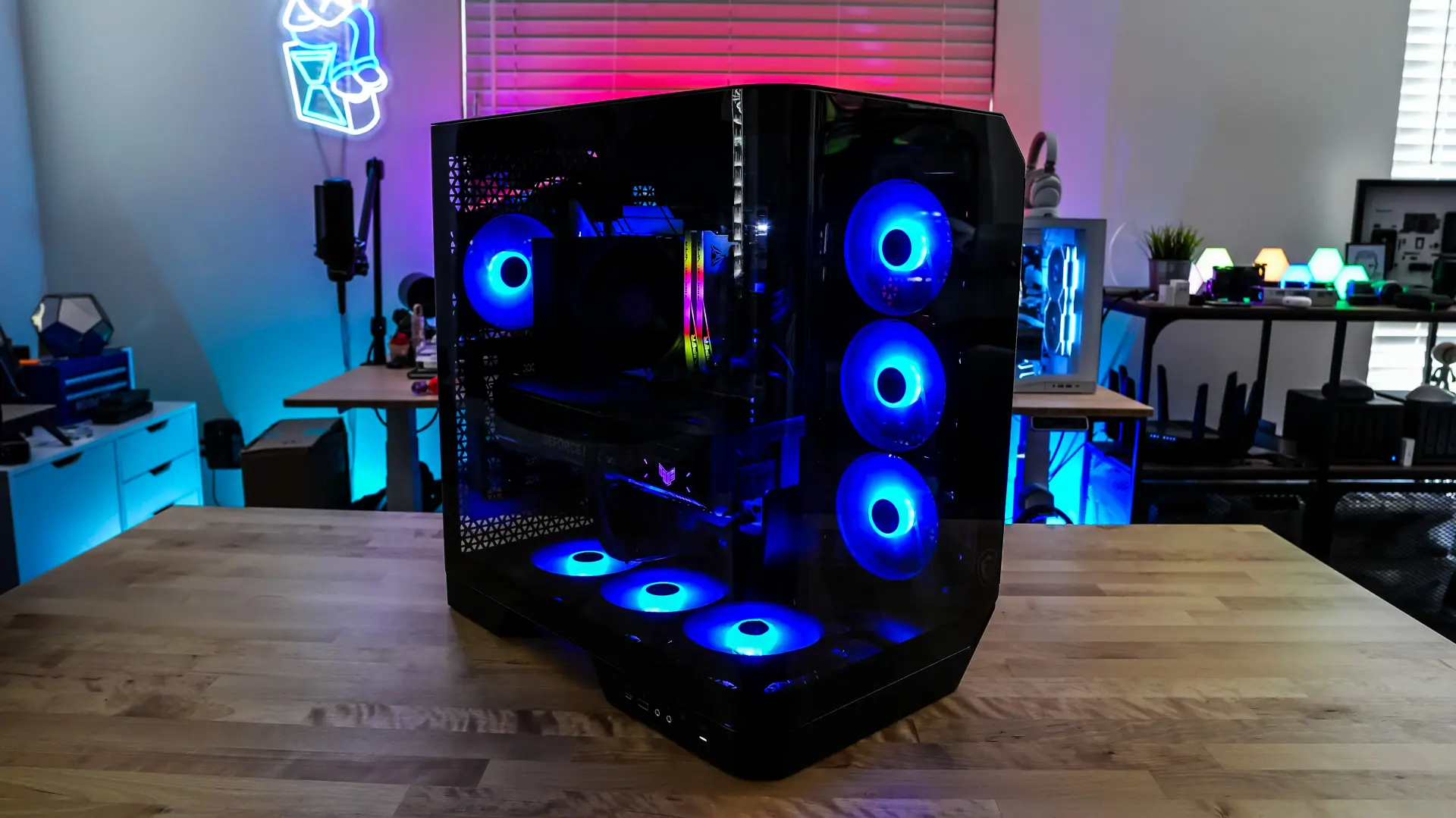

If you’ve connected everything correctly (just the two SATA cables coming from the controller), you’ll notice all seven included fans on the case light up nicely. These fans are pre-wired to the LED button the front of the case. This allows you to cycle through colors and effects. With all of the fans on this case really looks amazing! You can also pass-through the ARGB signal to your motherboard so you can control the effects via software.
MSI MAG Pano 120R PZ PC Case Performance
Our test system for this case is based off the following components…
Processor: AMD Ryzen 5 9600X
Motherboard: ASUS ROG STRIX B850-A Gaming WiFi
Graphics Card: ASUS TUF Gaming GeForce RTX 5070 OC Edition
Memory: Patriot Viper Elite 5 TUF Gaming RGB 48GB
Storage: Samsung 870 QVO
Cooling: Cooler Master Hyper 212 Black Edition, 7 MSI fans
PSU: MSI MAG A1000PLS PCIE5

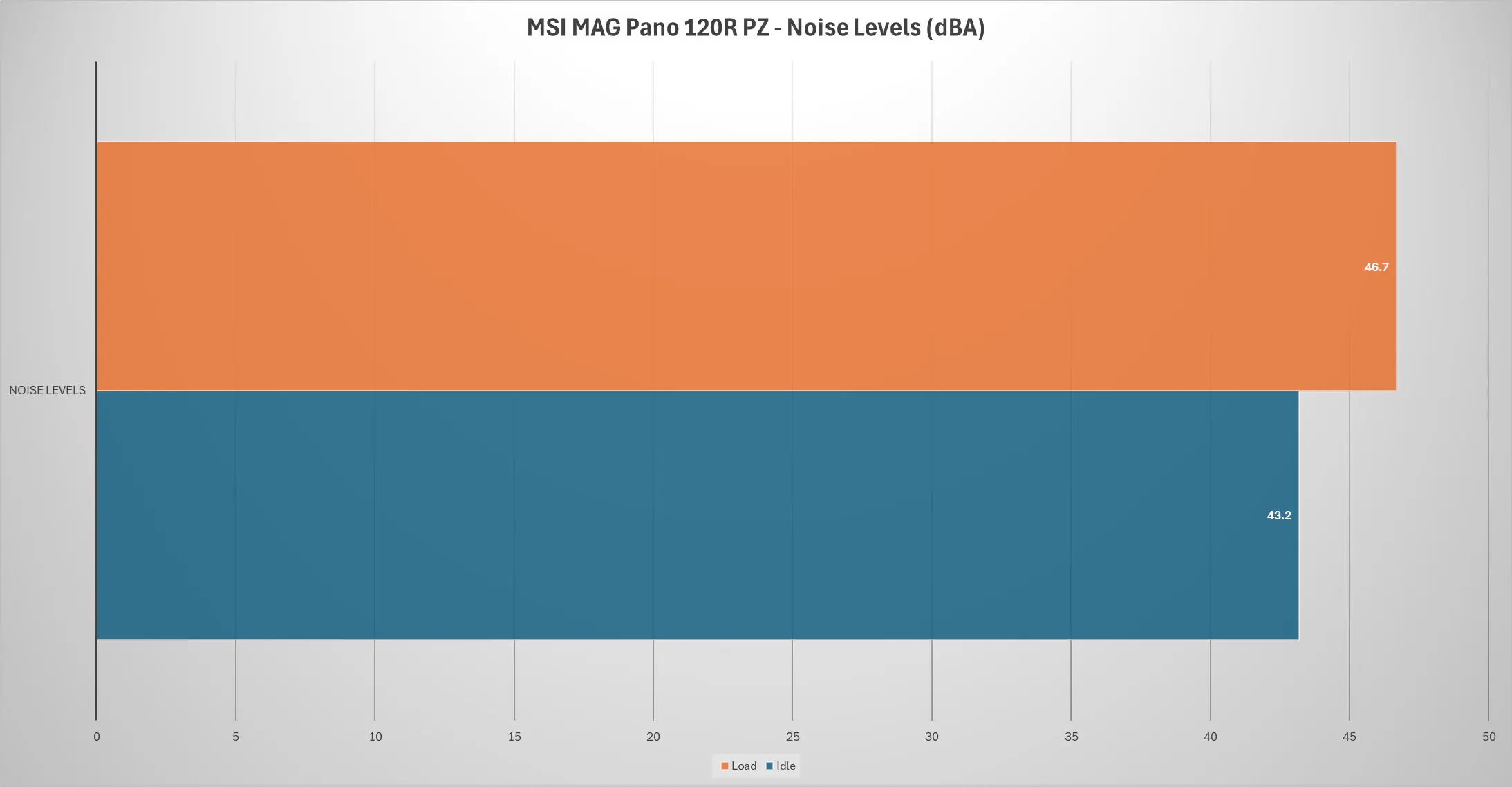

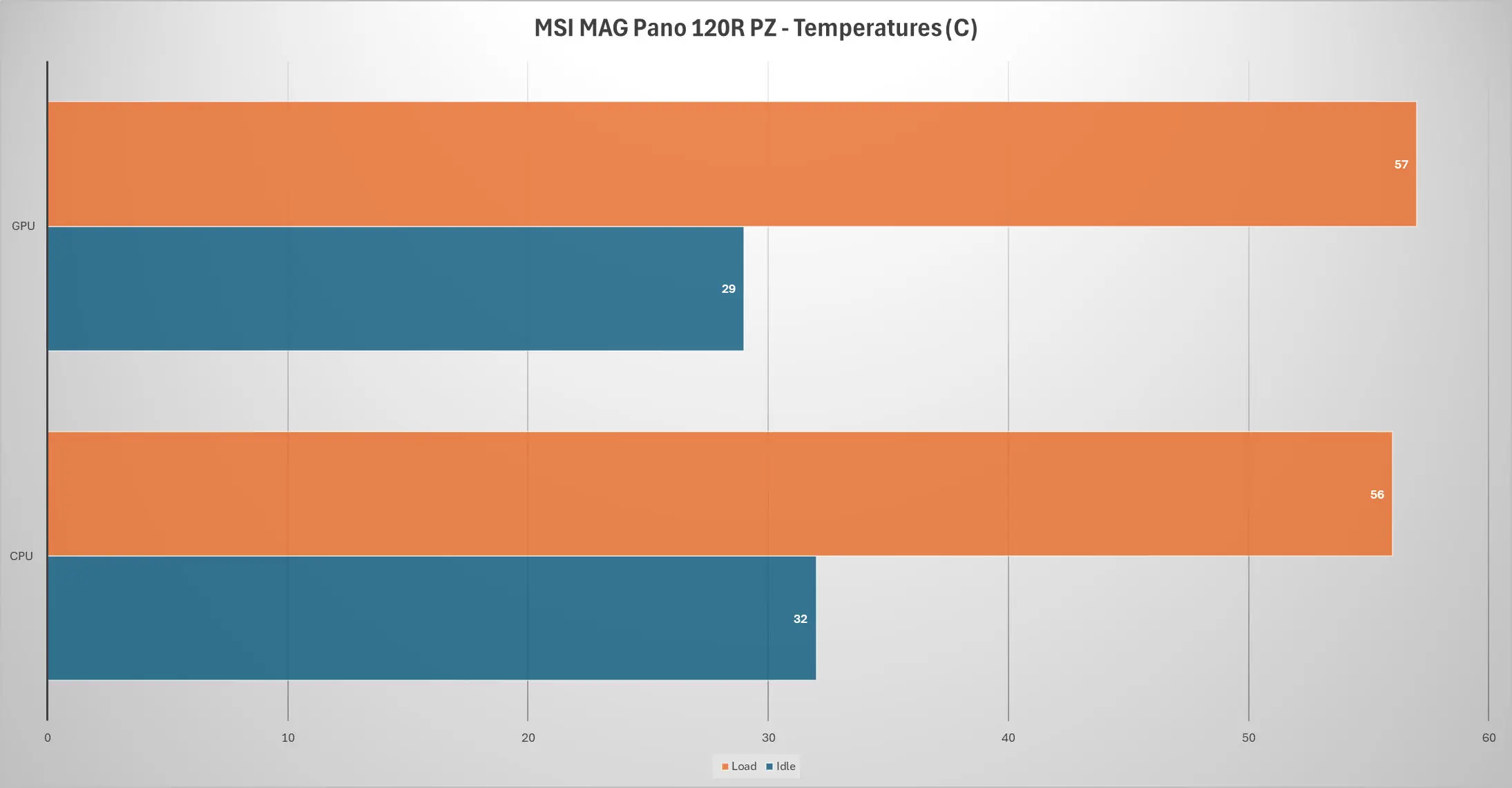

We will be using AIDA64 to measure temperatures for the CPU and graphics card and a RisePro Sound Level Meter to record sound levels. For idle we just have the system sitting on the Windows 11 desktop and for load we run the AIDA64 system stability test (CPU), while at the same time we run a 3DMark Stress test for 1 hour.
