Testing – CrystalDiskMark & AS SSD

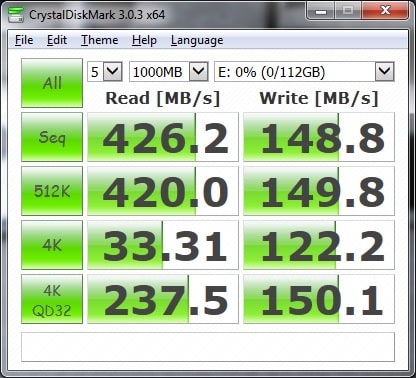

CrystalDiskMark is our next test and it has a sequential read / write test as well as a 512k and 4k random read / write test. The SSD is up first.

Here we can see sequential read and write scores of 426.2 MB/s and 148.8 MB/s respectively. Now for the 1TB hard drive.

Again great scores right up around 115-116 MB/s.

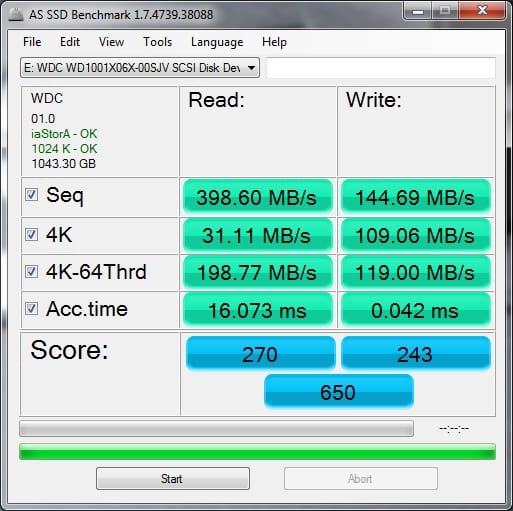

Our final test is the AS SSD Benchmark. This benchmark contains four synthetic as well as three practice tests. Again, the SSD test is first.

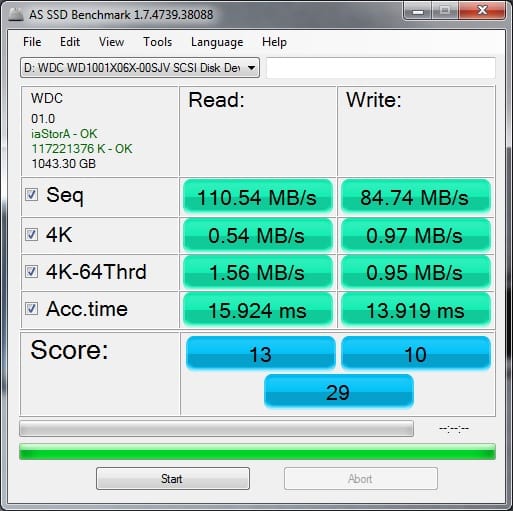

Here we see more good results. Now for the HDD test.

Again, right up to what we expect.
