InWin 905 Case Review

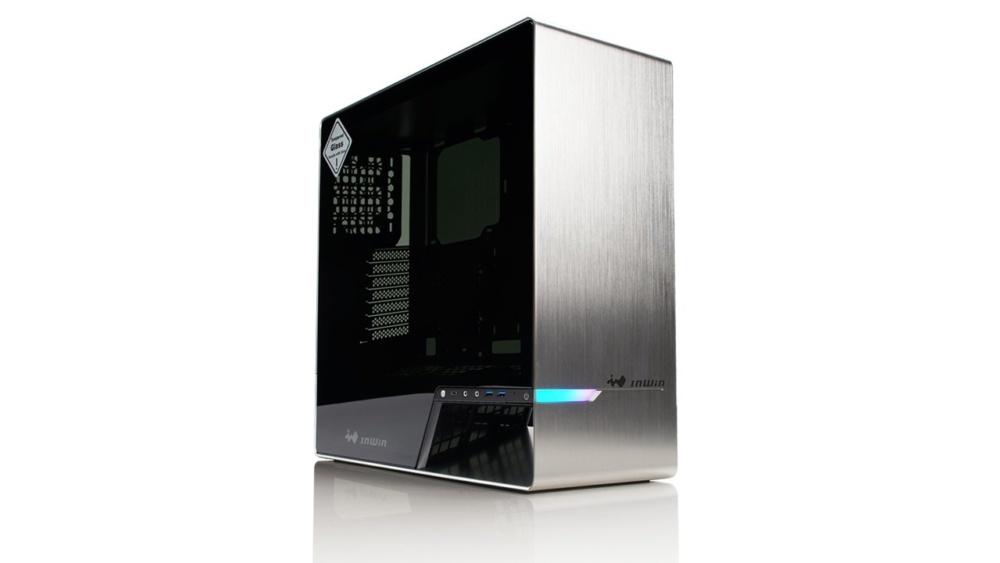

InWin is no stranger here at ThinkComputers. We recently took a look at their small A1 Plus, and have always been impressed with their offerings. Jump back to CES 2019, and we got our first look at the InWin 905, a large mid-tower case with some great looks and features. Well, today we have the 905 in-hand, and we will be taking a closer look at this case, from the awesome aluminum exterior, to the unique cooling layout. Was the final product as impressive as what we saw in Las Vegas? Follow along to find out!

Special thanks to InWin for providing the 905 review sample!

InWin 905


Model 905
Part Number IW-905-SILADD
Colors Silver (Addressable RGB)
Case Types Mid Tower
Materials Aluminium, Tempered Glass, SECC
M/B Compatibility 12” x 13” E-ATX , ATX , Micro-ATX , Mini-ITX
Expansion Slots PCI-E x 7
Maximum Compatibility VGA Card Length : 330mm
CPU Heatsink Height :160mm
I/O Ports USB 3.1 Gen 2 Type-C x 1
USB 3.0 x 2
HD Audio
LED Lighting Control Switch or OLED Screen
Internal Drive Bays 1 x 3.5"
2 x 2.5" (2 pre-installed, max. up to 4)
Thermal Solution Compatibility 1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Front Fan / 240mm Radiator
2 or 3 x 120mm Bottom Fan /240 or 360mm Radiator
Power Supply Compatibility PSII : ATX12V
– Length up to 230mm
Product Dimension
(H x W x D)
with button & stand height
502 x 215 x 508mm
19.7" x 8.4" x 20"
Package Dimension
(H x W x D)
337 x 611 x 592mm
13.2" x 24" x 23.3"
Net Weight 11.98kg / 26.4lb
Gross Weight 14.26kg / 31.44lb
* InWin products comply with RoHS regulations
* Specifications may vary based on different regions
* Pre-installed glass panel. Extra fee for closed panel.

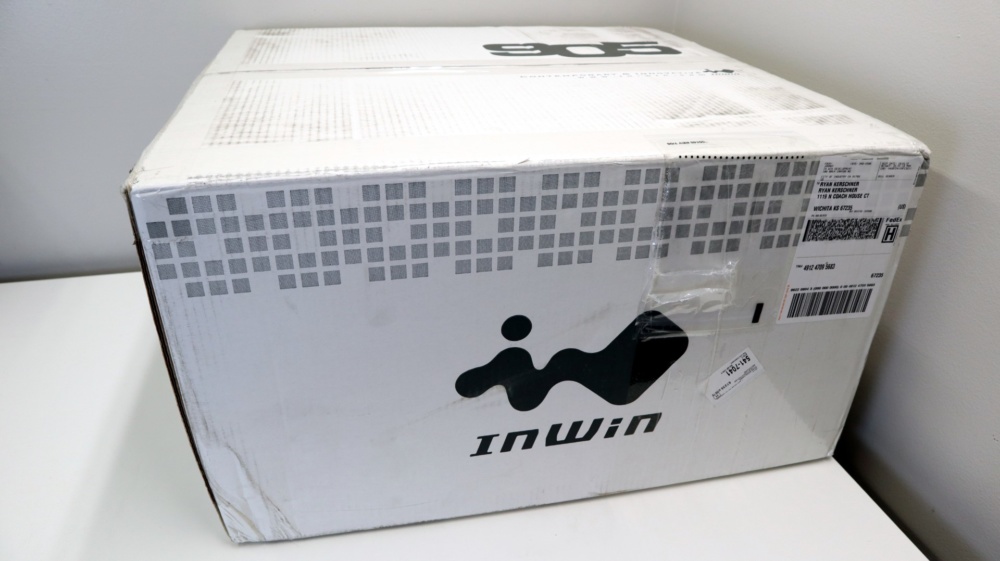

The 905 came to us much like any other case. A mostly white cardboard box with a bit of InWin branding and design work provides a safe outer shell for the case inside.

InWin 905

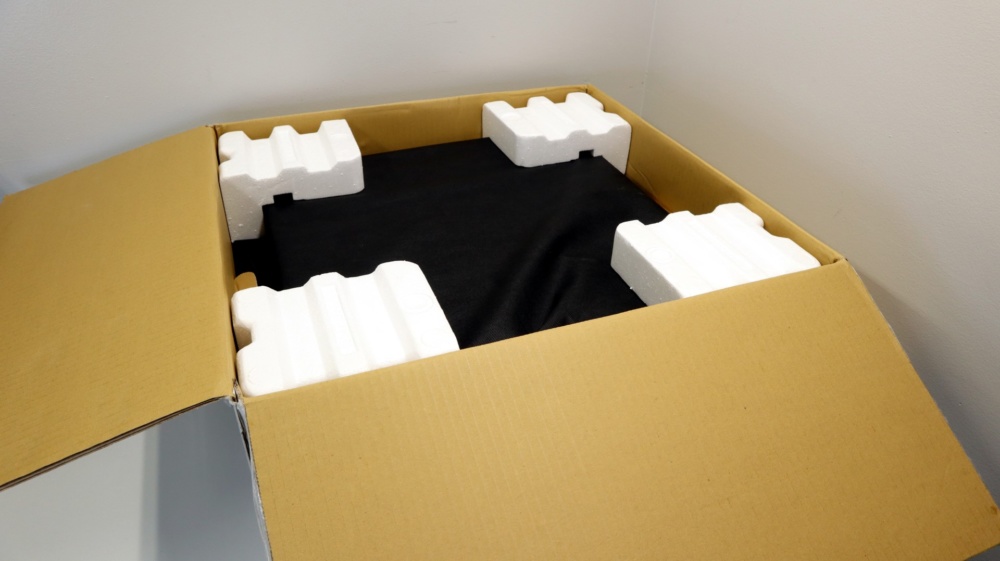

With the box opened up, we can see that the case itself is wrapped in a cloth material and held in place by molded foam blocks at each corner. We really like the cloth cover for the case, as it feels like InWin takes a bit more pride with the 905 and spares it the basic plastic bag treatment.

InWin 905

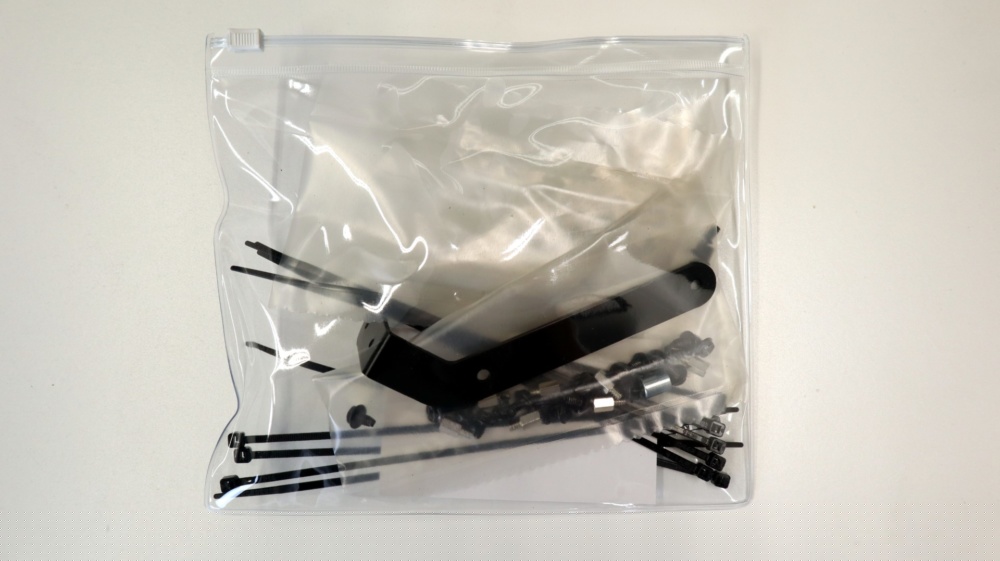

A zippered plastic pouch is included with the case, and contains various screws and standoffs for component installation. There is also a video card support bracket, and a few zip ties to assist with cable management.

InWin 905
