Lexar NM700 M.2 NVMe Solid State Drive Review

Testing – Anvil, PCMark 8 & AIDA64

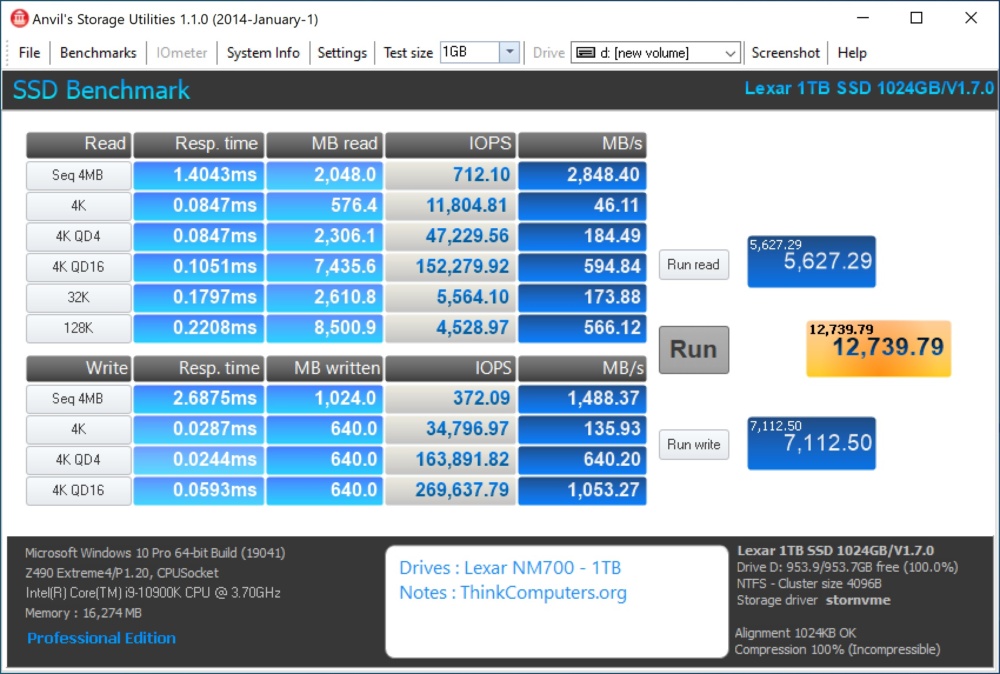

The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score.

lexar nm700 anvil

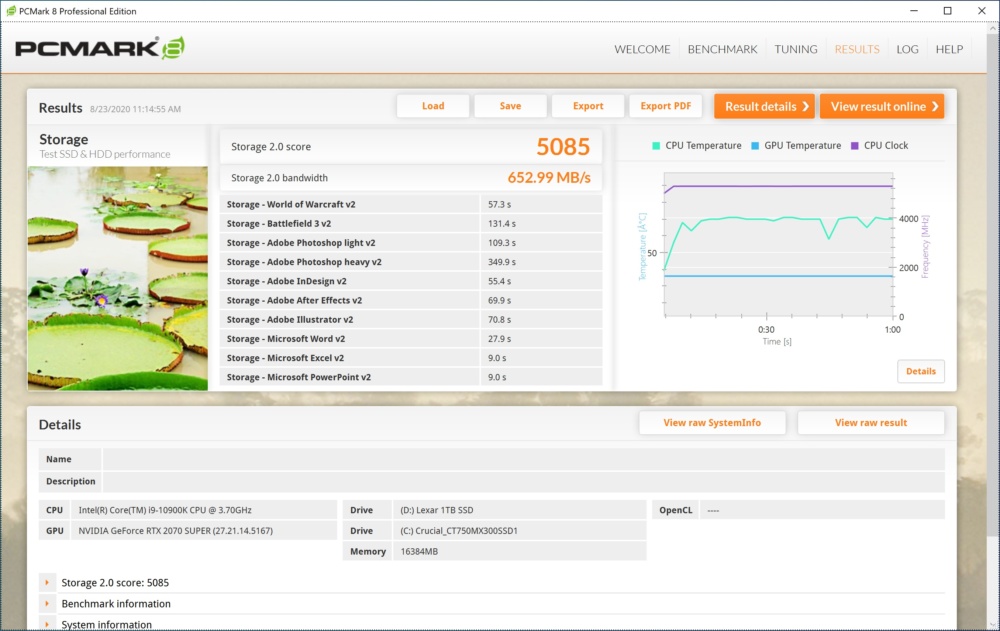

Next up is PCMark 8, we will be running the typical Storage Benchmark.

lexar nm700 pcmark8

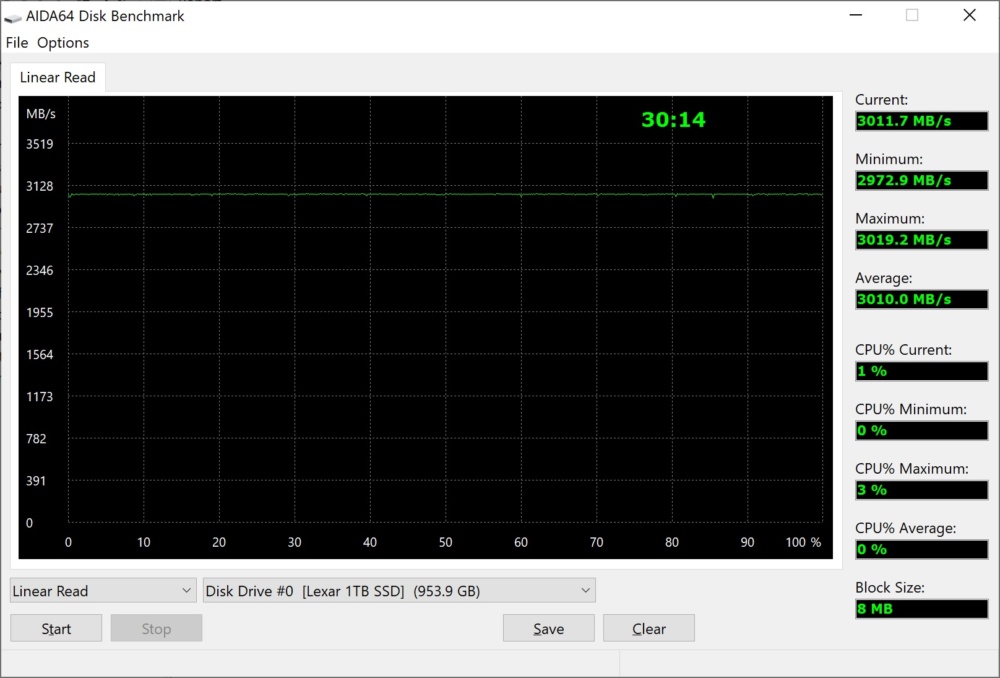

We have added back AIDA64’s Disk Benchmark to our testing. The linear test will actually scan from the first physical sector to the last on the test drive. This gives a good representation of sustained read / write operations. We will be running the Linear Read test using a 8MB block size.

lexar nm700 aida read

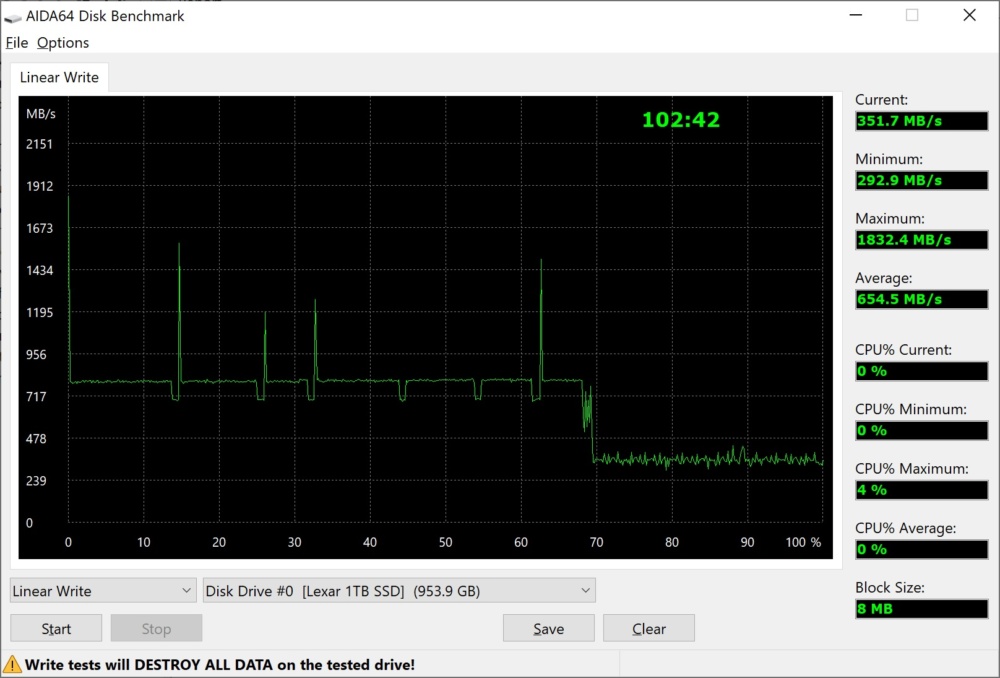

We then run the Linear Write test using the same 8MB block size.

lexar nm700 aida write
