XFX Launches Ultra High-End Radeon RX 7900 XTX Phoenix Nirvana GPU For $1000+

XFX has recently introduced its latest top-tier offering, the Radeon RX 7900 XTX Phoenix Nirvana GPU. This cutting-edge graphics card boasts a triple slot and triple fan cooling system. Previously teased, it now stands as one of the most luxurious and high-end solutions, showcasing the AMD Navi 31 XTX GPU core. Equipped with 6144 cores and a 24 GB GDDR6 memory interface, it operates at up to 2615 MHz, featuring a factory overclock of +117 MHz compared to the standard variant.

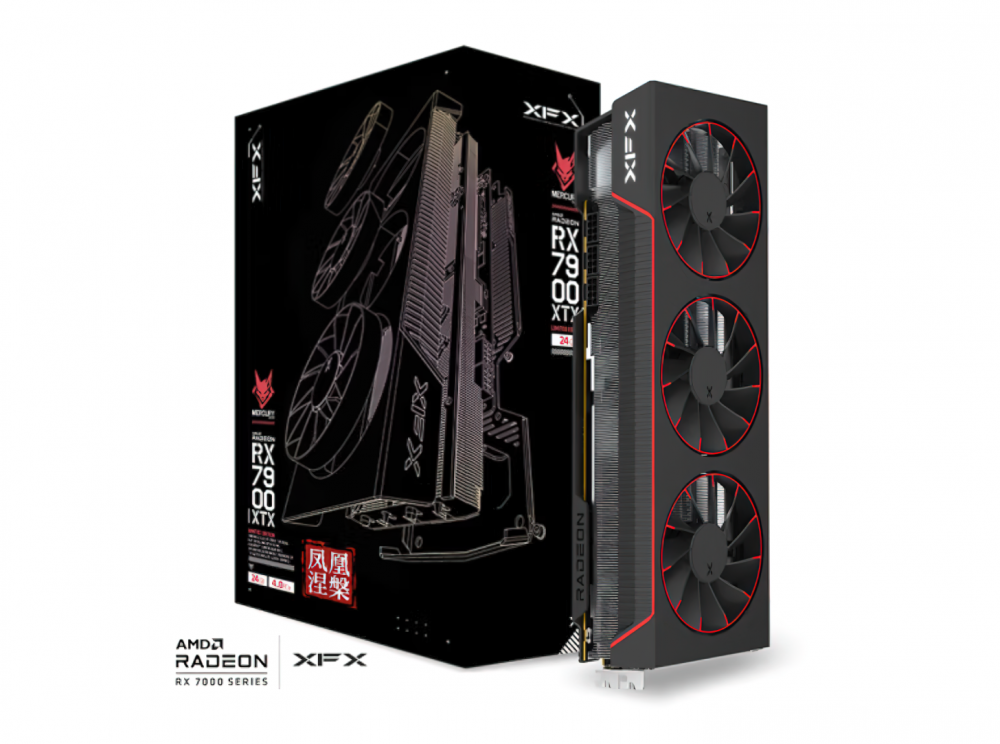

XFX Radeon RX 7900 XTX Phoenix Nirvana GPU 5 g standard scale 6 00x Custom 1456x1084 1

The cooling mechanism is derived from the Ghost Thermal 4.0 design, incorporating 216 aluminum fins, eight 6mm copper heat pipes, and a spacious vacuum vapor chamber baseplate encompassing both the GPU and VRAM modules. This system utilizes three sizable 100mm fans, employing magnetic levitation technology according to the company. Each fan can reach speeds of up to 3200 RPM, delivering 70.08 CFM of airflow and 4.88 mmH20 air pressure. Additionally, all three fans are PWM-controlled.

XFX Radeon RX 7900 XTX Phoenix Nirvana GPU 7 g standard scale 6 00x Custom 1456x1084 1

The vapor chamber boasts a surface area of 62,586mm² and an impressive thermal conductivity rating of 15,000 W/mk. The heatsink as a whole covers a surface area of 10,603,980mm². Additionally, XFX utilizes Honeywell’s PTM 7950 thermal pad on the GPU, offering a thermal conductivity of 8.5W/mk. Regarding the graphics card PCB, the XFX Radeon RX 7900 XTX Phoenix Nirvana features a robust 14+2+1 phase design, powered by a triple 8-pin connector interface.

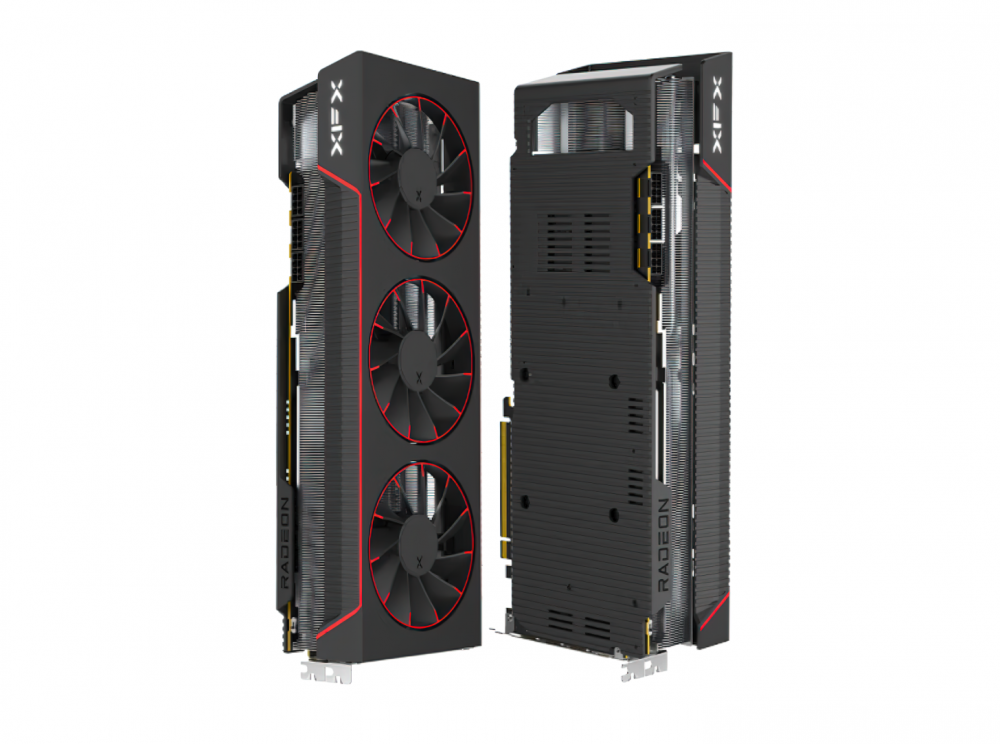

XFX Radeon RX 7900 XTX Phoenix Nirvana GPU 6 g standard scale 6 00x Custom 1456x1084 1

The backplate and side of the card are coated entirely in matte black, while judging from the rear I/O picture, this card appears to be a quad-slot behemoth. Its display outputs will include triple DP2.1 and a single HDMI port. Measuring at 346x132x68 mm, it surpasses XFX’s existing flagship, the Radeon RX 7900 XTX Speedster MERC310, which measures 344x128x57mm. Currently, the XFX Radeon RX 7900 XTX Phoenix Nirvana is exclusively available in China, priced at 7719 RMB or $1091 US. This price point reflects a significant premium. In the US, most custom models of the 7900 XTX are priced below $900 US at present.

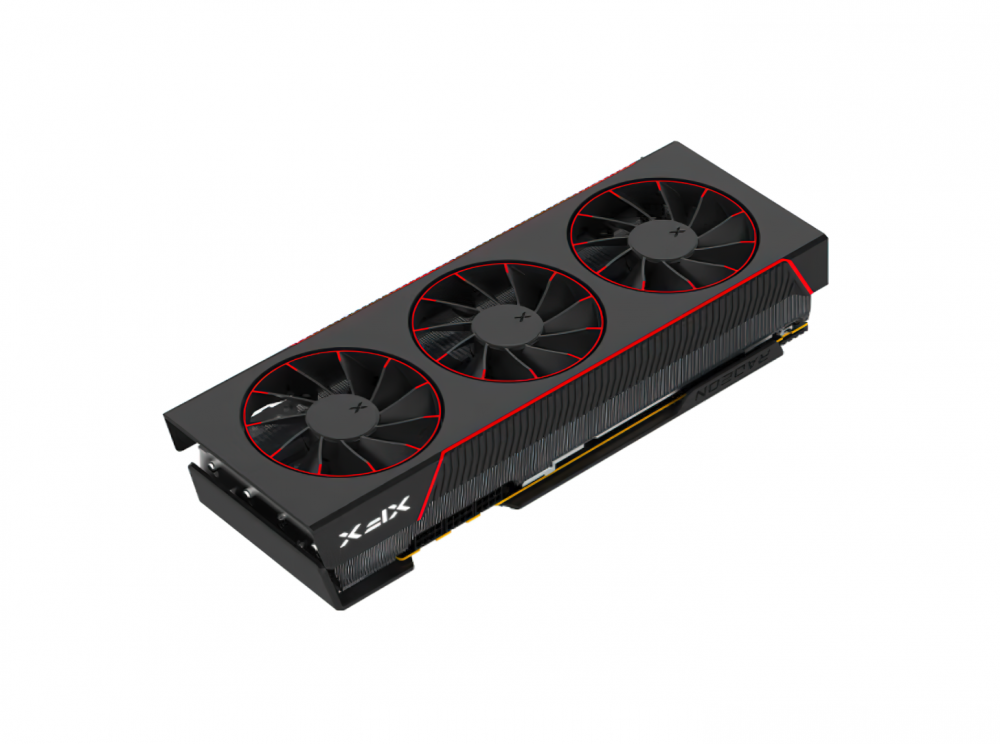

XFX Radeon RX 7900 XTX Phoenix Nirvana GPU 8 g standard scale 6 00x Custom 1456x1084 1

Source: XFX JD Store
