Performance
Here is the breakdown of the test system we use for cases.
Processor: AMD Ryzen 5 3600X
Motherboard: ASUS Prime X570-Pro
Graphics Card: EVGA GeForce RTX 3060 XC Gaming
Memory: G.SKILL Trident Z Royal DDR4-3200 16GB
Storage: Lexar NQ100 480GB
Power Supply: Thermaltake Toughpower GF1 750W
CPU Cooler: be quiet! Pure Rock Slim 2
Case: HYTE Y40
We will be using AIDA64 for temperature readings and a RisePro Sound Level Meter to record sound levels. Sound levels are taken 5 inches from the front of the case as well as from the side of the case. Keep in mind with this case the fan speeds remain the same. These are not PWM fans so even when we put full load on the system the fans will not ramp up like other cases.

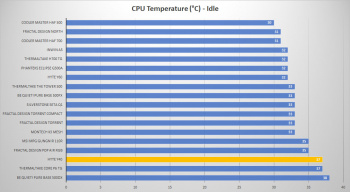

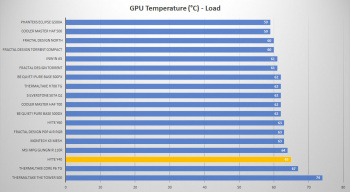

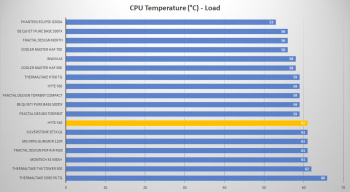

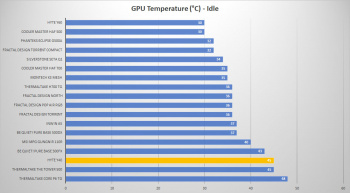

Idle readings are taken on the Windows 10 desktop after the system has been on for 1 hour. Load readings are taken using AIDA64’s system stability test with both the CPU and GPU selected. First up we have our temperatures for both the CPU and GPU.

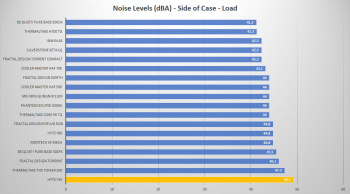

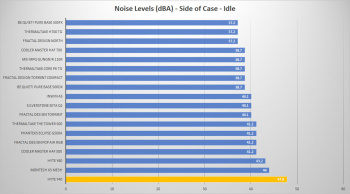

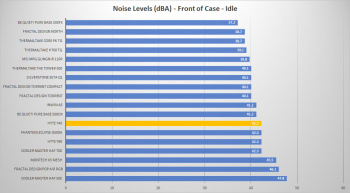

And for our noise levels…
