AMD officially launched their Radeon RX 6600 XT graphics card not that long ago. This card is really meant for 1080p gamers who want over 60 FPS in the latest titles with the settings turned all the way up and the ability to play esports titles at even higher frame rates. The RX 6700 XT features AMD’s 7nm Navi 23 that has 2048 stream processors across 32 RDNA2 compute units as well as 8GB of GDDR6 across a 128-bit memory bus. You are also going to get real-time ray tracing with 32 Ray Accelerators. Today we are checking out ASRock’s Radeon RX 6600 XT Phantom Gaming D 8GB OC, which has clocks of 2188 MHz Base, 2428 MHz Game, 2607 MHz Boost. These overclocks will give you an edge over a stock RX 6700 XT and you are getting a pretty slick design with RGB elements and ASRock’s Phantom Gaming 3X cooling system. Is this the RX 6600 XT to get? Read on as we take a look…
Special thanks to ASRock for providing us with the Radeon RX 6600 XT Phantom Gaming D 8GB OC Graphics Card to review.
Features
Clock: GPU / Memory
Boost Clock: Up to 2607 MHz / 16 Gbps
Game Clock: Up to 2428 MHz / 16 Gbps
Base Clock: 2064 MHz / 16 Gbps
Key Specifications
7nm AMD Radeon™ RX 6600 XT
8GB GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
1 x 8-pin Power Connector
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Stylish Metal Backplate
Striped Axial Fan
Air Deflecting Fin
Ultra-fit Heatpipe
0dB Silent Cooling
Packaging
The Radeon RX 6600 XT Phantom Gaming D 8GB OC comes in ASRock’s typical graphics card box. On the front we have a large Phantom Gaming logo and some of the main features a listed.
Flipping over to the back we have a few different pictures of the card detailing many of its features. There is also a list of specifications and key features.

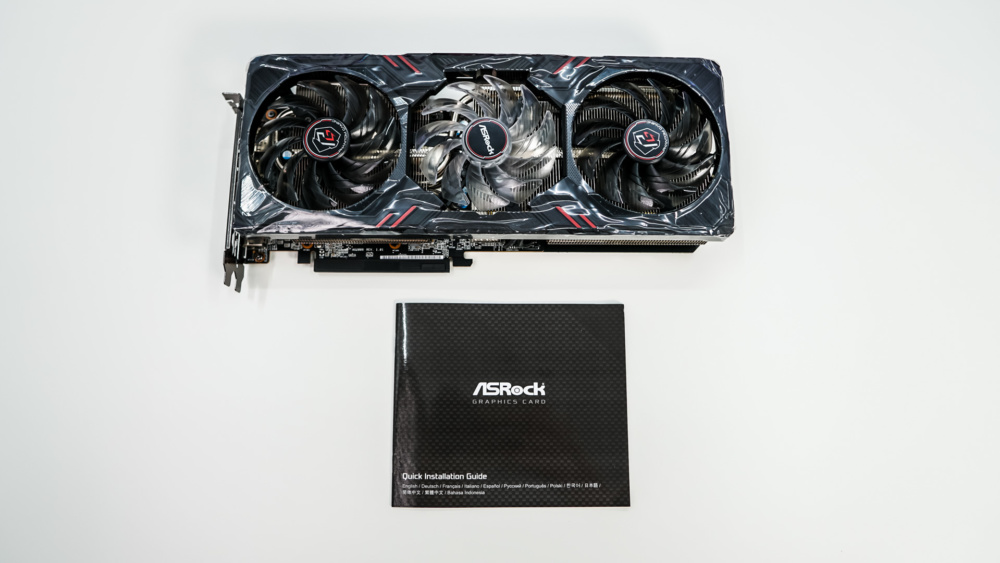

Getting everything out of the box all we have is the card itself and a quick installation guide.
