MSI Radeon RX 5500 XT Gaming X Graphics Card Review

Power Consumption

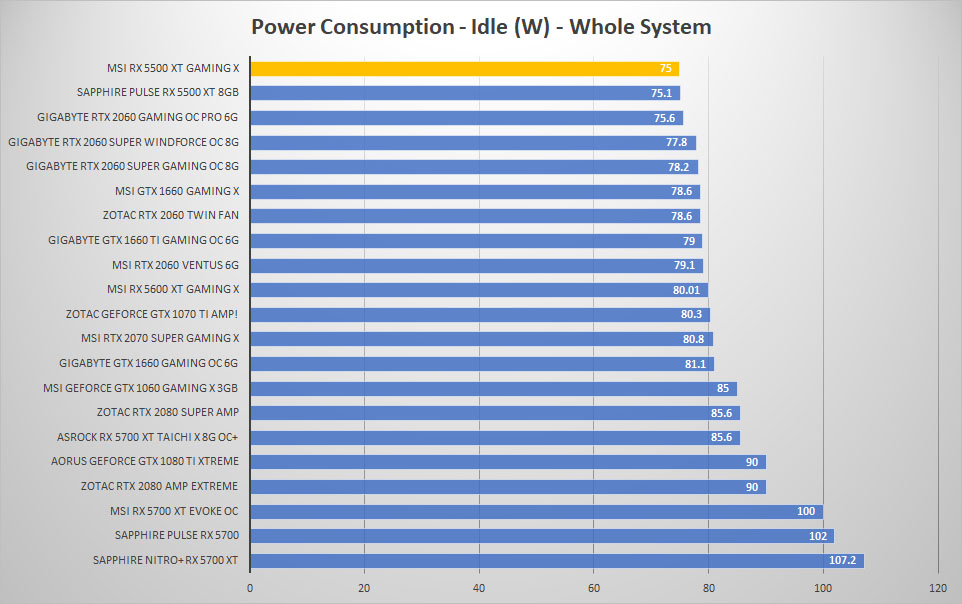

To test power consumption we will be using a Kill-A-Watt meter. This will measure the entire system power draw at any given moment. We first run an idle test on the Windows 10 desktop at 1 hour of inactivity.

msi rx5500xt power idle

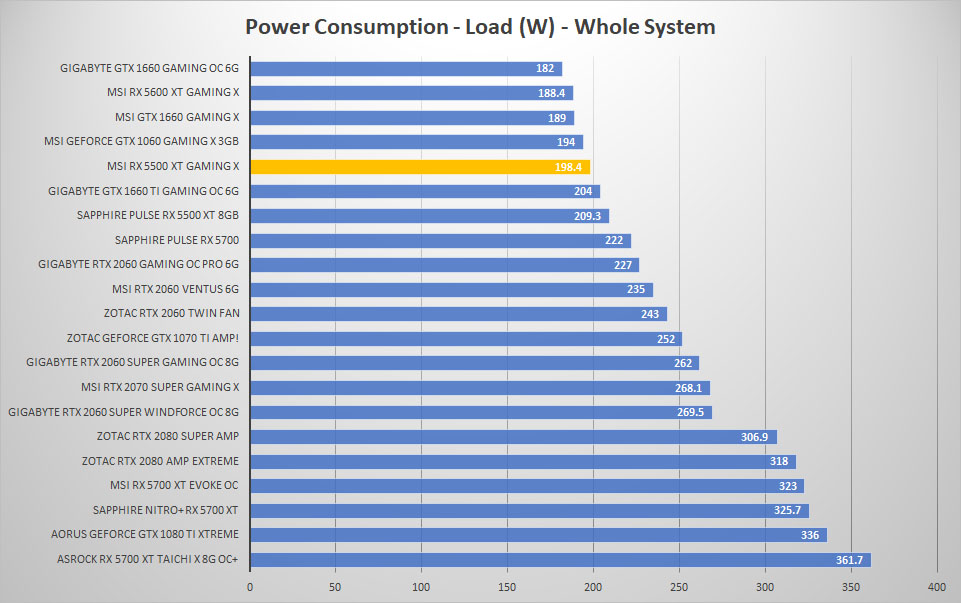

Then we run the AIDA64 system stability test with only the GPU selected, which puts 100% load on the GPU.

msi rx5500xt power load

Temperatures

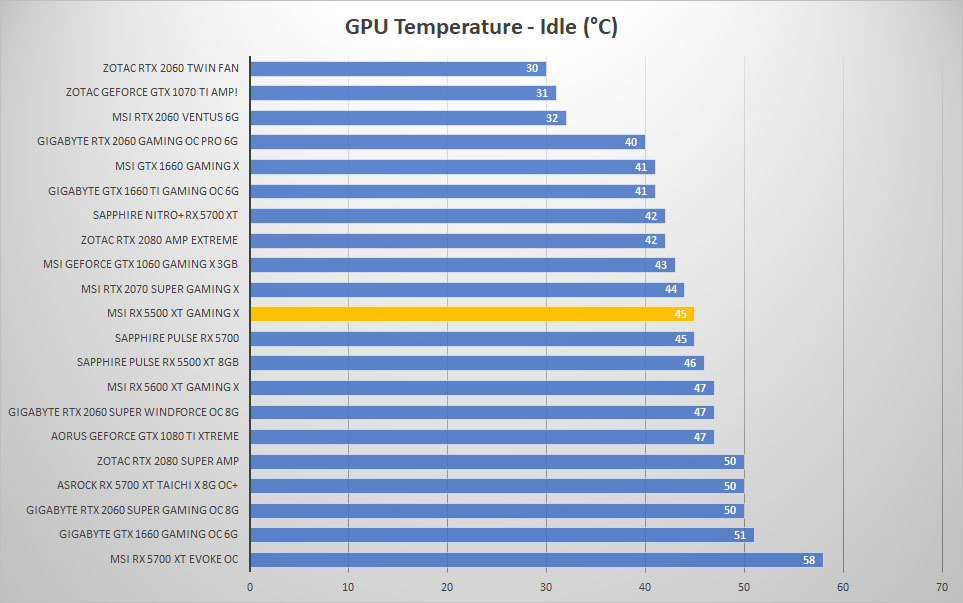

For our temperature testing we run two different tests. The first is idle with our system sitting on the Windows Desktop.

msi rx5500xt temp idle

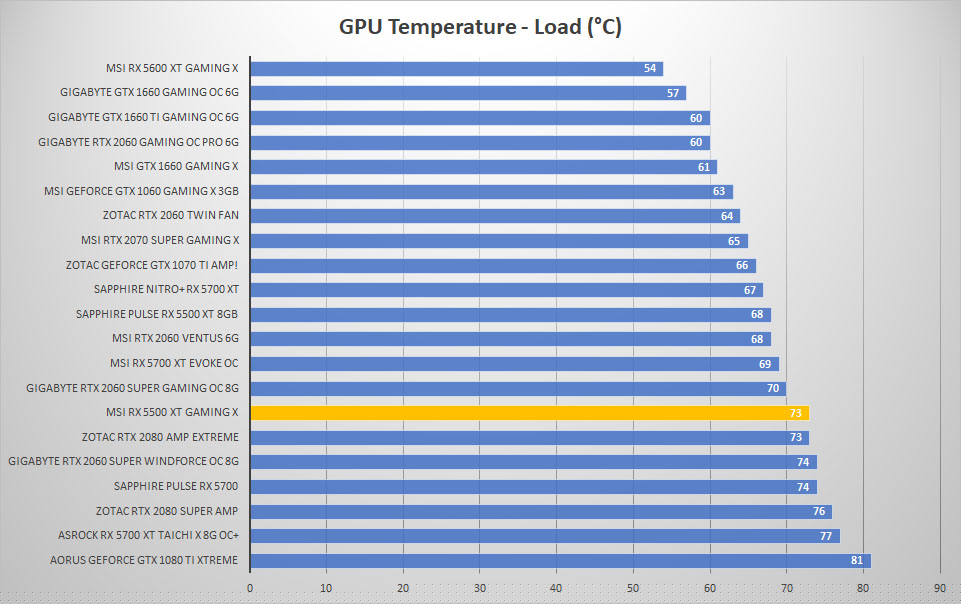

The second is running the AIDA64 system stability test with only the GPU selected.

msi rx5500xt temp load
