System Overview & Testing

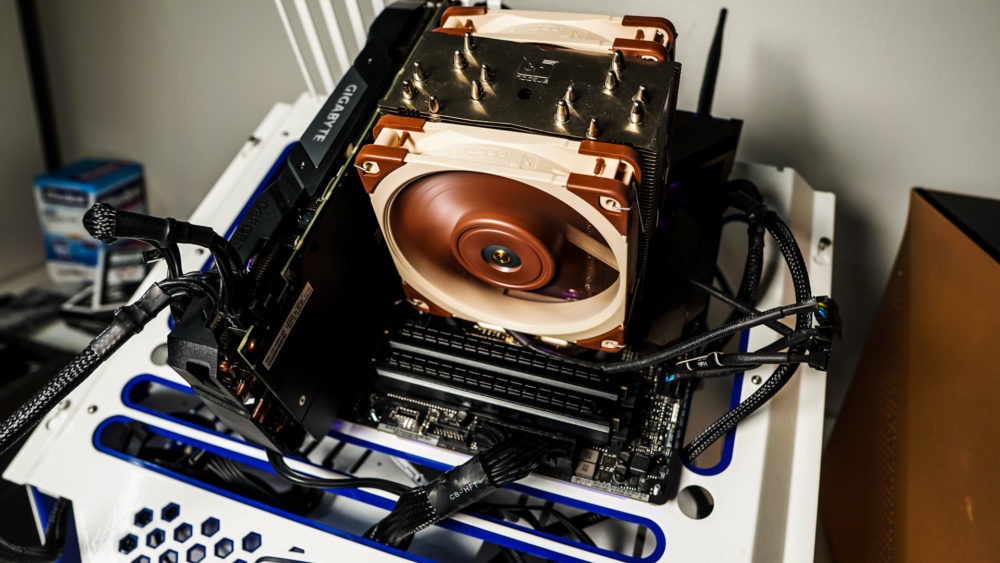

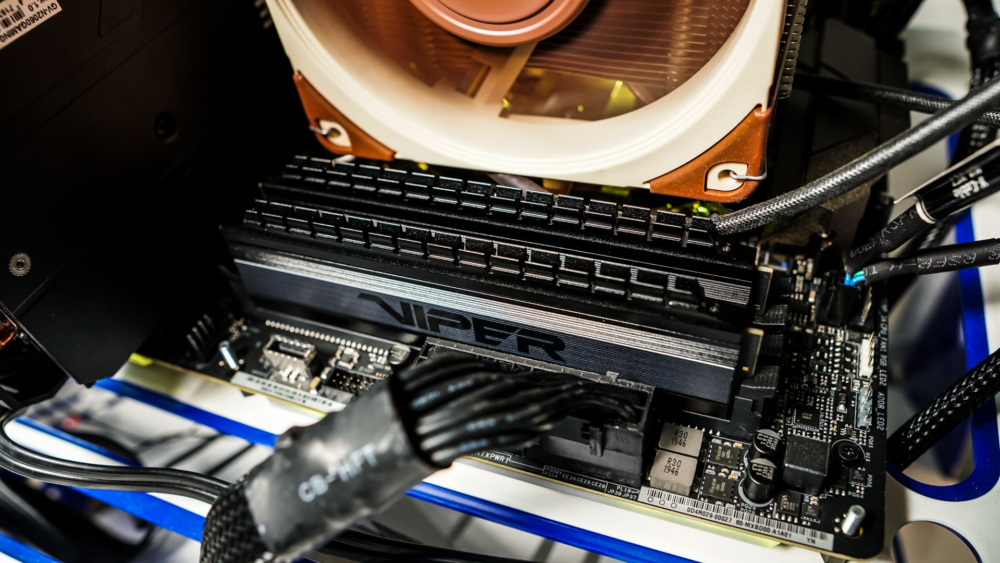

We installed the Viper 4 Blackout in our B550 test system. The first thing I noticed when I installed the memory was that it matched our motherboard quite well. Being all black with a black PCB the Viper 4 Blackout will pretty much go with any motherboard, unless it is all white.
Our B550 test system is made up of the following hardware…
Processor: AMD Ryzen 9 3900X
Graphics Card: Gigabyte GeForce RTX 2060 Gaming OC Pro 6G
Motherboard: ASRock B550 Taichi
Memory: Patriot Viper 4 Blackout DDR4-3600 64GB
Storage: ADATA SU750 1TB
Power: Corsair AX860i
Cooling: Noctua NH-U12A
Case: PrimoChill Praxis WetBench
Taking a look at CPU-Z we can see this memory is running at its XMP profile, operating at 3600 MHz with timings of 16-18-18-38 at 1.35V.
For testing we will run the memory at its stock or XMP profile settings using the below benchmarking software. We will then run the tests again our overclock of 3600 MHz. Below is a list of benchmarking software that we use.
– SiSoftware Sandra Memory Bandwidth Benchmark
– SiSoftware Sandra Cache & Memory Latency Benchmark
– SiSoftware Cache Bandwidth Benchmark
– AIDA64 Cache & Memory Benchmark
– 3DMark Fire Strike Physics test
Now let’s get to testing!

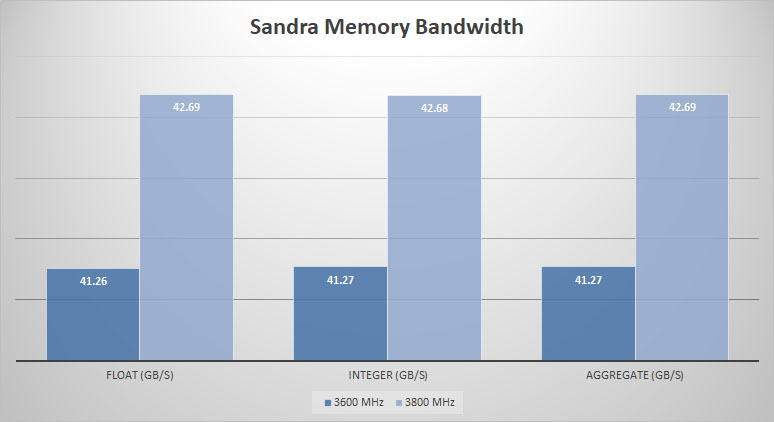

To start things off we have SiSoftware’s Sandra. The first test is the Memory Bandwidth benchmark. Higher scores are better here.

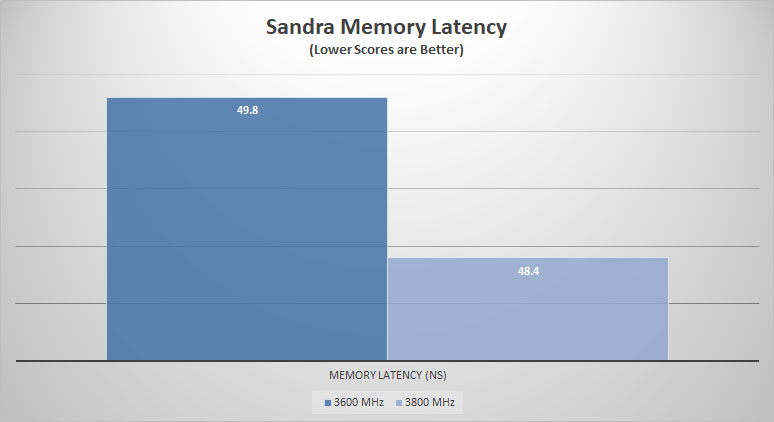

Next we have Sandra’s Cache & Memory Latency benchmark that will measure the memory kits latency. Lower scores are better here.

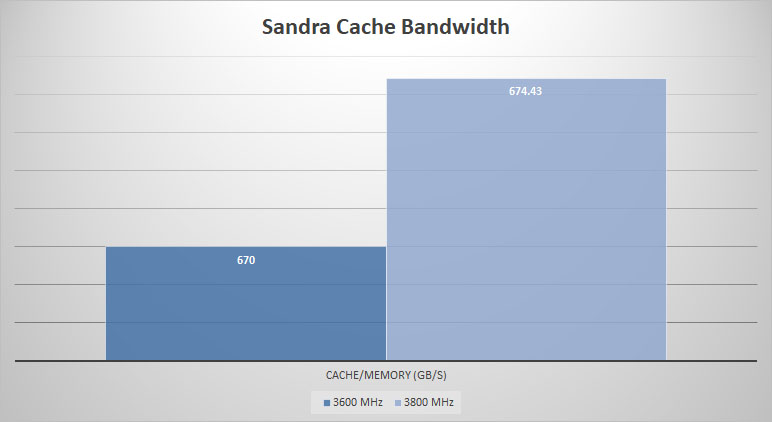

Our final Sandra test is the Cache bandwidth test. Higher scores are better here.

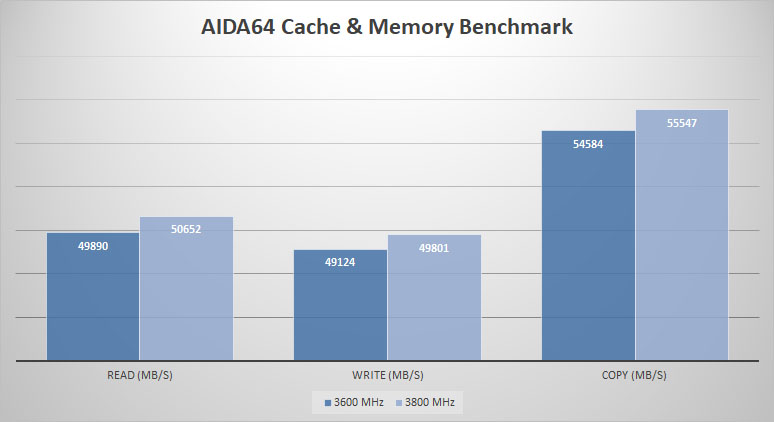

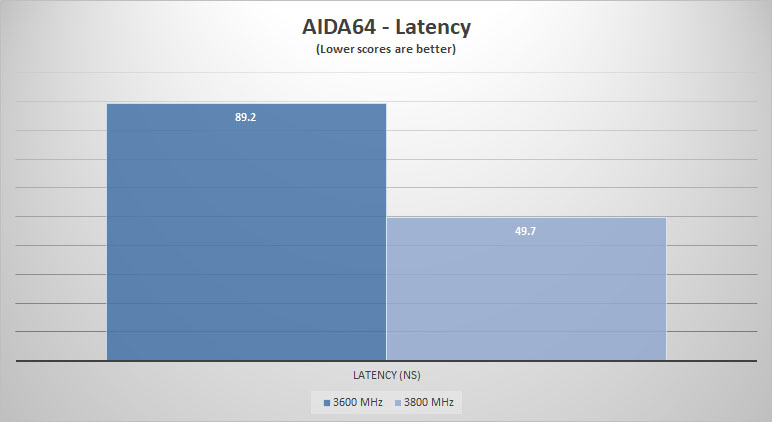

AIDA64 has a built in Cache & Memory benchmark that measures read, write, copy and memory latency. For the read, write and copy higher scores are better, for latency lower scores are better.

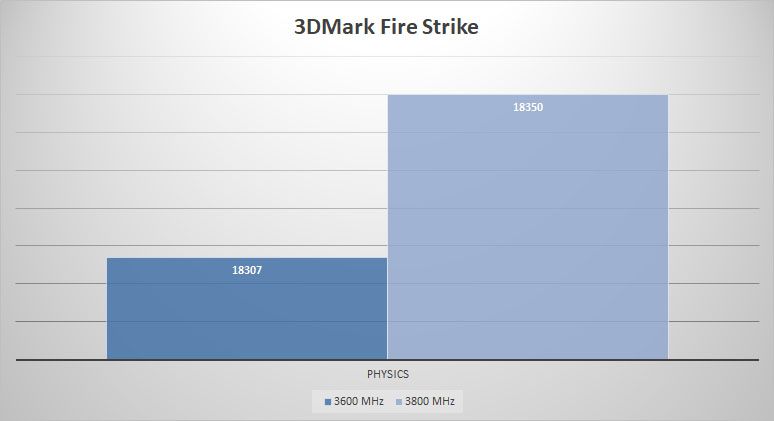

Finally we wrap things up with 3DMark’s Fire Strike benchmark. We will be taking the Physics score from our benchmark as it will change the most when you change memory speed. Again, higher scores are better here.
